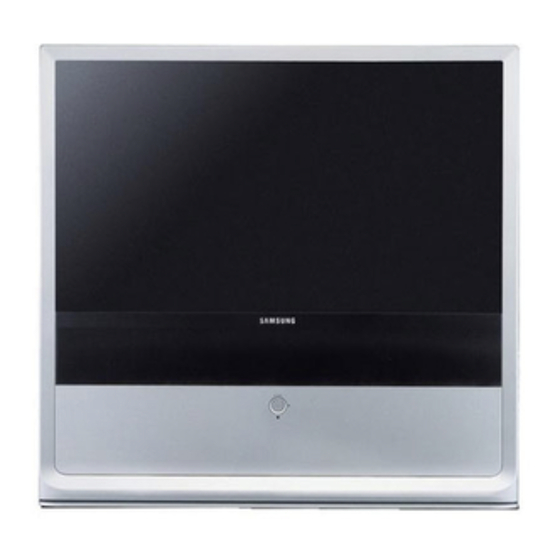

PROJECTION TV RECEIVER Chassis : P60B(N)_Omega-2 Model : SP43Q5HL1X/XAX SERVICE Manual PROJECTION TV RECEIVER CONTENTS Product Specification Alignment & Adjustment Troubleshooting Exploded View & Part List Electrical Part List PCB Diagram Schematic Diagram...
40.7 x 20.0 x 34.9 inches 44.0 x 21.8x 36.9 inches Weight 40.4 Kg / 89.1 lbs 49.0 Kg / 108.0 lbs 56.3 Kg / 124.1 lbs 76.0 Kg / 167.5 lbs 36.4 Kg / 80.2 lbs 39.5 Kg / 87.0 lbs Samsung Electronics...
Direction keys ◀ / ▶ 2-1-4 Cautions Regarding service Mode 1. Do not adjust the fixed attributes, only the adjustables. 2. For adjustments of RF and 1080i Modes, switch to the respective input source and proceed with the adjustments. Samsung Electronics...
Page 6
0 ~ 63 12 H Trapezium 0 ~ 63 13 Bow 0 ~ 63 14 Angle 0 ~ 63 15 V Position 0 ~ 63 16 CXA Left Blk 0 ~ 63 17 CXA Right Blk 0 ~ 63 Samsung Electronics...
Page 7
-63 ~ 63 12 H Trapezium -63 ~ 63 13 Bow -63 ~ 63 14 Angle -63 ~ 63 15 V Position -63 ~ 63 16 CXA Left Blk -63 ~ 63 17 CXA Right Blk -63 ~ 63 Samsung Electronics...
Page 8
12 NR Hight Ref (s) 0 ~ 127 13 NR Low Ref (s) 0 ~ 127 14 NR Hight Value (s) -128 ~ 127 15 NR Low Value (s) -128 ~ 127 16 NR Read M/S Read Data Samsung Electronics...
Page 13
11 DCE Gain 0 ~ 255 12 CTI Gain 0 ~ 15 13 DEP TH Cor 0 ~ 63 14 DEP OV Gain H 0 ~ 255 15 DEP R INT 0 ~ 127 16 CTE Gain 0 ~ 255 Samsung Electronics...
Page 14
12 No Sync Mute On ↔ Off 13 AGC On ↔ Off 14 Turbo Effect On ↔ Off 15 Burst Screen On ↔ Off 16 LNA On ↔ Off 17 Pixelshift 1 ~ 5, Off 18 PS Time(MIN) 1,30,60,Off 2-10 Samsung Electronics...
Page 15
Alignment & Adjustment 2-3 Screen Change (When adjusting I2C Bus Geometric items) V SIZE V SHIFT V LINEARITY V - S - CORRECTION H SIZE PIN PHASE PIN AMP H SHIFT V BOW V ANGLE Samsung Electronics 2-11...
Page 16
8. Select R-drive, G-drive, and B-drive by pressing the keys. 9. Adjust the high light with viewing the light side of the screen. 10. If necessary, redo screen adjustments and 6~9. 11. Press the Add key to exit. 2-12 Samsung Electronics...
Page 17
(Repeat if unsuccessful, varying the VR of the front Focus Pack.) ⑤ Perform steps 1~3 for the R and B Lenses. 3. Note Green determines picture quality; pay close attention for exact adjustment. < _ L1, L2 Fig. 2-2 Color Aberration Samsung Electronics 2-13...
Page 18
13. Adjust the Focus-pack VR for fine focusing. 14. Press the 7- digit button for a while, on the remote control, and the mode changes to the Convergence Adjustment mode. 15. Press the "S.MODE" Key on the remote control to return to normal viewing. 2-14 Samsung Electronics...
Page 23
(Backwards: Left or Up) RF mode Moves the Convergence Pattern to the left Save data after completing Convergence Adjustment Automatic Convergence Adjustment after completing Convergence Adjustments (Automatic Color Adjustment to compensate for the earth s magnetic field.) Samsung Electronics 2-19...
Page 24
14. "MUTE" Key : Move Cursor Forward Key Press to move the cursor right or down. 15. "∧,∨,+,-" Key : Convergence Picture Move Button Use the Channel button (∧,∨) to adjust Convergence Data up/down and use the Volume buttons (+, -) for left/right adjustment. 2-20 Samsung Electronics...
Page 25
White Cross on the background 5-435 ++++ (43Q5HL1) 43Q5HL1X (white cross) 47" (4741W) 4741WX White Cross on the background 5-472 ++++ (47Q2HL1) 47Q2HL1X (white cross) 52" (5241W) 5241WX White Cross on the background 5-522 ++++ (52Q2HL1) 52Q2HL1X (white cross) Samsung Electronics 2-21...
Page 26
4. Press R-MUTE "+100" key and B-MUTE "PRE-CH" key to mute out Red and Blue. Press G-SELECT "8" key to adjust the Green Color Convergence first. (For the first entrance, Green Color Convergence will automatically be selected.) 5. Press the "MUTE" key to move the cursor right, the "P.MODE" button to move the cursor left. 2-22 Samsung Electronics...
Page 27
7. For vertical moves, select "SOUREC" key and press "MUTE" key to move down, and "P.MODE" key to move down. Caution : Pressing the "SOUREC" key again will switch to horizontal movement. 8. Use the Line Move Key "4" for global shaping in the beginning stages of Convergence Adjustment. Moves Entire Line Samsung Electronics 2-23...
Page 28
Caution : The Cursor will move to the center and blink two times before it automatically moves back to its original position. Caution : After completing and saving the R, G and B Convergence Adjustment , the data should be saved by pressing the "SELF FOCUS" button before exiting Convergence Mode. 2-24 Samsung Electronics...
Page 29
1. After completing the Convergence Adjustment, press the Memory button "ADD/DEL" key to save the data and exit back to a black screen. Then enter Convergence Mode again to do the Automatic Color Adjustment by pressing the "Automatic Color Adjustment" button. Up / Down Left / Right Samsung Electronics 2-25...
3-1 Opening the Set and Replacing Assemblies 3-1-1 Replacing and Repairing Each Assembly (Opening the Back Cover) Remove all indicated screws on the rear side of the Set Repair or replace the required Assembly CG Module MAIN DY JACK Samsung Electronics...
Page 32
Troubleshooting 3-1-2 Replacing and Repairing the CRT-PCB (Opening the Rear Cover) Remove all indicated screws and open the Front Cover. Repair the frontal PCB-CRT or replace it after removing the attached connectors PCB-CRT R PCB-CRT G PCB-CRT B Samsung Electronics...
Page 33
Remove the screws indicated and detach the Top Cover Remove the Dust Cover that prevents dust from entering into the screen Before proceeding, disconnect all the DY and Connectors connected to the assembly. Remove the 4 corner screws from the CRT and replace the CRT Samsung Electronics...
Page 34
CN801 and CN802 on the SUB Board Normal Abnormal Abnormal Check the output terminal of CNZ02 (BV,BH,RV,RH,GV,GH) Normal Validate the H-BLK and V-BLK outputs of the MAIN Board Check the respective circuits regarding the symptoms Replace the Convergence Module Samsung Electronics...
Page 35
Check FD802S of the SUB Board Check IC601 Input Terminal Pin 5 Abnormal Normal Check the Sound Mute Circuit Check IC601 Input Terminal Pins 7 and 11 Normal Abnormal Check IC601 Check IC602 Input Terminals Normal Abnormal Check IC602 Check IC605 Input Terminals Samsung Electronics...
Page 36
Check CN501 Pins 1, 3, and 5 Normal Check IC501, 531, and 561 Abnormal Check the CN501 Connector Abnormal Normal Replace the CN501 Connector Check IC04 Input Terminal Pins 20, 21 and 22 Normal Check IC04 Abnormal Check IC03 Samsung Electronics...
Page 37
Troubleshooting Check the Heater (Abnormal) Abnormal Replace R513, 543 and 573 Normal Replace R513, 543 and 573 Abnormal Check CB504 Pin 5 of the CRT-PCB Check R464 Samsung Electronics...
Schematic Diagram 7. Schematic Diagram 7-1 MAIN-1 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 61
Schematic Diagram 7-2 MAIN-2 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 62
Schematic Diagram 7-3 MAIN-3 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 63
Schematic Diagram 7-4 MAIN-4 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 64
Schematic Diagram 7-5 MAIN-5 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 65
Schematic Diagram 7-6 MAIN-6 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 66
Schematic Diagram 7-7 MAIN-7 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 67
Schematic Diagram 7-8 Power/Deflection-1 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 68
Schematic Diagram 7-9 Power/Deflection-2 This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 69
Schematic Diagram 7-10 Power/Deflection-3 This Document can not be used without Samsung’s authorization. 7-10 Samsung Electronics...
Page 70
Schematic Diagram 7-11 Power/Deflection-4 This Document can not be used without Samsung’s authorization. Samsung Electronics 7-11...
Page 71
Schematic Diagram 7-12 Convergence-1 This Document can not be used without Samsung’s authorization. 7-12 Samsung Electronics...
Page 72
Schematic Diagram 7-13 Convergence-2 This Document can not be used without Samsung’s authorization. Samsung Electronics 7-13...
Page 73
Schematic Diagram 7-14 CRT This Document can not be used without Samsung’s authorization. 7-14 Samsung Electronics...
Page 74
Schematic Diagram 7-15 Line-Filter This Document can not be used without Samsung’s authorization. Samsung Electronics 7-15...
Page 75
Schematic Diagram 7-16 VM This Document can not be used without Samsung’s authorization. 7-16 Samsung Electronics...
Page 76
Schematic Diagram 7-17 DY-Jack 7-18 Side-AV This Document can not be used without Samsung’s authorization. This Document can not be used without Samsung’s authorization. Samsung Electronics 7-17...
Page 77
Schematic Diagram 7-19 Control This Document can not be used without Samsung’s authorization. 7-18 Samsung Electronics...
