Sealey LED700R Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. GENERAL
Ensure the lamp is fully charged before initial use.
9
DO NOT turn the lamp on when it is being charged.
8
DO NOT shine directly into your, other person's or an animal's eyes.
8
DO NOT allow children to use the lamp.
8
DO NOT handle or move the lamp whilst it is being charged.
8
DO NOT use the lamp if you suspect that the battery, the lamp casing or the cable is damaged. Consult your Sealey Stockist.
8
DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery,
8
subsequently recharge the battery at least once every six months of non-use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT Attempt to open, dismantle, modify or service the battery pack.
8
DO NOT Crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT Expose to temperatures above 40°C or below -10°C.
8
DO NOT Expose to direct sunlight for long periods of time.
8
DO NOT Expose to moisture.
8
WARNING! Do not place the lamp face down while in use.
‰
Replace only with the battery pack designated for this product.
9
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, wash thoroughly with soap and water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.
2. INTRODUCTION
Incredibly tough aluminium housing with sturdy handle which can rotate through 360°. Virtually indestructible and one of the most
durable floodlights available. Also fitted with a strong magnet, making it simple and easy to direct up to 700 lumens of light. Three light
output settings 100/350/700 lumens. Features three LED battery level indicator. Fitted with a high quality 3.7V 2.6Ah lithium-ion battery.
Charges via a USB Type-C lead. (Supplied with USB Type-C Cable).
3. SPECIFICATION
Model No's: .................................. LED700P,LED700PR
Battery: ....................................... 3.7V 2.6Ah Lithium-ion
Charging Time: ...........................................................4hr
IP Rating: .................................................................IP65
LED Type: ......................................................... 7W COB
Length: .................................................................. 95mm
Lumen Output: ................High/Mid/Low): 700/350/100lm
Operating Time: ....................... (High/Mid/Low): 2/4/10hr
The battery fitted to this lamp is considered to be a consumable item
and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for
a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly
conditioned, its capacity will diminish. Under these circumstances we
will not replace the battery regardless of whether it is less than one
year old.
NOTE: The lithium battery does not suffer from memory effect and
once fully charged may be stored for up to six months without another
charge.
© Jack Sealey Limited

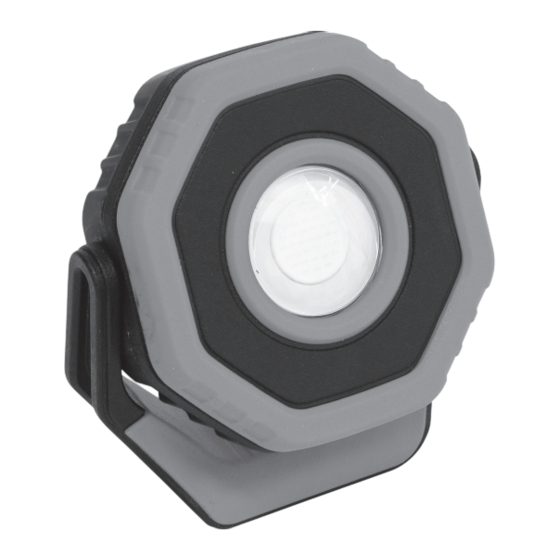

RECHARGEABLE POCKET FLOODLIGHT
WITH MAGNET 360° 7W COB LED
LED700P, LED700R
MODEL NO:
Original Language Version
FIG.1
LED700P,R Issue 3 (3) 22/08/23
