We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• WARNING: During use the
appliance and its accessible
parts become very hot. Keep
children well away from the
appliance.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
91477A887/A
3
3
7
8
8
8
8
8
9
9
9
9
9
10
10
10
10
11
11
12
12
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of
12
13
13
14
16
17
18
18
18
19
19
20
21
21
22
22
25
25
28
28
PRECAUTIONS - 3
Advertisement
Table of Contents
Related Manuals for Smeg SSA91MAX2
Summary of Contents for Smeg SSA91MAX2
-
Page 1: Table Of Contents
Instructions for the installer Preliminary operations We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com PRECAUTIONS General safety instructions used by children aged 8 years... - Page 2 8 away from the appliance hot during use. Take care never when it is in use. to touch the heating elements • Cleaning and maintenance inside the oven(s). must not be carried out by • Do not insert pointed metal unsupervised children.
- Page 3 • DO NOT USE AEROSOLS IN for it to be replaced in order to THE VICINITY OF THIS avoid possible hazards. APPLIANCE WHILST IT IS IN • WARNING: A gas cooking USE. appliance produces heat, • DO NOT MODIFY THIS humidity and combustion APPLIANCE.
- Page 4 prevent them from being • If you wish to use greaseproof removed must face downwards paper, place it so that it will not and towards the back of the interfere with the hot air oven. circulation inside the oven. • Do not use the open door to rest pans or trays on the internal glass pane.
-
Page 5: Installation
when fitting. are shown on the gas setting • Avoid exerting too much label. pressure on the door when • Have the gas connection open. performed by authorised • Take care that no objects are personnel. stuck in the doors. •... -
Page 6: Appliance Purpose
• The tightening torque of the entirety and within the user's reach for the whole working life of the appliance. screws of the terminal supply • Read this user manual carefully before using wires must be 1.5 - 2 Nm. the appliance. -
Page 7: Information For European Control Bodies
light sources. Plastic packaging Danger of suffocation • Do not let children play with the plastic bags. Information for European Control Bodies • The light sources contained in the appliance Fan forced mode are declared suitable for operation at the ECO function used to define the energy ambient temperature ≥300°C and intended efficiency class complies with the specifications for use in high temperature applications such... -
Page 8: Description

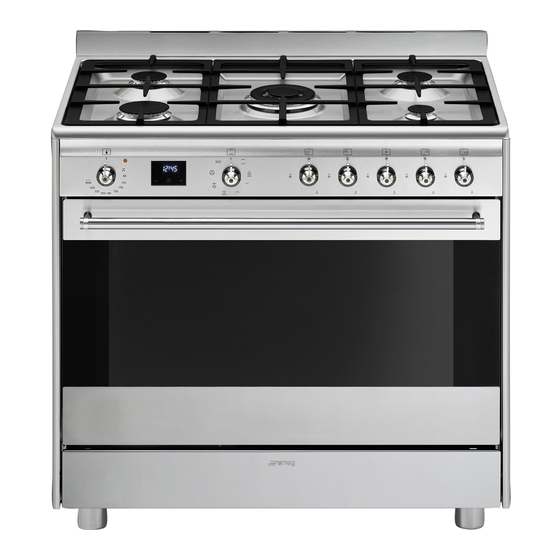

DESCRIPTION General description 1 Upstand 2 Hob 3 Control panel 4 Inside lights 5 Seal 6 Door 7 Fans 8 Storage compartment Frame shelf AUX = Auxiliary Burner SR = Semi-rapid Burner R = Rapid Burner UR = Ultra-Rapid Burner Control panel 9 Temperature knob maximum setting. -
Page 9: Other Parts
Accessories reaches the set temperature. It flashes regularly to indicate that the temperature set inside the • Not all accessories are available on some oven is kept constant. models. 11 Digital programmer • The accessories intended to come into contact with food are made of materials that For displaying the current time, setting comply with the provisions of current programmed cooking operations and the... -
Page 10: Use
Tray rack they are placed properly. Useful for supporting containers with food during cooking. Trivets and reduction pan supports The trivets and reduction pan supports must be placed on the hob pan supports. Make sure Preliminary operations guides until they come to a complete stop. •... -
Page 11: Using The Hob
the food which is being cooked. over. Using the hob Burner Pan diameter 12 - 14 cm All the appliance’s control and monitoring devices are located together on the front panel. 16 - 24 cm The burner controlled by each knob is shown 18 - 26 cm next to the knob. -
Page 12: Digital Programmer
SMALL GRILL VAPOR CLEAN (on some models only) Using only the heat released from the This function facilitates cleaning using central element, this function allows you the steam produced by a small amount to grill small portions of meat and fish for of water poured onto the depression on making kebabs, toasted sandwiches the bottom. - Page 13 Timed cooking 3. Press the clock key again. The display Timed cooking is the function which will show the digits and the text allows a cooking operation to be in sequence, while the symbol started and then ended after a specific flashes (for example, the current time is length of time set by the user.
-
Page 14: Cooking Advice
Minute minder timer Cooking advice The minute minder timer does not stop General advice the cooking operation but rather informs • Use a fan assisted function to achieve the user when the set time has run out. consistent cooking at several levels. •... -
Page 15: Cooking Information Table
moulds/ovenware at the centre of the racks Advice for defrosting and proving and make sure that their width/diameter • Place frozen foods without their packaging does not exceed 30 cm. in a lidless container on the first shelf of the •... -
Page 16: Cleaning And Maintenance
Weight Temp. Time Food Function Shelf (Kg) (°C) (minutes) Pizza TURBO/CIRCULAIRE 8 - 9 Bread CIRCULAIRE 190 - 200 25 - 30 Focaccia TURBO/CIRCULAIRE 180 - 190 20 - 25 Bundt cake CIRCULAIRE 55 - 60 Tart CIRCULAIRE 35 - 40 Ricotta cake CIRCULAIRE 160 - 170... -
Page 17: Knobs
correctly positioned in their housings with their 2. Grasp the door on both sides with both respective burner caps. hands, lift it forming an angle of around 30° and remove it. Igniters and thermocouples For correct operation the igniters and thermocouples must always be perfectly clean. -
Page 18: Cleaning The Oven Cavity
internal pane of glass from the front (2) to 6. When you have finished cleaning, reinsert remove it from the door. the intermediate glass pane in its housing in the door. 4. Remove the intermediate glass pane by lifting it upwards. 7. -
Page 19: Vapor Clean (On Some Models Only)
• Pull the frame towards the inside of the oven detergent. cavity to unhook it from its groove A, then Vapor Clean cycle setting slide it out of the seats B at the back. 1. Turn the functions knob to symbol (where present). -
Page 20: Installation
1. Completely remove all accessories from Do not touch the halogen light bulb inside the oven. directly with your fingers, use an 2. Remove the rack/tray support frames. insulating material. 3. Use a tool (e.g. a spoon) to remove the bulb cover. - Page 21 walls (max. 50 °C) comply with the applicable standard. • The hose is not under traction or tension and has no kinks or twists • The hose is not in contact with sharp objects or sharp corners • If the hose is not perfectly airtight and leaks gas, do not try to repair it;...
- Page 22 guidelines set out in the standards in force. Extraction with a single natural draught chimney The supply pressure must comply with the values indicated in the “Burner and nozzle Extraction with a single chimney with characteristics table”. extractor fan Room ventilation Extraction directly outdoors with wall- or window-mounted extractor fan The appliance should be installed in rooms that...
-
Page 23: Burner And Nozzle Characteristics Tables
town gas stable. Turn the knob rapidly from the maximum to the minimum setting: The flame should not go out. Repeat the operation on all gas cocks. Adjusting the minimum setting for LPG Tighten the screw located at the side of the cock spindle clockwise all the way. - Page 24 If a hood is installed above the Position of electrical connection appliance, refer to the hood instructions manual to make sure the correct Fastening to the wall clearance is left. Appliance overall dimensions The symbols above indicate the danger if the anti-tip are not installed devices and the importance of their correct installation.
- Page 25 4. Align the base of the hook on the fastening 7. Move the bracket onto the wall and mark bracket with the base of the slot on the wall the position of the holes to be drilled in the fastening plate. wall.
-
Page 26: Electrical Connection
the floor (2). Do not remove this plate for any reason. The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires. The appliance can work in the following modes: 220-240 V 1N~ 3 x 1.5 mm ²... - Page 27 burners together. • If the appliance does not work correctly after having carried out all the checks, contact your local Authorised Service Centre. • Once the appliance has been installed, please explain to the user how to use it correctly. 91477A887/A INSTALLATION - 29...
