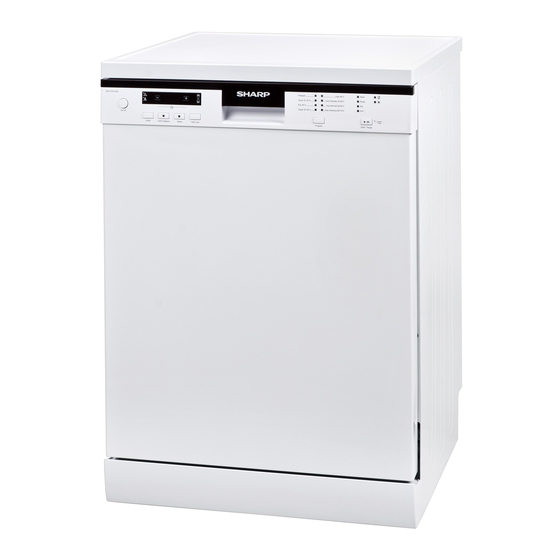

- Page 1 User Manual Dishwasher DISHWASHER User Manual QW-T21F472W-EU If you want to view advanced functions for your product, you can do so by visiting www.sharphomeappliances.com...
-
Page 2: Table Of Contents
CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Fitting the machine undercounter... -
Page 3: Chapter-1: Explanation Of Product
CHAPTER -1: EXPLANATION OF PRODUCT 1. Worktop 2. Upper basket with racks 3. Upper spray arm 4. Lower basket 5. Lower spray arm 6. Filters 7. Rating plate 8. Control Panel 9. Detergent and rinse-aid dispenser 10. Cutlery basket 11. Salt dispenser 12. -
Page 4: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 12 place settings Height 850 mm Height (without worktop) 820 mm Width 598 mm Depth 598 mm Net Weight 46 kg Electricity input 220-240 V, 50 Hz Total Power 2200 W Heating Power 2000 W Pump Power 100 W... -
Page 5: Chapter-2: Safety Information And Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 6 • Place knives and other sharp-ended objects in the cutlery basket in bladedown position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
-
Page 7: Recommendations
CHAPTER -3: INSTALLING THE MACHINE Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only when necessary. •... -
Page 8: Water Connections
CHAPTER -3: INSTALLING THE MACHINE If the door of machine does not close properly, check if the machine is stable on the floor if not, adjust the feet and ensure its stable position. Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing,... -
Page 9: Water Outlet Hose
CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, SHARP will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. -
Page 10: Fitting The Machine Undercounter
CHAPTER -3: INSTALLING THE MACHINE For safety purposes, we recommend that you disconnect the plug when the machine is not going to be used for an extended period of time. In order avoid electric shocks, do not unplug when your hands are wet. When disconnecting your machine from the mains supply, always pull from the plug. - Page 11 CHAPTER -3: INSTALLING THE MACHINE Adjust the machine’s feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product Without Insulation With Insulation All Product For 2nd Basket For 3rd Basket Height 820 mm...
-
Page 12: Prior To Using The Machine
CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 13: Adjusting Salt Consumption
CHAPTER -4: PREPARING THE MACHINE FOR USE Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21 L3 is seen on display. -
Page 14: Combined Detergent
CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficent results under certain conditions only. Points to consider when using this type of products: •... -
Page 15: Chapter-5: Loading Your Dishwasher
The upper basket is for thin and narrow items. You are recommended to use the cutlery basket in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets. - Page 16 CHAPTER-5: LOADING YOUR DISHWASHER The movable cutlery basket can slide between the front and rear wires of the bottom basket. EN- 17...
-
Page 17: Alternative Basket Loads
CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. -
Page 18: Chapter -6: Programme Descriptions
CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Programme Pre-washing Auto Delicate Auto Normal Auto Intense Quick 30 names and 30-50°C 50-60°C 60-70°C min. 40°C temperatures Type of food Fresh less dirty, Detects contamination level of dishes and sets Fresh coffee, waste coffee,milk, tea temperature and amount of washing water and... - Page 19 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Programme Eco 50° C **Super 50 min. Daily 65° C names and temperatures Type of food Fresh coffee, Tarried soup, sauce, Fresh coffee, milk, waste milk, pastry, egg, rice, potato tea, cold meat, tea, cold meat, and meals cooked in vegetables...
-
Page 20: Chapter -7: Switching On The Machine And Selecting Aprogramme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 1.) ON/OFF Button When the ON/OFF button is pressed, the machine powers up and the Start/Standby light comes on. 2.) Extra Rinse / Dry Button You can add extra rinsing or drying functions into the selected program by using this button. If you select the extra rinsing function , the light for extra rinsing on the upper left - hand side of the indicator will come on , and thus washing-rinsing steps will be added into the selected program. - Page 21 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Thus, washing up shall be done only on the lower basket of your machine. In using this feature,make sure that there are no dishes in the upper basket. Note : If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program.
-
Page 22: Switching On The Machine
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/ Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selector button. -
Page 23: Changing A Programme With Resetting
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Hold Start/Pause button pressed for approx. 3 sec. until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled. -
Page 24: Chapter-8: Maintenance And Cleaning
CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. -
Page 25: Chapter-9: Failure Codes And What To Do İn Case Of Failure
If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp helpdesk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released. -
Page 26: Chapter-10: Practical And Useful Information
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 27 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
- Page 28 Waterside Drive, Langley, Berkshire, SL3 6EZ, UNITED KINGDOM...
