Summary of Contents for Citizen AT8260-18A
- Page 1 INSTRUCTION MANUAL...
- Page 2 Thank you for your purchase of this Citizen watch. Before using the watch, read this instruction manual carefully to ensure correct use. After reading the manual, store it in a safe place for future reference. Visit the Citizen website (http://www.citizenwatch-global.com/) to view visual guides for operation of your watch.
- Page 3 Safety precautions (IMPORTANT) This manual contains instructions that should be strictly followed at all times not only for optimal use, but to prevent any injuries to yourself, other persons or property. We encourage you to read the entire booklet (especially, pages 60 to 71) and understand the meaning of the following symbols: ■...
- Page 4 Safety precautions (IMPORTANT) ■ Important instructions are categorized and depicted in this manual as follows: Warning (caution) symbol followed by instructions that should be followed or precautions that should be observed. Warning (caution) symbol followed by prohibited matters.
- Page 5 Before using this watch After unpacking, the following must be done before using the watch: ◆ Checking the power reserve Page 17 Check the charge level of the watch. ◆ Setting the World Time Page 22 Select the city for which you want to indicate the time and date. ◆...
- Page 6 Before using this watch ◆ Protective Stickers Be sure to remove any protective stickers that may be on your watch (case back, band, clasp, etc.). Otherwise, perspiration or moisture may enter the gaps between the protective stickers and the parts, which may result in a skin rash and/or corrosion of the metal parts.
- Page 7 Before using this watch ◆ How to use a specially designed crown/push button Some models are equipped with a specially designed crown and/or push button to prevent accidental operation.Please refer to the following chart for use. Screw down crown and screw down push button Unlock the crown prior to operate your watch.
- Page 8 Before using this watch Recessed buttons Press the button with a narrow-tipped object such as a wooden toothpick.
-
Page 9: Table Of Contents
Table of contents Features ……………………………………………………………… 10 Component identification ………………………………………… 11 Charging your watch ………………………………………………… 12 Using the chronograph ……………………………………………… 20 Setting the World Time ……………………………………………… 22 Setting Summer Time ……………………………………………… 26 Notes on the time signal reception ………………………………… 33 Checking the time signal reception………………………………… 41 Receiving the time signal manually (On demand reception) ……... - Page 10 Table of contents Troubleshooting …………………………………………………… 54 Eco-Drive watch handling precautions …………………………… 60 Water resistance …………………………………………………… 64 Precautionary items and usage limitations ……………………… 66 Specifications ………………………………………………………… 72...
-
Page 11: Features
"Perpetual calendar" No need for date correction at the end of each month. The leap year is also updated automatically. "World Time" Easy to see the time and calendar of cities all over the world. * "Eco-Drive" is Citizen's original technology. -
Page 12: Component Identification

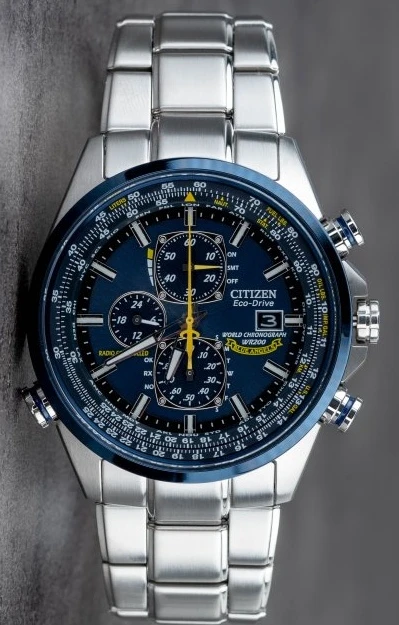

Component identification Summer Time Chronograph minute indication (ON/OFF) hand Minute hand Power reserve level Upper right button (B) Hour hand Date indication 24-hour hand Crown Reception result indication (OK/RX/NO) Lower right Second hand or button (A) chronograph second Day of the week hand indication City indication... -
Page 13: Charging Your Watch
Charging your watch This watch has a rechargeable cell which is charged by exposing the dial to light, such as direct sunlight or fluorescent lamps. After taking off the watch, put it in a location where the dial is exposed to bright light, such as by a window. - Page 14 Charging your watch • If the watch is obscured from light by long sleeves frequently, supplemental charging may be needed to ensure continual operation. • Do not charge the watch at high temperature (about 60°C/140°F or higher).
- Page 15 Charging your watch ◆ When the watch reaches a low charge state (insufficient charge warning function) When the power reserve becomes low, the second hand moves once every two seconds. This is the insufficient charge warning function. Be sure to fully charge your watch.
- Page 16 Charging your watch ◆ Charging time by environment Below are the approximate times required for charging when exposing the watch dial to light continuously. Please use this table as a reference only. Charging time (approx.) Illuminance To start working To become fully Environment To work for one (lx)
- Page 17 Charging your watch ◆ Power save feature When the watch is not exposed to light for 30 minutes or longer, such as when you store it in a dark place, the second hand automatically stops to save the power. However, the watch continues to work internally. •...
- Page 18 Charging your watch ◆ Checking the power reserve Check the current power reserve. 1. Ensure that the crown is in position 0 . 2. Press the lower right button Ⓐ . The chronograph minute hand moves to indicate the power reserve. •...
- Page 19 Charging your watch The power reserve level Level Power reserve level Approx. 180 to 130 days Approx. 130 to 30 days Approx. 30 to 2 days Approx. 2 days Power reserve Power reserve is Power reserve is Power reserve is Approximate is sufficient for sufficient for all...
- Page 20 Charging your watch • When the power reserve is at level 1 or 0, the chronograph minute hand always indicates the power reserve level. • When the power reserve is at level 0, the current time and date are indicated. However, you cannot configure or confirm settings, or operate the chronograph.
-
Page 21: Using The Chronograph
Using the chronograph The chronograph can measure up to 60 minutes in units of 1/20 seconds. 1. Ensure that the crown is in position 0 . Chronograph minute hand 2. Press the upper right button Ⓑ . The watch enters the chronograph mode. Chronograph •... - Page 22 Using the chronograph 5. Press the lower right button Ⓐ to reset the measured time. • Make sure to reset the time after finishing measurement. 6. Press the lower right button Ⓐ again to return to current time indication. • The current time indication will resume automatically when leaving the watch for approx.
-
Page 23: Setting The World Time
Setting the World Time The watch can indicate the time and date of any of the 26 cities in the world you choose. • When using the watch in an area not listed in the table below, select and set the city with the same time difference. - Page 24 Setting the World Time ◆ City indication table Abbreviation City indication or second hand position Time zone Signal station LONDON 0 sec. Germany PARIS 2 sec. ATHENS 4 sec. ♦ RIYADH 7 sec. Germany DUBAI 9 sec. KARACHI 11 sec. DELHI 14 sec.
- Page 25 Setting the World Time Setting the World Time Abbreviation City indication or second hand position Time zone Signal station TOKYO 23 sec. Japan ADELAIDE 25 sec. +9.5 SYDNEY 28 sec. ♦ Japan NOUMEA 30 sec. AUCKLAND 32 sec. MIDWAY ISLANDS 35 sec.
- Page 26 Setting the World Time Abbreviation City indication or second hand position Time zone Signal station SANTIAGO 51 sec. −4 ♦ RIO DE JANEIRO 53 sec. −3 FERNANDO DE NORONHA 56 sec. −2 ♦ Germany AZORES 58 sec. −1 • The city indications displayed on the watch may be different, depending on the model.
-
Page 27: Setting Summer Time
Setting Summer Time ◆ Summer time Summer Time is a system adopted in some countries/areas to gain an extra hour of daylight during summer by advancing clocks by one hour. In an area where the summer time is in effect, the time signal contains a summer time check signal. When receiving the summer time check signal, this watch automatically enables/ disables (turns ON/OFF) the Summer Time setting. - Page 28 Setting Summer Time ◆ Checking the time currently shown 1. Pull the crown out to position . Summer Time indication (ON/OFF) The second hand indicates the current city (Chronograph minute hand) setting; the chronograph minute hand indicates the summer time ON/OFF setting; and the chronograph 1/20 second hand indicates the summer time auto/manual setting.
- Page 29 Setting Summer Time Summer Time indication (ON/OFF) Auto/Manual indication Description (Chronograph minute hand) (Chronograph 1/20 second hand) Enable Summer Time(ON) Automatic setting (12 o’clock Automatically switch between Summer Time direction) and Standard Time by receiving the signal. • When a summer time check signal is received, the summer time ON/ OFF setting is changed.
- Page 30 Setting Summer Time To automatically Set the auto/manual enable Summer setting to auto (the watch Time when using will automatically change the watch in an area the summer time ON/OFF where the time signal setting when receiving a can be received: summer time check signal.) To enable Summer Turn the summer time...
- Page 31 Setting Summer Time ◆ Switching ON/OFF of Summer Time 1. Pull the crown out to position . Ⓑ The chronograph minute hand indicates the current summer time ON/OFF setting. 2. Press the upper right button Ⓑ to switch the summer time setting.
- Page 32 Setting Summer Time ◆ Auto/manual switching of Summer Time 1. Pull the crown out to position . Ⓑ The chronograph 1/20 second hand indicates the current auto/manual setting. 2. Press and hold the lower right button Ⓐ for two or more seconds. Each time you hold down the lower right button Ⓐ...
- Page 33 Setting Summer Time ◆ The time shown for each city The watch shows and memorizes Summer Time/standard time in common for the following cities/time differences in each area so you do not need to change them for each city/time differences. •...
-
Page 34: Notes On The Time Signal Reception
Notes on the time signal reception There are three ways to receive the time signal: The second hand indicates the reception result (OK/NO). (See page 41) Methods Explanations Automatic Receives the signal at 2:00 a.m. every day. If reception is unsuccessful, the reception watch tries to receive at 3:00 a.m. - Page 35 Notes on the time signal reception ◆ When receiving the time signal Remove the watch and place it on a stable surface where it can receive the signal better, such as next to a window. • The reception antenna is located at the 9:00 position of the watch.
- Page 36 Notes on the time signal reception ◆ Note on the time signal This watch receives the time signal from one of the five signal stations located in four regions, and automatically corrects the time and date. The receivable signal stations are listed as follows: Kind of the Signal stations time signal...
- Page 37 Notes on the time signal reception JJY (Japan): JJY (Japan): Approx. 1,500km Approx. 2,000 km Fukushima station Kyushu station...
- Page 38 Notes on the time signal reception WWVB (USA): Approx. 3,000km Fort Collins station...
- Page 39 Notes on the time signal reception DCF77 (Germany): BPC (China): Approx. 1,500km Approx. 1,500km Mainflingen station Shangqiu station...
- Page 40 Notes on the time signal reception ◆ Poor reception areas It may be difficult to receive the time signal properly under certain environmental conditions or in areas susceptible to radio noise. • Extremely hot or cold locations • Near high-tension electrical lines, railway overhead wires or communication facilities...
- Page 41 Notes on the time signal reception ◆ When signal reception is poor High-tension electrical lines or other structures near your house may block the path to the signal station. This may result in a poor environment for receiving the time signal. With reference to pages 36 to 38, search for a better place for reception.
-
Page 42: Checking The Time Signal Reception
Checking the time signal reception Check the result of the last signal reception. 1. Ensure that the crown is in position 0 . 2. Press the lower right button Ⓐ . The chronograph 1/20 second hand indicates the signal reception result. •... - Page 43 Checking the time signal reception ◆ Time signal reception result Indication Result Reception has failed. Reception has The time and data/ Meaning Receiving succeeded. calendar have not been corrected. • For details on time signal reception, see page 33.
-
Page 44: Receiving The Time Signal Manually (On Demand Reception)
Receiving the time signal manually (On demand reception) You can adjust the watch by receiving the time signal any time when the time and date are not correct or the reception result is "NO." • The signal station is different depending on the city set. - Page 45 Receiving the time signal manually (On demand reception) • The watch will not receive the time signal when in a low charge state as indicated by the second hand moving in two second increments (the insufficient charge warning). • If the current location is different from the city you set, the watch will not receive the time signal.
-
Page 46: Adjusting The Time/Calendar Manually
Adjusting the time/calendar manually Manually adjust the time/calendar when the watch cannot receive the time signal. Ⓑ 1. Pull the crown out to position . 2. Press and hold the upper right button Ⓑ for two or more seconds. The second hand moves to the 30-second position and the chronograph minute hand moves to the 60-minute position. - Page 47 Adjusting the time/calendar manually ② 4. Press the upper right button Ⓑ to select the Ⓑ correction target. Each time you press the upper right button Ⓑ , the correction target changes as follows and the corresponding hand slightly moves. ①...
- Page 48 Adjusting the time/calendar manually 5. Rotate the crown to adjust each setting. • If you spin the crown quickly, the hands for the time and date will move continuously. To slow down and stop them, slightly rotate the crown. • To move the date forward or backward by one day, slightly rotate the crown. •...
- Page 49 Adjusting the time/calendar manually ◆ Month and year indications The number of years and months since the leap year is December indicated by second marks. [Month] January December: between 12:00 and 01:00 between 01:00 and 02:00 January: February: between 02:00 and 03:00 [Year] Leap year: February...
- Page 50 Adjusting the time/calendar manually You can get the actual year from the number of years passed from the leap year by referring to the following table: Indication of the second hand Passed year Year Hour marker Leap year 2020, 2024, 2028 1st min.
-
Page 51: Checking And Correcting The Current Reference Position
Checking and correcting the current reference position ◆ What is the reference position? The base position for all the hands to indicate the time and date. If the reference position is not at the correct position, the time and functions are not indicated correctly. - Page 52 Checking and correcting the current reference position ◆ Checking and correcting the current reference position 1. Ensure that the crown is in position 0 . Ⓑ 2. Press and hold the upper right button Ⓑ for ten seconds. All hands and the date indicator move to indicate the current reference position.
- Page 53 Checking and correcting the current reference position ④ 4. Press the upper right button Ⓑ to select the Ⓑ correction target. Each time you press the upper right button Ⓑ , the correction target changes as follows and the corresponding hand slightly moves. ①...
- Page 54 Checking and correcting the current reference position 5. Rotate the crown to correct the reference position of the active hand/ indication. • When you rotate the crown quickly, each hand will move continuously. To slow down and stop them, slightly rotate the crown. 6.
-
Page 55: Troubleshooting
Troubleshooting If you have a problem with your watch, check the table below. Problems with time signal reception. Symptoms Remedies Page Push the crown in to position . — Avoid things likely to interfere with the time signal and place the watch with the 9:00 position facing toward 34, 39 the station. - Page 56 Troubleshooting The hands do not work properly. Symptoms Remedies Page The hands move in an Stop the chronograph. unexpected direction. The second hand moves Charge the watch. once every two seconds. Push the crown in to position . — Charge the watch by exposing it to direct sunlight until All hands stop moving.
- Page 57 Troubleshooting The time and/or date is incorrect. Symptoms Remedies Page Check the city setting. Change the summer time setting. The time and/or date is Check and correct the current reference position. incorrect. Receive the time signal to adjust the time and date. Set the time and date manually.
- Page 58 Troubleshooting Others Symptoms Remedies Page Charge the watch by exposing it to direct The hands do not move sunlight for five to six hours. If the problem even if the watch is is not solved after charging, contact the charged. Authorized Service Center or the store where you purchased your watch.
- Page 59 Troubleshooting ◆ All Reset When the watch does not work properly, you can reset all the settings. If the power reserve is insufficient, charge the watch first. Check before performing All Reset. After performing All Reset, you need to configure all the settings again. Set the watch again by following the procedures below.
- Page 60 Troubleshooting ◆ Performing All Reset Perform this operation after checking the contents of the previous page in this manual. 1. Pull the crown out to position . Ⓑ 2. Hold down both the lower right button Ⓐ and the upper right button Ⓑ...
-
Page 61: Eco-Drive Watch Handling Precautions
Eco-Drive watch handling precautions <Always Make Sure to Recharge Frequently> • Please note that if you wear long sleeves, the watch may stop as a result of being covered by your sleeve and blocked from the light. • When you take off the watch, try to place it in as bright a location as possible. - Page 62 Eco-Drive watch handling precautions CAUTION Recharging Precautions • Do not charge the watch at a high temperature (about 60°C/140°F or higher) as doing so may cause the movement to malfunction. Examples: • Charging the watch too close to a light source which generates a large amount of heat such as an incandescent lamp or halogen lamp.
- Page 63 Eco-Drive watch handling precautions <Replacement of Rechargeable Cell> • This watch utilizes a special rechargeable cell that does not require regular replacement. However power consumption may increase after using the watch for a number of years due to wear of internal components and deterioration of oils. This may cause stored power to be depleted at a faster rate.
- Page 64 Eco-Drive watch handling precautions WARNING Use Only the Specified Battery • Never use a battery other than the rechargeable cell specified for use in this watch. Although the watch structure is designed so that it will not operate when another type of battery is installed, if a silver battery or other type of battery is installed in the watch and the watch is recharged, there is the risk of overcharging which may cause the battery to rupture.
-
Page 65: Water Resistance
Water resistance WARNING Water Resistance • Refer to the watch dial and the case back for the indication of the water resistance of your watch. The following chart provides examples of use for reference to ensure that your watch is used properly. - Page 66 Water resistance • Water resistance for daily use (to 3 atmospheres) means the watch is water resistant for occasional accidental splashing. • Upgraded water resistance for daily use (to 5 atmospheres) means that the watch may be worn while swimming, but is not to worn while skin diving. •...
-
Page 67: Precautionary Items And Usage Limitations
Precautionary items and usage limitations CAUTION To Avoid Injury • Be particularly careful when wearing your watch while holding a small child, to avoid injury. • Be particularly careful when engaged in strenuous exercise or work, to avoid injury to yourself and others. - Page 68 Precautionary items and usage limitations • Even if your watch has a high level of water resistance, please be careful of the following. • If your watch is immersed in sea water, rinse thoroughly with fresh water and wipe with a dry cloth.
- Page 69 Precautionary items and usage limitations • Do not wear the band too tightly. Try to leave enough space between the band and your skin to allow adequate ventilation. • The rubber (urethane) band may be stained by dyes or soil present in or on clothing or other accessories.
- Page 70 Precautionary items and usage limitations <Magnetism> • Analog quartz watches are powered by a step motor that uses a magnet. Subjecting the watch to strong magnetism from the outside can cause the motor to operate improperly and prevent the watch from keeping time accurately.
- Page 71 Precautionary items and usage limitations <Protective Stickers> • Be sure to remove any protective stickers that may be on your watch (case back, band, clasp, etc.). Otherwise, perspiration or moisture may enter the gaps between the protective stickers and the parts, which may result in a skin rash and/or corrosion of the metal parts.
- Page 72 Precautionary items and usage limitations Caring for Your Watch • Wipe any dirt or moisture such as perspiration from the case and crystal with a soft cloth. • For a metallic, plastic or rubber (urethane) watchband, wash any dirt off with water. Remove the small amounts of dirt trapped between the crevices of the metallic band with a soft brush.
-
Page 73: Specifications
Specifications Model Type H80* Analog solar-powered watch Timekeeping accuracy Within ±15 seconds per month when worn at normal operation (without the time temperatures (between +5°C/41°F and +35°C/95°F) signal reception) Operating -10°C/14°F ~ +60°C/140°F temperature range • Time: hours, minutes, seconds, 24-hour time Display functions •... - Page 74 Specifications Battery Rechargeable cell (lithium button cell), 1pc. • Solar power function • Overcharging prevention function • Insufficient charge warning function (two-second interval movement) • Energy saving function (power save feature) • Receiving time signal (automatic, on demand, automatic recovery) Signal stations: Japan (East/West)/USA/Germany/China * When the time difference is corrected, the signal station is switched.
- Page 75 European Union directives conformance statement Hereby, CITIZEN WATCH CO.,LTD. declares that this product is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU and all other relevant EU directives. You can find your product’s Declaration of Conformity at...
- Page 76 Model No.AT8 Cal.H80＊ CTZ-B8162 ④...
