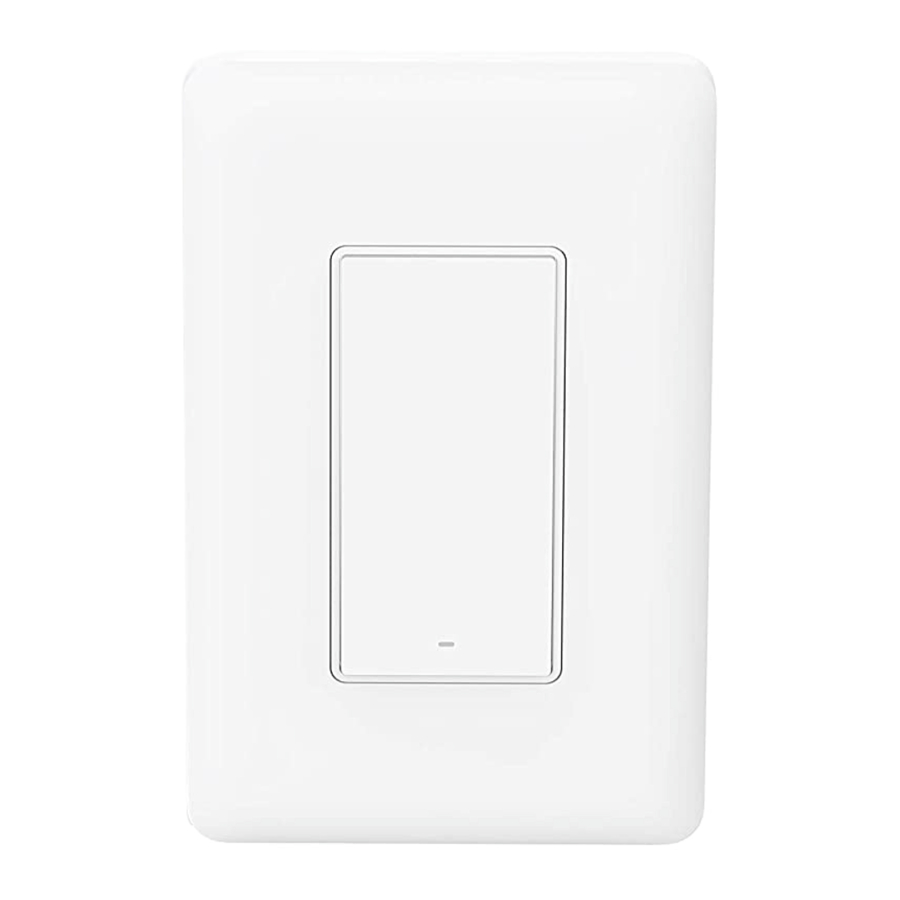

Aqara Smart Wall Switch - With Neutral Single Rocker Manual

Product Profile

Push Button
Short Press Once: Turn on/off
Long Press for 5s: Reconnect
Quick Press 3 Times: Effective Range Test

* This product requires a compatible hub. Some features require a specific hub. For the detailed list, please visit: www.aqara.com/support

1. A certain amount of electrical knowledge is required to install a smart wall switch. For your safety, we recommend that you ask a qualified electrician to help you install it;
2. This product is for indoor use only; do not use it in humid environment;
3. Do not install this product near a heat source;
4.
   This Smart Switch is rated for and intended to only be used with copper wire.

Before you install

This product is only used to replace a single pole switch rather than a 3-way switch.

Installation

Visit www.aqara.com/support for more information.

1. Turn off power at circuit breaker or fuse box and test that power is off before wiring. (Please switch the light several times to make sure that the power has been disconnected)

2. Remove the existing switch and identify the wires with wire labels.
   Required, usually black, and always present.

   Ground
   Usually green/bare.
   Neutral
   Usually white.
   Line(Hot)/Load
   Required, usually black, and always present.
3. Install the smart wall switch and connect the wires as required.

   Ground
   Usually green/bare.
   Neutral
   Required, usually white.
   Line(Hot)/Load
   Required, usually black, and always present.
4. Tuck the wires into the wall box leaving room for the smart switch. Using the screws provided, mount the smart switch to the wall box. Be careful not to crush any wires. (Note: avoid overtightening the screws.)

5. Install the wall plate, turn main power ON at the circuit breaker, and test the switch by pressing the button;
   If it doesn't work, please check:
   1. If the wiring is correct;
   2. If the power is restored.
      If it works, add the switch to the app following the next steps;

Quick Setup

1. Please add the Hub to the app according to the Hub Quick Start Guide.
2. Please open the app, and then tap "+" in the top right corner to enter "Add Device (Accessory)" page. Select "Smart Wall Switch (With Neutral, Single Rocker)", and add it according to instructions.

*If the connection fails, please move the hub closer to the switch, connect to power and try again.

Effective Range Test: Quick press the button on the device 3 times. If the Hub makes voice prompts, it indicates that the device can communicate effectively with the Hub.

Indicator Light Description

Specification

Model: WS-USC03
Dimensions: 120 x 74 x 36.5 mm (4.72 x 2.91 x 1.44 in)
Wireless Protocol: Zigbee 3.0
Input: 120 V AC 60 Hz
Max Load: 600 W (Incandescent), 200 W (CFL/LED), 1/4 HP
Operating Temperature: 0 – 40°C(32 – 104°F)
Operating Humidity: 0 – 95% RH, non-condensing
Manufacturer: Lumi United Technology Co., Ltd.

Address: 8th Floor, JinQi Wisdom Valley,
No.1 Tangling Road, Liuxian Ave, Taoyuan
Residential District, Nanshan District, Shenzhen, China.
Online Customer Service: www.aqara.com/support
