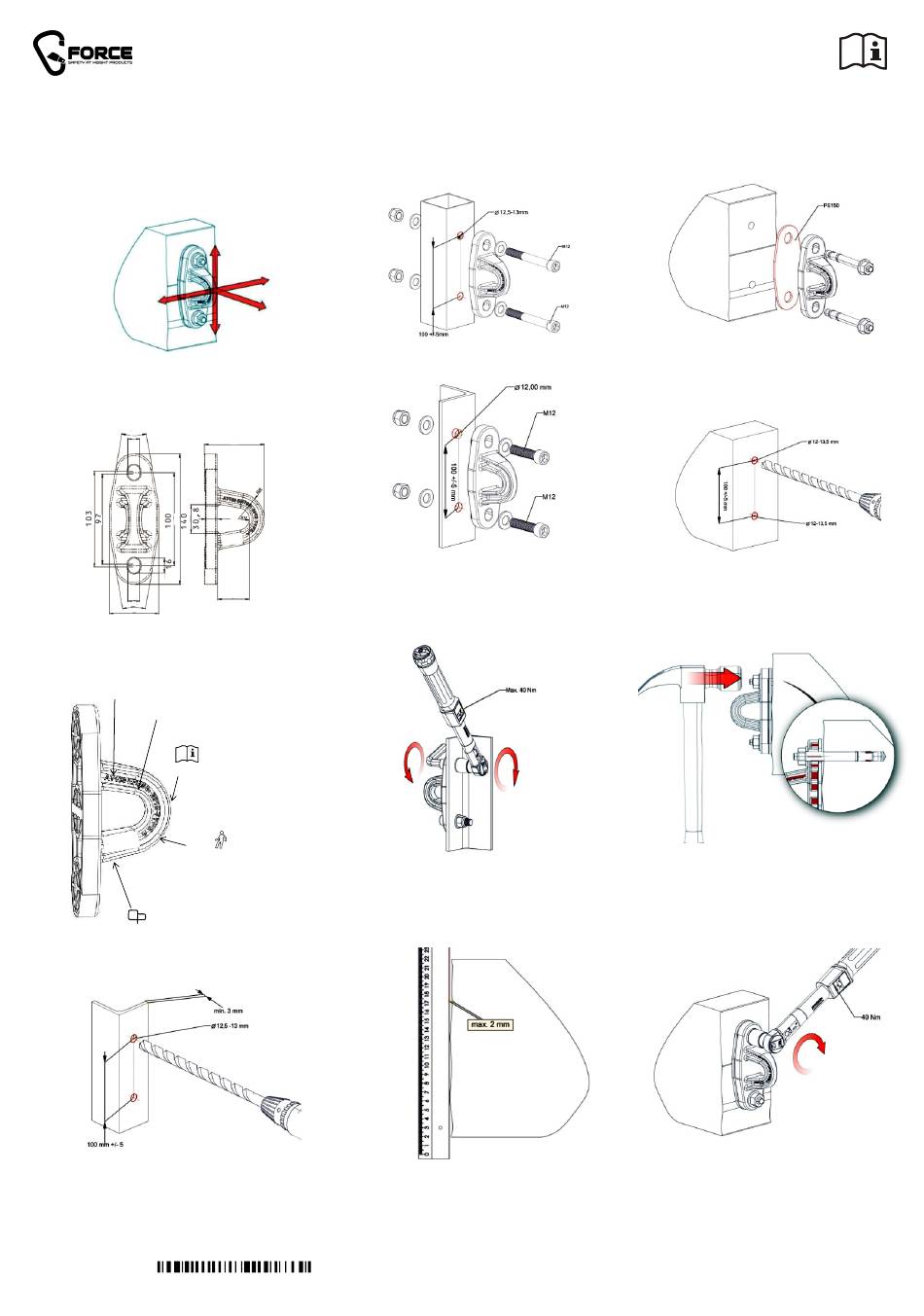

Instructions for use and installation of Anchor Point
AT 150
EN 795:2012 Type B
Figure 1. Permissible directions
of anchor point loading
20º
13
13
20º
53
Figure 2. Overall dimensions AT150
AT150 - Reference number of device
EN795 Type A - Standard reference
Before use read the instruction manual
MM/YY (month/year) Date of manufacture
Max. 1
Maximum number of users
Manufacturer's designation
Figure 3. Method of device marking
Figure 4. Drilling mounting holes
in steel profiles
ed. 1/28-01-2019
64
13
Figure 5. Installation of bolt fasteners
34
with anchor point on steel structure
Figure 6. Method of screwing anchor point
on steel structure using torque wrench
Figure 7. Estimation of maximum permissible
unevenness of concrete structure
0000066
READ AND UNDERSTAND INSTRUCTION MANUAL
BEFORE USING THE EQUIPMENT
Figure 8. Placement of EPDM pad
under anchor point AT150
Figure 9. Drilling holes for
anchor point AT150
Figure 10. Embedding throughbolts
in concrete.
Figure 11. Tightening anchor
point using torque wrench
1/5
