Summary of Contents for Haier 23PG27

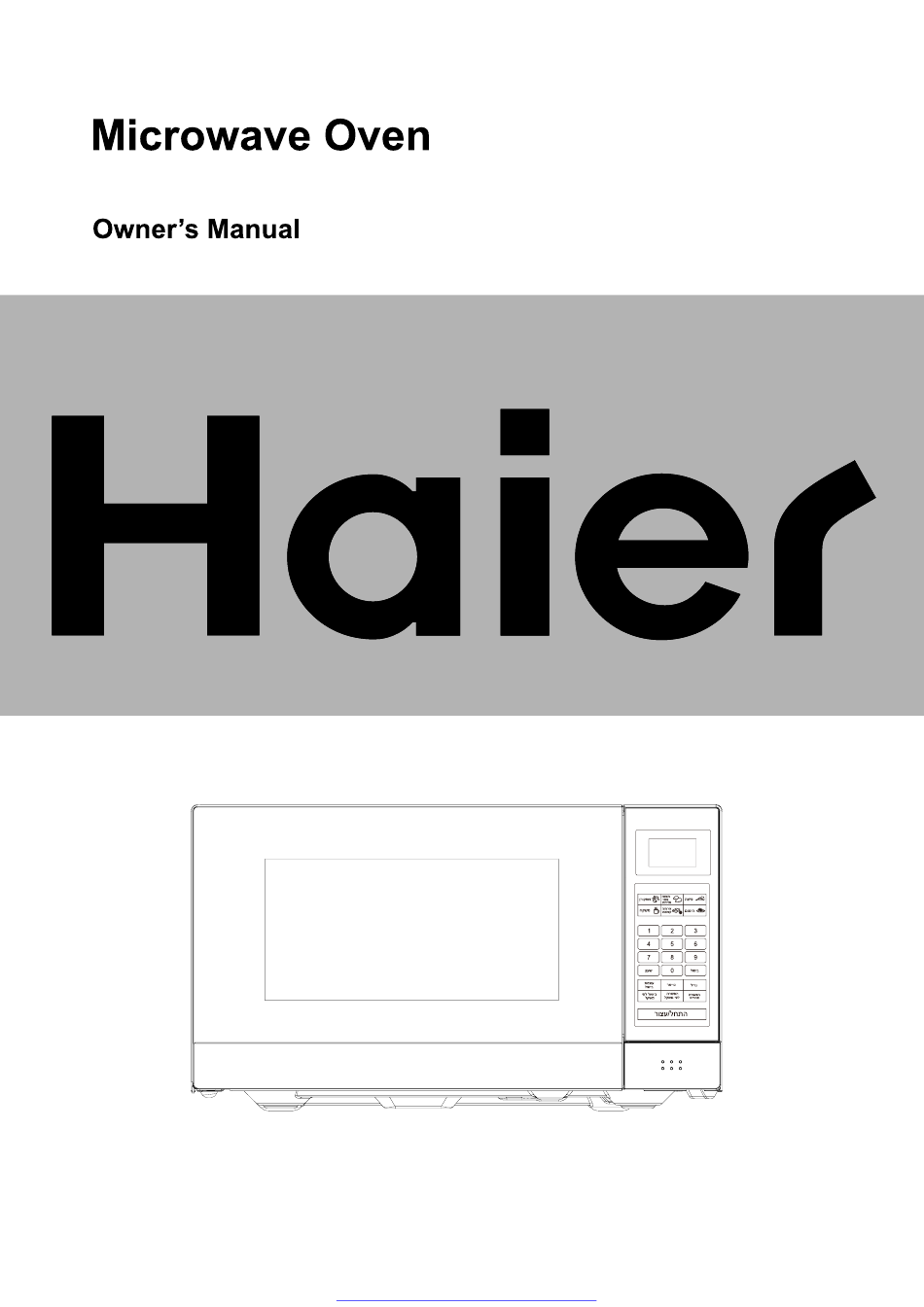

- Page 1 Model: 23PG27 Please read this booklet carefully before fixing and using and save it for future reference. Get other manuals https://www.bkmanuals.com...
-
Page 2: Installation Of Microwave Oven
INSTALLATION OF MICROWAVE OVEN 1. Remove the packaging and take out the distance limiter from accessory in microwave oven (some models have been instalLCD already), unlock the power cord, according to the specific shape of distance limiter, install by following the given instruction. -
Page 3: Important Safety Instructions
Operating dry should only be conducted in the grill mode, it should NOT be conducted at combination mode IMPORTANT SAFETY INSTRUCTIONS When using Microwave oven, the following precautions must be observed: 1. Read all instructions before using and keep it for future reference. 2. - Page 4 begin to cause smoke or catch fire e. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. f. Close supervision is necessary when using any one-off containers made from plastic, paper or other combustible material.
-
Page 5: Product Introduction
21. Any accessories not recommended by the manufacturer may cause injuries to appliances or persons. 22. After using, unplug the power cord, make sure not to put the power cord directly above the cover, or close to the fire and submerged in water. 23. -
Page 6: Control Panel
glass turntable grill rack waveguide cover housing door interlock rotating ring rotating axis oven cavity a. Do not remove the Waveguide cover during cleaning b. Make sure the Waveguide cover installation right and no damage during cooking 2. Control panel Set quick cook menu,Allow you to reheat or cook food automaticall y without entering power level or... -
Page 7: Led Instruction And Display
3. LED instruction and display When the POPCORN, PIZZA, REHEAT is begin set or used When the potato,Beverage, When the time is begin Frozen Dinneris begin set or used set or used When the time or clock ENTER TIMER CODE AMT TIME When the every 88:88... -
Page 8: Setting The Clock
rest, the appliance will enter standby state. 3. Setting the clock 1. on standby state, touch CLOCK key. Note: on the state of setting clock the step can be omitted. 2. Use the number keys to enter the correct time. You must touch at least three numbers to set the clock (one for hour and two for minutes). -
Page 9: Setting Cooking Times And Power Levels
5. Setting cooking times and power levels A. One-stage cooking 1. on standby state or clock state, Use the number keys to set a cooking time. You can set a cooking time from one second to 99 minutes and 99 seconds. If you are setting a time greater than one minute, you must enter numbers for both minutes and seconds. -
Page 10: Two Stage Cooking
Set cooking time by pressing the number Button of “1” ， 10:00 “0” ， “0” ， “0” Touch Power once then Select the desired microwave power by depressing number “ 8” Press Start/stop button to start, and LED will count down to show left time a. - Page 11 Press Grill Combi button to set grill level Press “9” ， “0” ， “0” to set cooking time 9:00 Start cooking by pressing Start/Stop button 6. Setting “speed defrost” 1. on standby state or clock state, touch SPEED DEFROST key. 2.
- Page 12 --For speed defrost and two stage cooking, follow steps above. Before touching START/STOP key, enter two-stage cooking programs. 7. Setting “cook by weight” The oven has default cooking menu for simple operation. You set the type and weight of food, and the oven automatically sets the cooking time and power level.
- Page 13 function c. Please wait for few minutes before take food out 8. Setting “defrost by weight” You set the type and weight of food, and the oven automatically sets the defrosting time Example: To defrost 1.15Kg beef Depress Display 1.After power-up, the colon flashes ,Then press Reset button ：...
-
Page 14: About "Quick Cook" Settings
Combination of Grill and microwave cooking. 30% of time microwave output and 70% of time light wave Combination of Grill and microwave cooking. 55% of time microwave output and 45% of time light wave In the mode of convection/combo/grill, all of the oven parts, as well as the rack and cooking containers, may become very hot. - Page 15 1. in standby state or clock state, touch Popcorn key which automatically sets the cooking time of microwave popcorn. 2. Touch Start/Stop key. To reset POPCORN time: tap POPCORN key twice. ENTER TIME appears in display. Touch number keys to enter minutes and seconds. Touch START/STOP key.
-
Page 16: Child Lock Function
This setting lets you reheat a dinner plate of chilled leftovers with good results. 11. Child lock function Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode Depress Display... -
Page 17: Cooking Tips
13. Cooking Tips The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. -
Page 18: Cleaning And Maintenance
Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. -
Page 19: Tips For Cleaning
c. Put some orange peel into oven, and then heat them with high power for 1 minute. TIPS for cleaning Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls:... -
Page 20: Servicing Safeguards
socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED. SERVICING SAFEGUARDS MICROWAVE RADIATION！ It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. - Page 21 The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged. 1. if LED displays Err0 during working ，it indicates that sensor has been short circuit and you need replace it at the nearest repaired department.
