HW-J6000R HW-J6001R User Manual For further information, refer to the Web Manual. Web manual : www.Samsung.com Support → → Product name search → HW-J6000R or HW-J6001R...
SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make any CAUTION kind of contact with any internal part of this product.
Page 3
PRECAUTIONS 1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot.

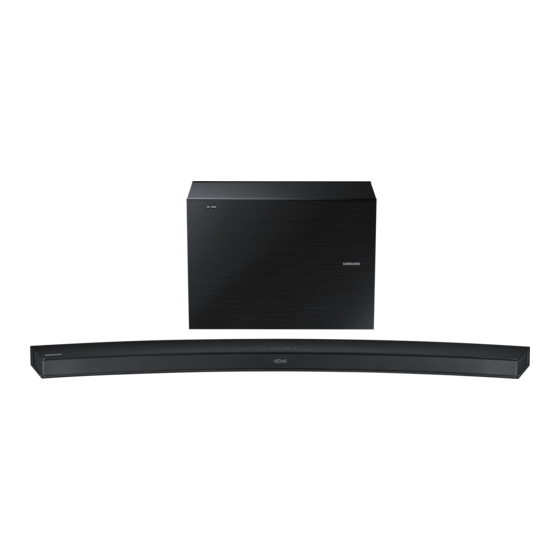

CHECKING THE COMPONENTS Soundbar Main Unit 2 AC/DC Adapter 3 Power Cord Remote Control / HDMI Cable Subwoofer Battery 1 Power Cord CONNECTING ELECTRICAL POWER Use the power components (1, 2, 3) to connect the power supplies in the following order: Subwoofer ...
Page 5
CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit. Soundbar Main Unit Unit Unit Subwoofer The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on.
If the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again. Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately) c For further information, refer to the Web Manual.
Page 7
TV on or off by setting the Bluetooth POWER On function to On. See page 13. c The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012. c If you want to disconnect the existing connection to your TV and establish a new connection to another TV, press the &...
4. Play music on the connected device. [If failed to connect to the Bluetooth device / If device searching is needed again] • Delete the previous "[Samsung] HW-Jxxxx J-Series" found by the Bluetooth device and have it search for the Soundbar again.
CONNECTING TO AN EXTERNAL DEVICE HDMI Cable You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by connecting them to your Soundbar. External Device HDMI Cable HDMI OUT Soundbar HDMI IN HDMI OUT (TV-ARC) HDMI Cable HDMI IN...
USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) search for the model name download the firmware from the customer support menu option.
Page 11
1. Place the installation guide against the wall 4. Attach the Soundbar to the 2 Bracket-Wall surface. pieces as shown in the illustration. The installation guide must be level. ● If the TV is mounted on the wall, install the ●...
Page 12
REMOTE CONTROL BUTTONS & FEATURES Inserting Battery before using the Remote Control 1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below. 2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery.
Page 13
Sets the volume temporarily to 0. Press again to cancel. Mute Adjusts the volume level of the unit. Volume Press the & button to pause a music temporarily. Press the & button again to play the selected music. Play / Pause Selects the next file.
Multimedia Interface, and the HDMI Logo are È TV SoundConnect is supported by some trademarks or registered trademarks of HDMI Samsung TVs released from 2012 on. Check Licencing LLC in the United States and other your TV to see if it supports TV SoundConnect.
• Nominal specification – Design and specifications are subject to change without prior notice. – Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. – Weight and dimensions are approximate. – For more information about the power supply and power consumption, refer to the label attached to the product.
INFORMAÇÕES DE SEGURANÇA COMPONENTES INCLUÍDOSAVISOS DE SEGURANÇA PARA REDUZIR O RISCO DE CHOQUES ELÉCTRICOS, NÃO RETIRE A TAMPA POSTERIOR. O INTERIOR NÃO CONTÉM PEÇAS PASSÍVEIS DE REPARAÇÃO PELO UTILIZADOR. A MANUTENÇÃO DEVE SER EFECTUADA POR PESSOAL TÉCNICO QUALIFICADO. Este símbolo indica a presença de alta tensão no interior.
Page 17
PRECAUÇÕES 1. Certifique-se de que a fonte de alimentação de CA em sua casa está em conformidade com o indicado no autocolante de identificação, situado na parte de trás do produto. Instale o produto na horizontal, sobre uma base adequada (móvel), com espaço suficiente para permitir a ventilação 7~10 cm. Certifique-se de que os orifícios de ventilação não estão tapados.
VERIFICAÇÃO DOS COMPONENTES Unidade Principal do Soundbar 2 Transformador 3 Cabo de de CA/CC alimetntação Controlo remoto/ Subwoofer Pilha Cabo HDMI 1 Cabo de alimetntação LIGAÇÃO À CORRENTE ELÉCTRICA Utilize os componentes elétricos (1, 2, 3) para ligar as fontes de alimentação pela seguinte ordem: Subwoofer ...
Page 19
LIGAÇÃO DO SUBWOOFER À UNIDADE PRINCIPAL DO SOUNDBAR Pode desfrutar de sons graves ricos e de uma melhor qualidade de som, ligando o subwoofer à unidade principal do Soundbar. Unidade Principal do Soundbar Unidade P Soundbar Subwoofer A unidade principal e o subwoofer do Soundbar devem ligar-se (sem fios) automaticamente assim que estiverem a funcionar.
5. Enquanto o indicador do subwoofer estiver a piscar a azul, prima o botão no comando remoto ou parte superior da unidade principal do Soundbar para ligar a unidade principal. 6. A ligação foi estabelecida se o indicador na parte dianteira do subwoofer para de piscar e ficar aceso de forma contínua.
Page 21
Método 2. TV SoundConnect (Ligação a um televisor Samsung por Bluetooth) 1. Ligue o televisor Samsung e o Soundbar. 2. Selecione o modo TV no ecrã do Soundbar premindo o botão na parte superior do Soundbar ou o botão SOURCE no controlo remoto. (Os modos são apresentados na seguinte ordem: D.IN → AUX → HDMI →...
Page 22
4. Reproduza música no dispositivo ligado. [Caso a ligação ao dispositivo Bluetooth falhe/Se for necessário pesquisar o dispositivo novamente]. • Elimine o “[Samsung] HW-Jxxxx J-Series” anterior encontrado pelo dispositivo Bluetooth e use-o para pesquisar novamente pelo Soundbar. c Se for solicitado um código PIN ao ligar ao dispositivo Bluetooth, introduza <0000>.
Page 23
LIGAR A UM DISPOSITIVO EXTERNO Cabo HDMI Pode desfrutar de som de outros dispositivos externos, como um leitor de BD/uma consola de jogos/um descodificador, etc., ligando-os ao Soundbar. Dispositivos Digitais Cabo HDMI HDMI OUT Soundbar HDMI IN HDMI OUT (TV-ARC) Cabo HDMI HDMI IN Base do Soundbar...
Para mais informações sobre como transferir os ficheiros de atualização, vá ao website da Samsung Electronics (samsung.com/sec) procure o nome do modelo transfira o firmware a partir da opção de menu de apoio ao cliente. O nome da opção pode variar.
Page 25
1. Coloque a guia de instalação contra a superfície 4. Fixe o Soundbar às 2 peças do Suporte para da parede. Instalação na Parede, conforme apresentado na figura. Guia de instalação tem de estar nivelada. ● Se o televisor estiver instalado na parede, ●...
Page 26
BOTÕES E FUNCIONALIDADES DO CONTROLO REMOTO Inserção da pilha antes de utilizar o controlo remoto 1. Utilize uma moeda com um tamanho adequado para rodar a tampa da pilha do controlo remoto no sentido contrário ao dos ponteiros do relógio para a remover, como se mostra na figura em baixo. 2.
Page 27
Define o volume temporariamente como 0. Prima novamente para cancelar. Silenciar Ajusta o nível de volume da unidade. Volume Prima o botão & para por temporariamente uma música em pausa. Prima novamente o botão & para reproduzir a música selecionada. Reproduzir / Pausa Seleciona o ficheiro seguinte.
Page 28
È Actualize o televisor com a versão mais recente de firmware. Ocorre um erro ao ligar? È Contacte o centro de contacto da Samsung. È Reinicie o TV SoundConnect e ligue novamente. Para reiniciar a ligação do TV SoundConnect, mantenha o botão & premido durante 5 segundos.
Page 29
• Especificação nominal – A conceção e as especificações estão sujeitas a alteração sem aviso prévio. – A Samsung Electronics Co., Ltd reserva-se ao direito de alterar as especificações sem aviso prévio. – O peso e as dimensões indicados são aproximados.
