Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
LOS06000 / LOS06002
Created 4/23 451831
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby Losi Promoto-MX LOS06000
Summary of Contents for Horizon Hobby Losi Promoto-MX LOS06000
- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
- Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Box Contents ....................3 Driving Modes ..................10 Specifications ..................3 Jumping ....................10 Required Equipment ................3 Run Time ....................11 Vehicle Parts .....................4 MX Start Stand ..................11 Transmitter Functions ................4 After Your Run ..................12 Charging Warnings .................5 Maintenance ................... -
Page 4: Vehicle Parts
VEHICLE PARTS Steering Servo Brake Servo Motor Brake Cable Battery Battery Connector Fork Shock Absorber Floating Brake Disc Receiver Rear Sprocket Flywheel Swing Arm Electronic Speed Drive Chain Control (ESC) Brake Caliper TRANSMITTER FUNCTIONS FUNCTION Power Button 2 MS6X Gain Knob 3 LED Indicator 4 Throttle Limit Switch 5 Flywheel Switch... -
Page 5: Charging Warnings
• Always charge in a well-ventilated area. • Never attempt to charge a battery pack containing • Always terminate all processes and contact Horizon Hobby different types of batteries. if the product malfunctions. • Never allow children under 14 years of age to charge •... -
Page 6: Install The Transmitter Batteries
INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries (included). 1. Remove the battery cover from the transmitter. 2. Install the batteries as shown. 3. Install the battery cover. CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non- rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. -
Page 7: Power On The Transmitter
POWER ON THE TRANSMITTER To power on the transmitter press the power button located on the back of the transmitter, as shown. The transmitter will emit a tone and the battery level indicator will briefly flash the transmitter battery level. The LED indicator will then flash yellow. -
Page 8: Flywheel Startup
FLYWHEEL STARTUP The vehicle features a high-speed, motorized flywheel to assist with stability. To power on the flywheel: 1. Place the vehicle on the included stand. 2. Slide the transmitter flywheel switch to ON. The LED indicator on the transmitter will glow solid green, and the flywheel on the vehicle will start, gradually increasing in speed. -
Page 9: Driving
TURNING The Promoto-MX uses MS6X technology to translate the transmitter input to a desired lean angle, using the weight of the motorcycle to produce the correct response. Rotate the transmitter steering wheel left and right to turn the desired direction. •... -
Page 10: Driving Modes
DRIVING MODES The Promoto-MX has three drive modes available: • Wheelie mode (three green LED flashes): Meant for driving on smooth, hard pavement, this mode allows the vehicle to pop high wheelies and balance to maintain them while holding full throttle. •... -
Page 11: Run Time
RUN TIME Run time for the vehicle is approximately 9-12 minutes, depending on your throttle usage and driving style. The vehicle battery capacity is represented by the Smart battery level indicator on the transmitter. When the battery level drops below normal, a single green LED flashes on the battery level indicator. -
Page 12: After Your Run
AFTER YOUR RUN When you are finished with your run: 1. Slide the flywheel switch to OFF. The flywheel has a electronic drag brake to help slow the flywheel. The flywheel should stop in approximately 30 seconds. 00:30 IMPORTANT: The vehicle must be powered on for the flywheel drag brake to function. - Page 13 DRIVE CHAIN TENSION As the vehicle is driven more, the drive chain will seat with the sprockets and possibly wear some. As this happens, it may become necessary to adjust the chain tension. The Promoto-MX includes a chain tension adjustment set. To check the chain tension: 1.
-
Page 14: Limited Warranty
Product, (iv) attempted These terms are governed by Illinois law (without regard to service by anyone other than a Horizon Hobby authorized conflict of law principals). This warranty gives you specific service center, (v) Product not purchased from an authorized... -
Page 15: Warranty And Service Contact Information
Horizon Product Support 2904 Research Rd. United States of productsupport@horizonhobby.com (Product Technical Champaign, Illinois 61822 America 877-504-0233 Assistance) websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service Hanskampring 9 service@horizonhobby.eu European Union D 22885 Barsbüttel, +49 (0) 4121 2655 100 Sales: Horizon Hobby GmbH Germany... -
Page 16: Fcc Information
Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: LOSI Promoto-MX Pro Circuit RTR (LOS06002); Horizon Hobby, GmbH Hereby, Horizon Hobby, LLC declares that the device is in Hanskampring 9 compliance with the following: Radio Equipment Directive 22885 Barsbüttel Germany (RED) 2014/53/EU;... -
Page 17: Exploded Views
EXPLODED VIEWS | EXPLOSIONSZEICHNUNGEN | VUES ÉCLATÉES | VISTE ESPLOSE JERSEYS (not shown) | JERSEYS (nicht abgebildet) CHANDAILS (non illustrés) | MAGLIE (non mostrato) LOS260008 FXR LOS260009 ClubMX LOS260010 Pro Circuit LOS260007 - FXR Red LOS260012 - ClubMX FXR LOS260013 - Pro Circuit LOS261006 TLR5962 TLR5964... - Page 18 LOS263012 TLR233043 LOS261009 LOS261010 LOS263008 LOS255014 LOS264001 LOS235024 LOS261010 LOS235024 LOS263012 LOS261002 LOS255014 LOS263009 LOS263008 LOS261009 LOS263009 TLR245016 TLR235006 LOS264000 LOS261009 TLR235003 LOS263010 LOS262002 LOS261012 LOS264000 SPMS620PM LOS262002 TLR6352 TLR5903 LOSA6945 LOS264000 LOS263011 LOS262005 LOS267000 TLR5903 LOSA6940 LOSA6945 LOS261011 LOS262005 LOS262008 TLR235006 LOSA6940...
- Page 19 SPMXSM3200 LOS261002 LOS255017 TLR255013 TLR5961 TLR5961 TLR5963 LOS262008 TLR5930 LOS262016 TLR6352 LOS255016 LOS262006 TLR6932 LOS245017 LOS262006 TLR232080 LOS262008 LOS261013 TLR5903 LOS262006 LOS262005 TLR256005 LOS262007 TLR6932 LOS262008 LOS235005 LOS261014 TLR5962 LOS261006 TLR5962 TLR5930 LOS255016...
- Page 20 TLR6312 TLR5963 LOS261007 LOS263006 LOS263003 TLR5904 TLR5904 LOS265001 LOS263005 LOS264004 TLR5963 LOS* LOS265001 LOS267003 LOS265001 TLR5910 TLR231078 TLR5904 LOS264004 LOS265001 LOS264004 LOS263004 LOS* TLR255007 LOS262011 LOS263000 LOS* LOS260000 Red, Rot, Rouge, Rosso LOS263003 LOS260001 Blue, Blau, Bleu, Blu LOS260002 Green, Grün, Vert, Verde LOS* LOS260003 Yellow, Gelb, Jaune, Giallo LOS260004 Orange, Orange, Orange, Arancione...
- Page 21 TLR235014 LOS262015 LOSA6955 LOS46002 TLR235014 LOS46008 LOS46002 TLR245017 LOS262013 LOS267002 LOS261004 LOS262012 LOS262010 TLR5903 LOS46003 TLR235014 LOS46009 LOSA6955 TLR6313 LOS46003 LOS262014 LOS262012 LOS262003 TLR5910 LOS262000 LOS262015 LOS267002 LOS261001 TLR245010 LOS261001 LOS261000 TLR235004 TLR5903 TLR245008...
-
Page 22: Replacement Parts
REPLACEMENT PARTS | ERSATZTEILE | PIÈCES DE RECHANGE | PARTI DI RICAMBIO DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Ruban adhésif pour servo, Nastro per servoassistiti, DYN2267 Servo Tape, Black; 1 1/2" Servoband, schwarz; 1 1/2" noir ; 1 1/2 po nero; 1 1/2" Inbusschrauben, M2,5 x 10 mm Vis d’assemblage creuses Viti a testa cilindrica M2,5x10... - Page 23 DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Arbre intermédiaire de bras Albero a cavalletto del Swing Arm Layshaft w/ Schwingarm-Vorgelegewelle LOS262005 pivotant avec quincaillerie : braccio oscillante con cavo di Hrdwr:PM-M mit Hardware: PM-M PM-M alimentazione: PM-M Unità di scivolamento, Slipper Unit, Comp Gleiteinheit, Verbundstoff, Unité...
- Page 24 DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Inbusschrauben, M3 x 14 mm Vis d’assemblage creuses, Viti testa cilindrica, M3x14 LOS265001 Cap Head Screws, M3 x 14mm (10) (10) M3×14 mm (10) mm (10) Flachkopfschrauben, M4 x Vis à tête plate, M4×30 mm Viti a testa piana, M4 x 30 mm LOS265002 Flat Head Screws, M4 x 30mm (10 30 mm (10)
-
Page 25: Recommended Parts
DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Aluminium-Mutter, schwarz, mit Écrou à embase en aluminium Dado flangiato alluminio nero, TLR236009 Blk Alum Flanged Nut, M4x7mm (4) Flansch M4 x 7 mm (4) noir, M4×7 mm (4) M4x7 mm (4) Inbusschrauben, M2 x 10 mm Vis d’assemblage creuses, Viti testa cilindrica M2x10 TLR245008 Cap Head Screws, M2x10mm (10) - Page 26 DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Gelbe Kunststoffe mit Bindern: Plastiques jaunes avec Plastica gialla con involucri: LOS260003 Yellow Plastics w/Wraps: PM-MX PM-MX emballages : PM-MX PM-MX Orangefarbene Kunststoffe mit Plastiques orange avec Plastica arancione con LOS260004 Orange Plastics w/Wraps: PM-MX Bindern: PM-MX emballages : PM-MX involucri: PM-MX Weißer Kunststoff mit Bindern:...
- Page 27 DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Bride triple en aluminium, or : Morsetti tripli in alluminio oro: LOS364005 Alum Triple Clamps Gold: PM-MX Alu-Gabelbrücken gold: PM-MX PM-MX PM-MX Bride triple en aluminium, Morsetti tripli in alluminio LOS364006 Alum Triple Clamps Silver: PM-M Alu-Gabelbrücken silber: PM-M argent : PM-M argento: PM-M Titan-Scharnierstift 4x42 mm:...
- Page 28 DESCRIPTION BESCHREIBUNG DESCRIPTION DESCRIZIONE Hochdruck-Schmierfett, Graisse noire haute pression, Grasso nero ad alta pressione, TLR77000 High-Pressure Blk Grease,8cc schwarz, 8cc 8 cc 8 cc Graisse pour joint torique Grasso per O-ring degli TLR77002 Shock O-ring Grease, 8cc Stoßdämpfer O-Ring-Fett, 8cc d’amortisseur, 8 cc ammortizzatori, 8cc S6240 H-T / H-S Digitaler WP Servo numérique étanche...
- Page 29 © 2023 Horizon Hobby, LLC. Losi, Promoto, Firma, MS6X, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Other patents pending. Created 4/23...
Need help?
Do you have a question about the Losi Promoto-MX LOS06000 and is the answer not in the manual?
Questions and answers

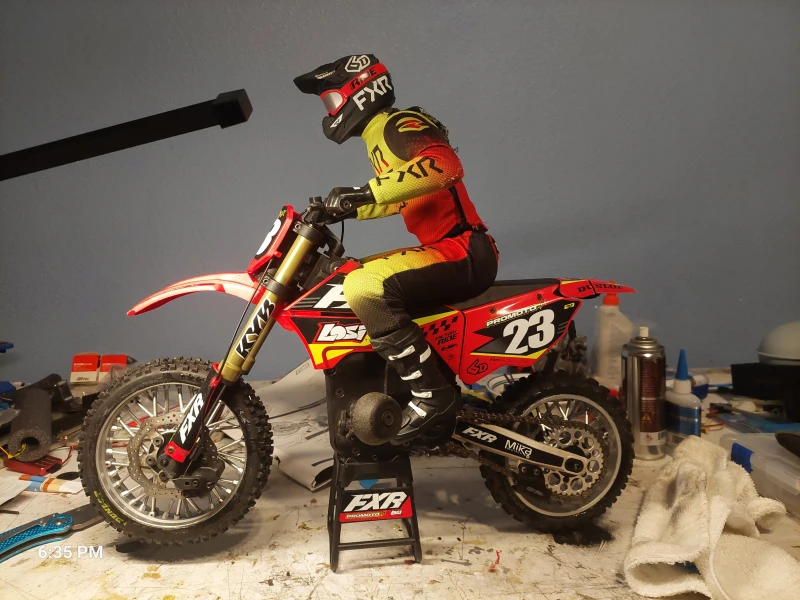

Gyro turns on but the bike does not balance
The Losi Promoto-MX LOS06000 bike may not balance even if the gyro turns on due to several possible reasons:
1. Throttle Limit Setting: If the throttle limit switch is set to a low power level (50% or 75%), the bike may not have enough speed to maintain stability.
2. Insufficient Speed: The manual states that the faster the vehicle moves, the more stable it becomes. If the bike is moving too slowly, it may struggle to balance.
3. Improper Steering Input: The MS6X technology relies on proper steering input to shift weight and maintain balance. Incorrect inputs may cause instability.
4. Battery or Power Issues: Ensure the battery is properly charged and connected, as low power may affect the gyro and motor performance.
5. Mechanical Issues: Check for any loose or improperly installed components, such as the flywheel, steering servo, or suspension, which could affect balance.
Ensuring proper throttle settings, speed, and checking for mechanical or power issues may help the bike balance correctly.
