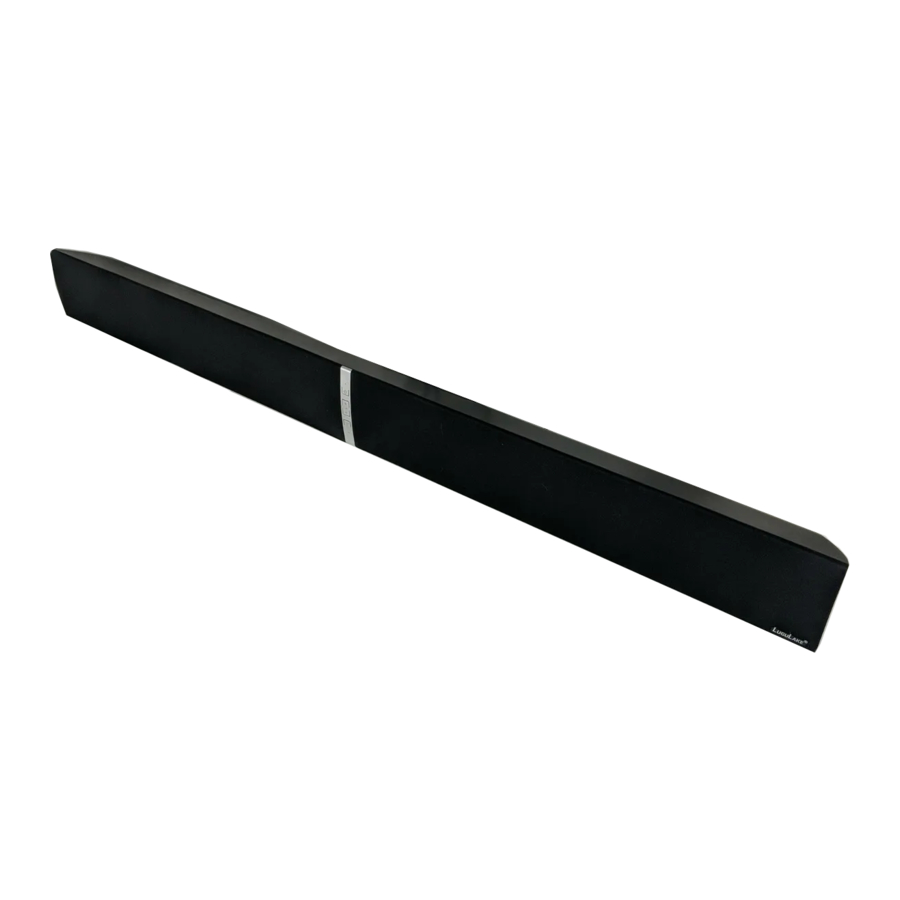

LuguLake T-180BT - Speaker Manual

ASSEMBLY AND SAFETY

Please read the following instructions before assembly:
The Soundbar is designed for audio playback. All other uses are expressly excluded.
If you want to set up the Soundbar on shelving units, in cupboards, etc., please ensure that there is adequate ventilation. There must be a free area of at least 10 cm on either side and above the Soundbar.
Do not cover the Soundbar with newspapers, tablecloths, curtains, etc.
When setting up the Soundbar, please note that furniture surfaces may be covered with various finishes or synthetic materials that often contain chemical substances. These substances can attack the material of the unit base among other things. This can leave residues on the furniture surface, which may be difficult or impossible to remove.
If the Soundbar is subjected to big variations in temperature, for example when transported from a cold to a warm place, do not use the Soundbar for at least two hours.
The Soundbar is designed to be used in dry rooms. Should you nevertheless decide to operate it outdoors, you must ensure that it is protected from moisture (dripping or splashing water).
Only use the Soundbar in a temperate climate.
Do not place the Soundbar close to a radiator or in direct sunlight; this can affect the cooling system.
Do not place any containers with liquids inside (e.g. vases) on top of the Soundbar.
Do not place any open sources of fire (e.g. candles) on top of the Soundbar.
Do not use any cleaning agents; these may damage the casing. Cleanse the device using a clean and dry cloth.
Do not expose the battery to extreme heat, such as for example sunlight, radiators, fire, etc.
The remote control contains a button cell. Please always keep the remote control and the button cell out of reach of children.
If the button cell is accidentally swallowed, it can lead to burns and even death within two hours.
You should therefore see a doctor immediately.
Keep new and used batteries out of reach of children. If the battery compartment cannot be closed safely, do not continue to use the device and keep out of reach of children.
Remove the battery if used up or if you do not use the device for a long time. We do not assume liability for damage caused by leaked batteries.
The batteries, even those free from heavy metals, must not be disposed of as domestic waste. Used batteries must be discarded in used battery collection containers found at commercial or public waste management services.
You must never open the Soundbar. In case of damage due to improper tampering, any claims for guarantee are lost.
Storms are a danger to any electronic device. Even if the Soundbar is switched off, it may still become damaged as a result of lightning striking the mains. In case of a storm, you must always pull the mains plug.
Notes:
Do not connect any devices when your device is switched on. Also switch the other devices off before connecting them!
Do not plug the mains plug of your device into the socket until all external devices have been connected!
Please ensure that the mains plug is freely accessible!

RF Exposure

This equipment must be installed and operated in acordance with provided manual. The device comprised a built-in antenna, and must not be co-located or operating in conjunction with any other antenna or transmitter.

Controls are on the front page
LED,

• lights up red whenever the device is in standby mode;
• lights up white if the source device "TV" has been selected.
• lights up orange if the source device "Aux In" has been selected.
• Flashes red when the sound is muted.

Switches the device on from standby mode and back off again.
Increases the volume.
Decreases the volume.
Press briefly to select the source device "TV", "external device" and "Bluetooth".
Press and hold to start Bluetooth pairing; the display B flashes rapidly.
LED flashes rapidly during the Bluetooth pairing process.

Connection jacks and controls on the back page
Audio signal input (ø 3.5 mm) for connecting an external device.
Audio signal input (Cinch) for connecting the LCD TV.
Audio signal output (Cinch) for an external subwoofer.
Switches the device on and off.
220-240V Mains cable. 50/60Hz 0.1A
Note:
The Soundbar is only completely separated from the mains once the mains plug has been pulled.

Remote control buttons

	Switches the device on from standby mode and back off again.
	Mutes the Soundbar speakers and unmutes them again.
	Press briefly to select the source device "Bluetooth"; press and hold to start Bluetooth pairing.
3D	Activates stereo spread.
AUX	Selects the source device connected to the »AUX IN« jack.
TV	Selects the source device "TV" (in the jack »RCA INPUT«).
Volume change.
	Selects the previous track in Bluetooth mode.
	Starts playback in Bluetooth mode and switches between play/pause.
	Selects the next track in Bluetooth mode.

PREPARATION/CONNECTION

Preparation
Activate the remote control battery

1. Remove protection film from the battery compartment.
   • The remote control is now functional.

Change remote control batteries (TYPE CR 2025)
Note:
If your device no longer responds to the remote control commands, the battery may be dead. It is imperative that dead batteries be removed. We do not assume liability for damage caused by leaked batteries.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

1. Hold the remote control with the back side facing up.
2. Push the detent of the battery holder to the right and remove battery holder.
3. Remove used battery and insert new battery into the battery holder, positive pole facing upward.
4. Push battery holder into the remote control until it clicks into place.

Connecting
Connect Soundbar to the LCD TV

1. Connect a standard audio lead to the »RCA INPUT« jacks of the Soundbar.
   • Please be aware of the left and right channels when doing so (white = left channel, red = right channel).
2. Connect audio lead to the audio output jacks of the LCD TV.

Connect subwoofer to the Soundbar
If a subwoofer is to be connected, connect standard audio cable to the »SUB OUT« jack of the Soundbar and the audio input jack of the subwoofer.

Connect external device
An external device, such as a MP3-Player for example, can be connected to the »AUX IN« jack.

1. Connect a standard audio lead to the »AUX IN« jack of the Soundbar.
2. Connect adapter cable to the external device.

Note:
The LCD TV can also be connected via the »AUX IN« jack if it is not equipped with audio output jacks. In such cases please use the headphone jack.

Connect mains cable
Check that the mains voltage indicated on the type label (on the back of the device) corresponds to the local mains voltage.
If this is not the case, please consult your specialist dealer.

1. Plug mains cable plug into the socket (220-240V~50/60Hz).

The Soundbar is connected to the mains via the mains cable. If you want to disconnect the Soundbar from the mains completely, you must pull the mains plug.
Please ensure that the mains cable is freely accessible during operation and is not obstructed by any other objects.

WALL MOUNTING

The ground must be firm and capable of handling the load.
Use mountings that are appropriate for the weight of the device (weight of the Soundbar T-180BT plus DIN safety = approx. 2.5 kg).
For wooden or hollow wall structures use suitable plugs and screws. Seek advice from a specialist dealer.

In order to prevent injuries, the device must be securely fastened to the wall in accordance with the installation instructions.

Note:
Installation of the Soundbar T-180BT for professional use (e.g. in a bistro) must only be carried out by an electrically qualified person, in accordance with the applicable construction regulations as per VDE 0100.

1. Determine place of installation and mark drill holes.
   • The distance between drill holes of the Soundbar is 64 centimetres.

2. Drill the holes (8 mm ) in the wall and insert the plugs included.

3. Screw in the two supplied screws. Distance of screw head from the wall 4 mm.
4. Detach unit base from the Soundbar, rotate 180°.

5. Place the included washer and then the snap ring onto the fixing bolt and reattach the unit base through the second drill hole.

6. Affix the included spacers to the back of the unit base.
7. Connect a standard audio lead to the »RCA INPUT« jack of the Soundbar.
   • Please be aware of the left and right channels when doing so (white = left channel, red = right channel).
     Note:
     If a subwoofer is to be connected, connect standard audio cable to the »SUB OUT« jack of the Soundbar.
8. Carefully slide the Soundbar over the bolt heads.

9. Connect audio lead to the audio output jacks of the LCD TV.
   Note:
   If a subwoofer is to be connected, connect the audio cable to the subwoofer. 10 Plug mains cable into the socket.

   The Soundbar is connected to the mains via the mains cable. If you want to disconnect the Soundbar from the mains completely, you must pull the mains plug.
   Please ensure that the mains cable is freely accessible during operation and is not obstructed by any other objects.

OPERATION

TV mode – operating with the remote control of the sound bar

1. Switch Soundbar into standby mode using »POWER ON/OFF«.
   • The LED A lights up red.
2. Switch Soundbar on from standby mode using »«.
   • The LED A lights up white.
     Note:
     After power on the source device "TV" is selected automatically.
3. Adjust the volume using »+ V« or »V –«.
4. Use » « to mute the sound.
5. Switch Soundbar into standby mode using » «.
6. Switch Soundbar off using »POWER ON/OFF«.

TV mode – operating with the remote control of the television
If the sound is only to be played through the sound bar and the volume is to be controlled using the remote control of the television, this must be set in the TV. In the sound menu of your television, turn off the TV speakers, turn on the audio output, and select the status "Controllable". (This depends on the television; see the operating instructions of the TV.)

Turning on the sound bar automatically
The sound bar will turn on from standby modeautomatically when there is an audio signal on the "RCA INPUT" sockets. It turns off after about 15 minutes when the audio signal is no longer present.

1. To ensure that the sound bar powers on, adjust the audio signal with the volume buttons on the TV so that the power-on level is reached.
   • The sound bar switches on.
   • The LED A lights up white.
2. If the sound bar does not switch on, increase the volume using the volume buttons on the TV.

Notes:
The volume can be set with the remote control of the television.
If the output signal of the TV (and thus the volume) is set too low, the sound bar may not switch on after the TV is powered off and back on. If this is the case, increase the output signal of the TV with the remote control of the television and use the »+ V« or »V –« buttons of the remote control of the sound bar to adjust the volume to the desired volume.

If the sound bar was switched to standby with the remote control (using the »8« button), automatic power-on is disabled. The sound bar then needs to be switched on again with this button.

Turning off the sound barautomatically
If there is no audio signal on the »RCA INPUT«and »AUX IN« sockets, then the sound bar automatically switches to standby after 15 minutes. To use the sound bar again, switch it back on.

Operating with an external device

1. If an "external" device is connected to the »AUX IN« socket, select this program source with the »AUX« button of the remote control.
2. Switch to TV mode using the »TV« button of the remote control.

Bluetooth mode
Compatible with the following devices
Your device can be paired with all current, Bluetooth-enabled devices that adhere to the A2DP standard.
This applied to smartphones, laptops and tablet PCs for example.

Search for and connect to auxiliary Bluetooth device

1. Switch Soundbar into standby mode using »POWER ON/OFF«.
   • The LED A lights up red.
2. Switch Soundbar on from standby mode using » «.
3. Select "Bluetooth" source device by pressing » « on the remote control.
4. Activate the Bluetooth function on the auxiliary Bluetooth device.
5. Press and hold » « on the remote control of the T-180BT.
   • The LED B flashes rapidly.
6. Start the search function on the auxiliary Bluetooth device.
   • After a short period of time, your T-180BT is displayed on the Bluetooth device.
7. Select the T-180BT on the Bluetooth device and connect it.
8. When the auxiliary Bluetooth device is paired with your device, the LED B of your T-180BTflashes slowly.

Note:
Your T-180BT can only receive and play back the audio signal from one Bluetooth device; up to 8 devices can nevertheless be paired.

Activate a paired auxiliary Bluetooth device
Notes:
Auxiliary Bluetooth devices must only be paired once (depending on the auxiliary Bluetooth device). When leaving and then returning to the reception range of the T-180BT, the auxiliary Bluetooth device will pair with it automatically.
The T-18BT will only connect automatically with the last paired auxiliary Bluetooth device. If the auxiliary Bluetooth device is not detected, it must be reactivated via its menu.

Playback of auxiliary Bluetooth device

1. Begin playback on auxiliary Bluetooth device.
2. Set the desired volume using »+ V –«.
   Note:
   The volume can also be adjusted from the auxiliary Bluetooth device.
3. Mute the volume using » « on the remote control.
4. Stop playback on auxiliary Bluetooth device.

Notes:
Various functions can also be controlled using the remote control of the T-180BT:

• Select play-pause using » «,
• Continue playback by pressing » « again;
• select previous track using » «;
• select next track using » «.

Please note that the data transfer range can be up to 9 m, depending on the auxiliary Bluetooth device and the structural conditions.

Technical Information

This device is suppressed in accordance with the applicable EC Directives.
This product conforms to European Directives 1999/5/EC, 2009/125/ EC and 2011/65/EU. The type label can be found on the back of the device.

CE declaration of conformity
The CE declaration of conformity for the device can be found as a PDF file on the Grundig homepage, www.grundig.com/download/doc.

Power supply: 220-240V~50/60Hz 0.1A
Max. power input
Power output: DIN45324, 10% THD 2 x 20 W
Frequency response: 20Hz - 20 kHz
S/N ratio: 70 dB
Separation: 45 dB
Dimensions and weight: Wx H x D 99 x 9.3 x 7 cm
Weight approx. 2.56 kg
Technical and design modifications reserved!
