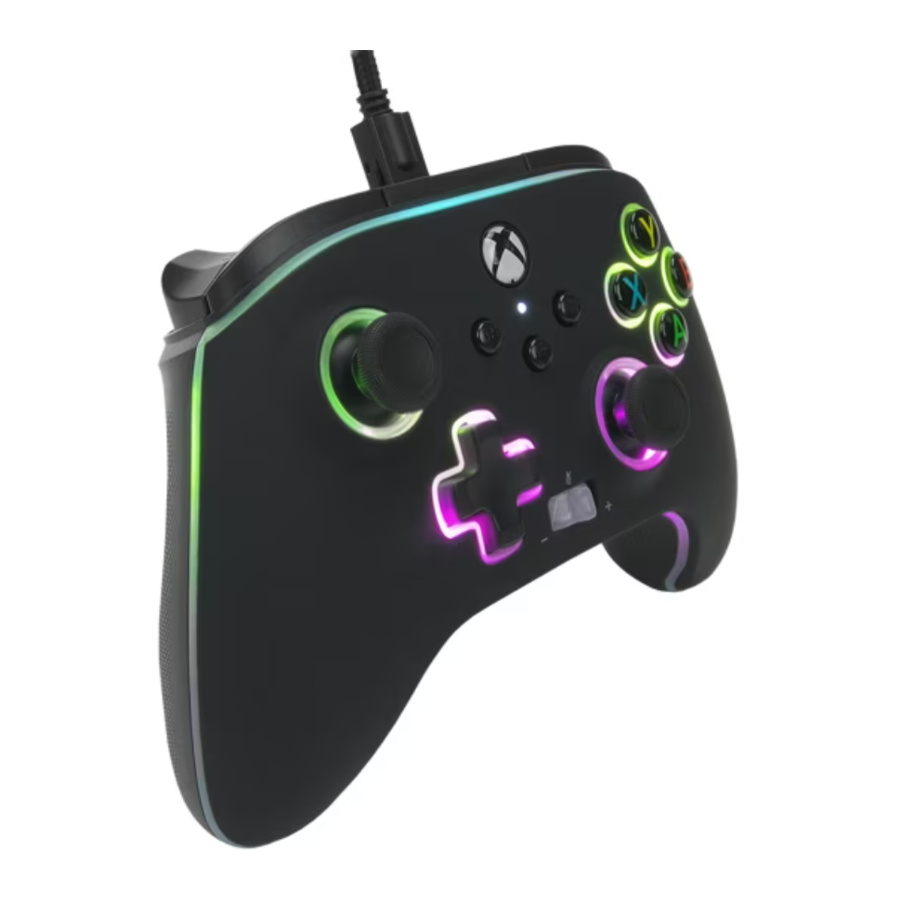

PowerA SPECTRA INFINITY - Enhanced Wired Controller for Xbox Series X/S Manual

CONTENTS

• Spectra Infinity Enhanced Wired Controller for Xbox Series X|S
• Braided 10ft Snap-Lock Detachable USB cable
• User Manual

SET UP

Connect the 10ft USB cable by plugging it into any available USB port on your Xbox console. Connect the other end to the Micro USB port on your PowerA Enhanced Spectra Infinity Wired Controller. Hold down the Xbox Button until your console powers "ON". The controller's LED Connection Indicator will illuminate to indicate your controller is connected.

NOTE: To remove cable, squeeze two side buttons near port and pull gently. USB cable also includes inline release plug closer to end of cable that will disconnect when needed. For player and controller assignment reference your official Xbox user's manual.

LED PROGRAM FUNCTION

The controller has three separate light up Spectra Zones that you can customize:

1.
   To enter LED Program Mode, hold the LED button on the back of the controller for 2 seconds. The light piping around the top housing of the controller will blink, indicating that you're now in LED Program Mode.
2.
   The programmable Zone you're in will flash 3 times. To toggle through the 3 Zones, press "Right" on the D-Pad. Note that Zone One is the default starting zone.
3.
   Select one of the A/B/X/Y buttons to choose your color: 5 shades of green 5 shades of red 5 shades of blue 5 shades of yellow
4.
   Next, continue pressing the selected A/B/X/Y button to toggle through 5 shades of that color.
5.
   Next, press "Left" on the D-Pad to program the zone's light effect, either "breathing" or solid.
6.
   You can also press "UP" and "DOWN" on the D-Pad to select one of ten brightness levels.
7.
   To exit Program Mode, hold the LED button for 2 seconds. All 3 LED Zones will flash 3 times to indicate you are now out of LED Program Mode.
8.
   To quickly turn off the LEDs completely, just press the LED Program Button once. Press again to turn the Spectra lighting feature back on.

TAP OR HOLD TO ADJUST WIRED HEADSET VOLUME (LEFT-DOWN, RIGHT-UP)

PRESS TO MUTE (RED) OR UNMUTE CHAT IN WIRED HEADSET.

TRIGGER LOCKS

• Adjust pull-distance of the triggers by sliding lock switch on back to the left or right
• Each trigger can be adjusted separately

ASSIGNING ADVANCED GAMING BUTTONS

1. Press and hold the Program Button for 2-3 seconds on the back of the controller. The program LED indicator will flash, signaling the controller is in assign mode.
2. Press 1 of the following buttons (A/B/X/Y/RB/LB/RT/LT/ Left Stick Press/Right Stick Press/D-pad) to re-assign. Then press the Advanced Gaming Button (AGR or AGL) that you wish to assign. The Program LED indicator will stop flashing, signaling the Advanced Gaming Button has been set.
3. Repeat for the remaining Advanced Gaming Button.

NOTE: Advanced Gaming Button assignments will remain in memory even after disconnected.

RESETTING ADVANCED GAMING BUTTONS

1. Hold the program button down for 2-3 seconds. The LED Connection Indicator will slowly flash, signaling the controller is in program mode.
2. Press and hold the assigned AGR/AGL Button for 5 seconds to reset to no function.

USING THE SHARE BUTTON

Refer to Xbox documentation for details on functions and features related to the Share button.

USING THE HEADSET DIAL

Once you plug the 3.5mm jack from your headset into the controller, Dial will become active and LED will turn red to indicate chat is muted. Press down on dial to mute/ unmute chat. To adjust volume, tap left or right to adjust step by step, or press and hold left or right to adjust volume to full up or full down.

NOTE: Audio controls within Xbox Settings will take first priority, followed by the the Headset dial, and finally any audio or mute controls on your headset. Refer to your Xbox and headset documentation for additional details.

TROUBLESHOOTING

For current FAQs, visit PowerA.com/support

Q: Controller will not connect to Xbox console?
A: Confirm your Xbox console is powered "ON".
A: Confirm your TV is set to the proper Video Input and that you can see the Xbox console interface on your TV screen.
A: Confirm cable is properly connected to you Xbox console.
A: Confirm cable is properly connected to your PowerA Enhanced Wired Controller.

Q: Controller is connected but has no function?
A: Confirm you are using the Player #1 controller. For more troubleshooting refer to your Xbox console User Manual.

READ BEFORE PLAYING

A very small percentage of individuals may experience epileptic seizures when exposed to certain light patterns or flashing lights. Exposure to certain patterns or while playing video games, may induce an epileptic seizure in these individuals. Certain conditions may induce previously undetected epileptic symptoms even in persons who have no history for prior seizures of epilepsy.

If you, or anyone in your family, have an epileptic condition, consult your physician prior to playing. If you experience any of the following symptoms while playing a video game – dizziness, altered vision, eye or muscle twitches, loss of awareness, disorientation, any involuntary movement, or convulsions – IMMEDIATELY discontinue use and consult with your physician before resuming play.

MOTION WARNING

Playing video games can make your muscles, joints, skin or eyes hurt. Follow these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, skin irritation or eyestrain:

• Avoid excessive play. Take a 10 to 15 minute break every hour, even if you don't think you need it. Parents should monitor their children for appropriate play.
• If your hands, wrists, arms or eyes become tired or sore while playing, or if you feel symptoms such as tingling, numbness, burning or stiffness, stop and rest for several hours before playing again.
• If you continue to have any of the above symptoms or other discomfort during or after play, stop playing and see a doctor.

CONTACT/SUPPORT
For support with your authentic PowerA accessories, please visit PowerA.com/Support.

MANUFACTURED BY
ACCO Brands USA LLC
4 Corporate Way, Lake Zurich, IL 60047
ACCOBRANDS.com
POWERA.com
