Related Manuals for PETKIT PURA MAX
Summary of Contents for PETKIT PURA MAX

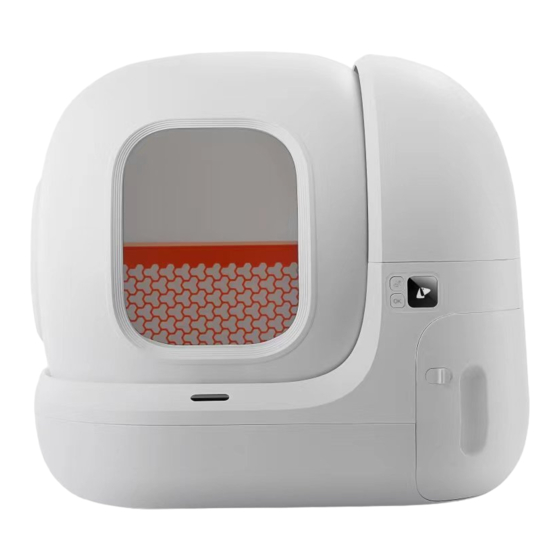

- Page 1 USER MANUAL PETKIT PURA MAX SELF-CLEANING CAT LITTER BOX Please read the User Manual carefully before using the product and keep it properly. V1.0-08/2023...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product List Product Description Product Installation How to Use Cleaning and Maintenance Video Guide Basic Specifications A Message to Our Valued Customers User Safety Guide... -
Page 3: Product List
RETURN TO CONTENTS PRODUCT LIST *Please ensure that all accessories are present before installation and use. Main Unit Accessories Power Adapter Trash Bag USER MANUAL Odor Eliminator N50 User Manual Cat Litter Remover... -
Page 4: Product Description
RETURN TO CONTENTS PRODUCT DESCRIPTION Cylinder Magnetic Side Cover Side Cover Menu Button Litter Si er OLED Display Proximity Power Port Sensor Waste Container Container Lock OK Button *Note: In order to provide the best experience possible, we periodically update our products with various improvements. -
Page 5: Product Installation
RETURN TO CONTENTS PRODUCT INSTALLATION 3.1 Installing Waste Container ① Open the latch to the right and pull out the waste container; open its lid to take out accessories. Unlocked ② Spread the trash bag evenly and press it into the bottom of the waste container, and close the lid of the container. - Page 6 RETURN TO CONTENTS ③ Take out the Odor Eliminator N50 and ④ Re-install the waste container to the put it into the groove and press the silicone main unit and close the latch. lid to firmly closed. OPEN Locked ⑤ Take out the power adapter, insert it into the power port on the back of the main unit, and then plug in.
- Page 7 RETURN TO CONTENTS 3.3 Pouring Cat Litter ① A er plugging in and starting up, ② Pour in cat litter when the cylinder shortly press to switch to opening faces up and stays still, and “Maintenance Mode”. Shortly press shortly press to exit “Maintenance to activate the mode.
-
Page 8: How To Use
RETURN TO CONTENTS HOW TO USE 4.1 Operating Main Unit Button usage Long press : Turn on/o · Short press: Switch functions and the · screen will display the selected function. OLED display Short press: Execute the selected · function. Function Description 立即清理... - Page 9 RETURN TO CONTENTS 4.2 Display Indication Status Indication Light status Network status 今日如厕 增加重量 Total cat toileting Real-time weight of times of the day the cat in the litter box Fault Indication 未安装净味器 启动失败， 请检 Please check the installation Please turn the cylinder of odor purifier knob on the back of the main unit to the locked position.
- Page 10 Android Store ② Add the device Open the downloaded “PETKIT” App and navigate to the home page; Tap the “+” button in the top right corner to add the device. Select “PETKIT PURA MAX SELF-CLEANING CAT LITTER BOX”. 9:41...
- Page 11 RETURN TO CONTENTS ③ Start connection Tap the Menu button on the device and switch to “Configure network”. Tap the OK button to initiate connection. The screen will display “Connecting...”, and the App will start connecting to the device. Please wait until the configuration is successful. Note: To enhance user experience, occasional so ware upgrades may occur so that the app interface may vary.
- Page 12 RETURN TO CONTENTS ④ Read usage guide To ensure the safety of your pet and the correct usage of this product, please read the usage guide carefully to use the product properly a er successfully connecting it to the App for the first time. Note: To enhance user experience, occasional so ware upgrades may occur so that the app interface may vary.
- Page 13 4.4 Smart Control via App ① Viewing device status Click “PETKIT PURA MAX” on the device list on the home page to enter the device’s home page and take a look at its working status, toileting times of the day as well as remaining cat litter.
- Page 14 Odor removal now: Click it to deodorize. Light: Click it to turn on the light to check the conditions of your fur baby or the inside of the cylinder. *PETKIT AIR PURIFIER SMART SPRAY needs to be purchased separately. -14-...
- Page 15 4.5 Using Odor Removal Device Click “Bind Smart Spray” on the home page, or click “SUPER ODOR REMOVAL” in settings to bind PETKIT AIR PURIFIER SMART SPRAY (optional choice). ① Odor removal: Odor removal is automatically performed a er your fur baby toilets to keep air fresh.
- Page 16 RETURN TO CONTENTS 4.6 Other Functions’ Description ① Kitten mode: This mode needs to be turned on if you have kittens or pregnant cats at home. When this mode is on, the device will not clean itself periodically or automatically. Waste is collected by clicking “Clean now”.
-
Page 17: Cleaning And Maintenance
RETURN TO CONTENTS CLEANING AND MAINTENANCE For your cats' health, the cylinder needs regular disassembly to clean. 5.1 Emptying Cat Litter Before cleaning, please empty the remaining cat litter in the cylinder. ① Press the fasteners of the cat litter remover into corresponding holes of the litter si er. Upon hearing “Click”, the installation is done. - Page 18 RETURN TO CONTENTS 5.2 Disassembling Cylinder ① Li upward to remove the side cover. ② Disassemble lock components *Note: Please be sure to turn o or plug o the device before removing the cylinder. ③ Li upward to take down the cylinder -18-...
- Page 19 RETURN TO CONTENTS 5.3 Disassembling Litter Si er ① Open the side cover and grasp the litter ② Press it inward (as shown in Fig.2) . si er (as shown in Fig. 1) . *Note: Please be sure to turn o or plug o the device before removing the cylinder.
- Page 20 RETURN TO CONTENTS 5.4 Cleaning Main Unit ① Wash the cylinder and litter si er, which is suggested to add moderate amounts of detergent and rinse them thoroughly. ② Use a wet towel to wipe the surface and interior of the main unit, ensuring the sensor remains clean.
- Page 21 RETURN TO CONTENTS 5.5 Installing Litter Si er ① Secure the front side of the litter si er ② Grasp the litter si er and press it inward into point a. until it is slightly bent. Point a ③ Secure the other side of the litter si er ④...
- Page 22 RETURN TO CONTENTS 5.6 Installing Cylinder ① Re-install the cylinder ② Secure the buckles of the cylinder and make sure they are firmly fastened. ③ Screw the side cover and re-install the magnetic side cover. -22-...
-
Page 23: Video Guide
Please copy the video URL and open it in your browser to view the video. https://youtu.be/r9Hg3WPaqkg 6.3 Installation & Usage Video for PETKIT AIR PURIFIER SMART SPRAY Please copy the video URL and open it in your browser to view the video. -
Page 24: Basic Specifications
A MESSAGE TO OUR VALUED CUSTOMERS · Thank you for choosing the PETKIT PURA MAX SELF-CLEANING CAT LITTER BOX. PETKIT is committed to creating a better life for you and your fur babies with high-tech products. · Please read the User Manual carefully before installing and using the product. Any installation and usage indicates that you have carefully read and accepted the User Safety Guide below. -
Page 25: User Safety Guide
RETURN TO CONTENTS USER SAFETY GUIDE *Failure to follow the safety guides outlined below can result in product malfunction or other unforeseen losses. · Please install and use the product as instructed in the User Manual. · Kittens under six months of age and cats weighing less than 1.5kg are not recommended to use this product.
