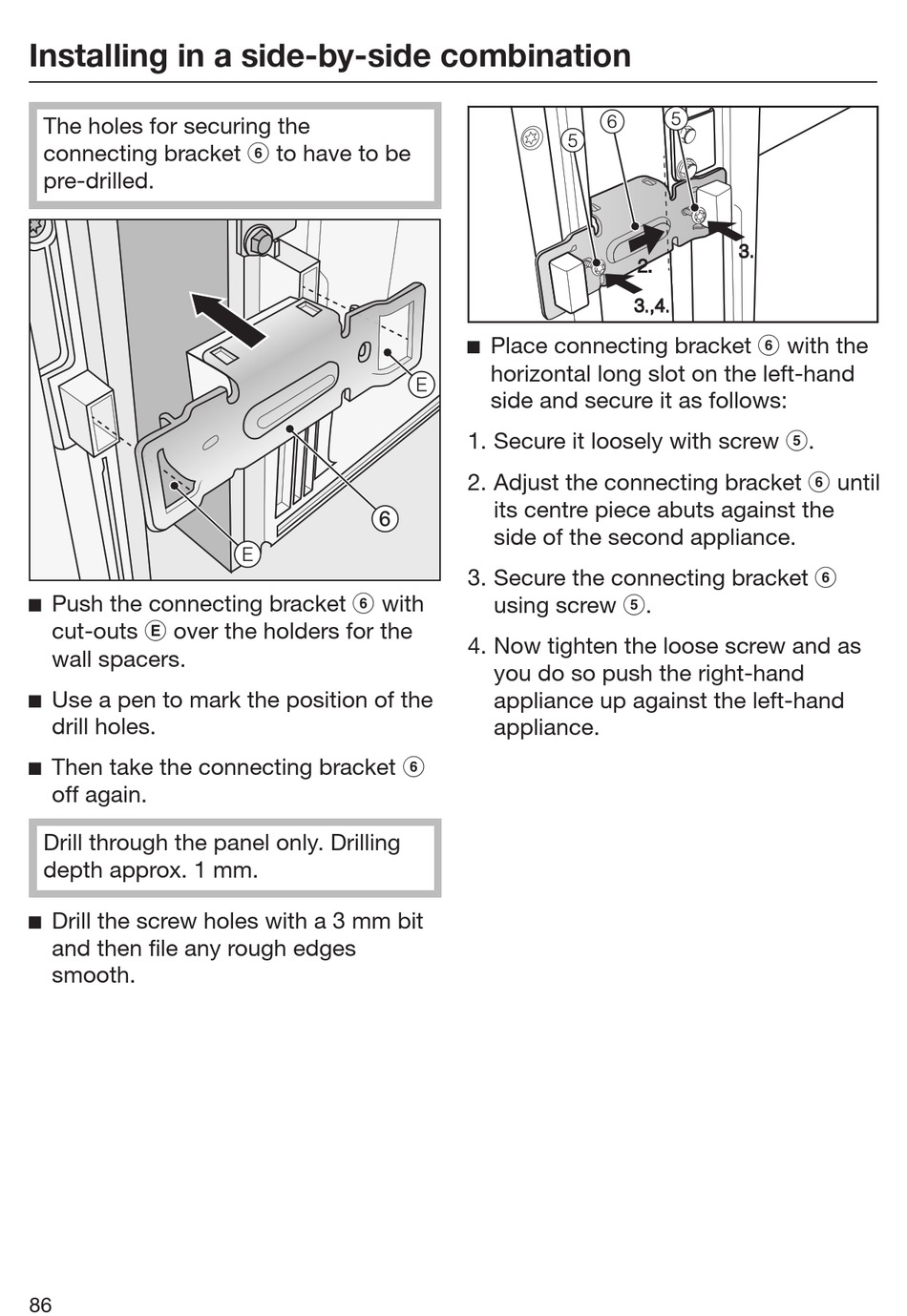

Installing in a side-by-side combination
The holes for securing the
connecting bracket to have to be
pre-drilled.
Push the connecting bracket with
cut-outs over the holders for the
wall spacers.
Use a pen to mark the position of the
drill holes.
Then take the connecting bracket
off again.
Drill through the panel only. Drilling
depth approx. 1 mm.
Drill the screw holes with a 3 mm bit
and then file any rough edges
smooth.
86
Place connecting bracket with the
horizontal long slot on the left-hand
side and secure it as follows:
1. Secure it loosely with screw .
2. Adjust the connecting bracket until
its centre piece abuts against the
side of the second appliance.
3. Secure the connecting bracket
using screw .
4. Now tighten the loose screw and as
you do so push the right-hand
appliance up against the left-hand
appliance.
