3.

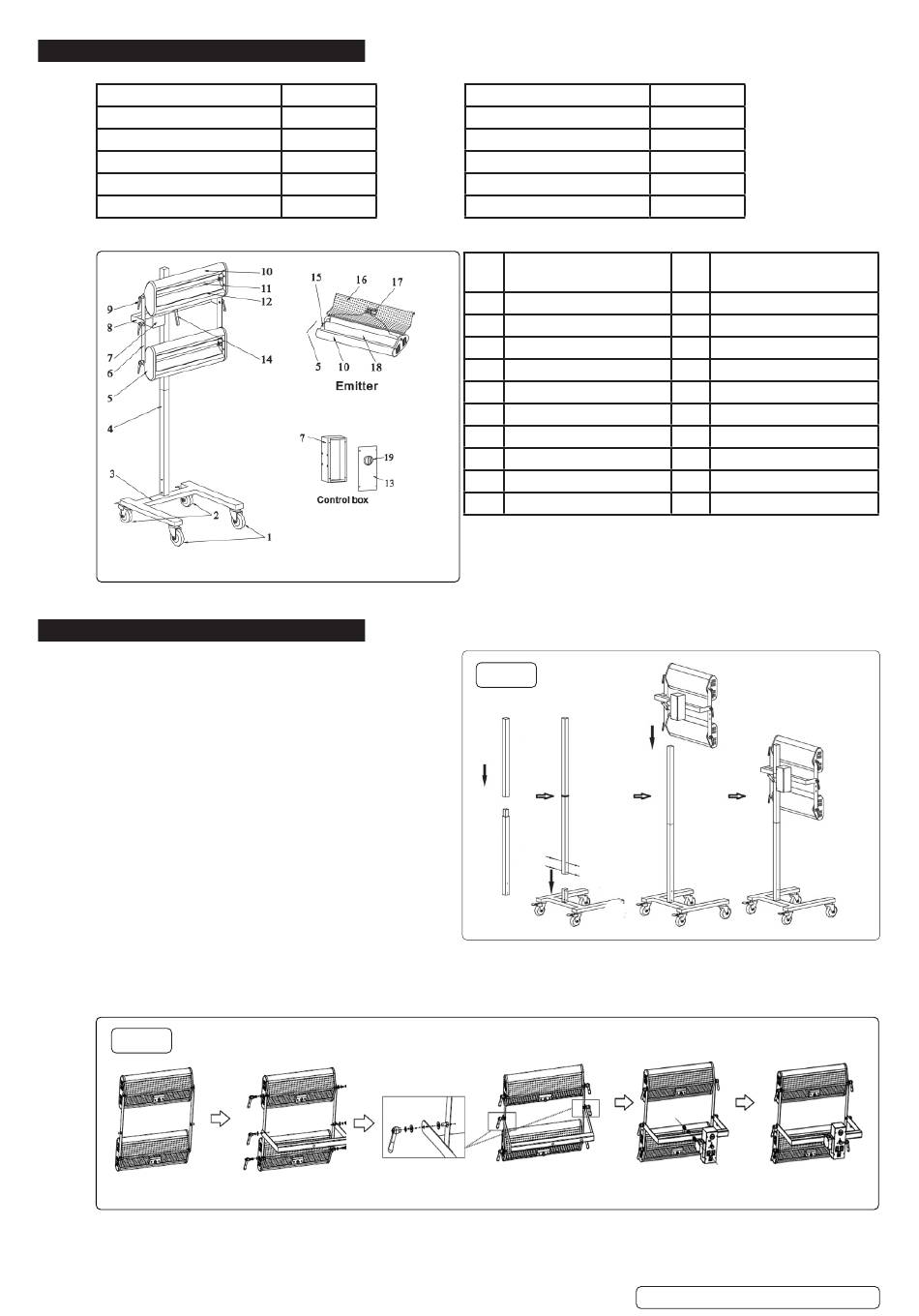

SPECIFICATION
Model No:
Element Power:
Fuse Rating:
Plug Type:
Power Supply Cable Length:
Reflector Size:
4.
ASSEMBLY
4.1.
BASE FRAME ASSEMBLY (fig.1)
4.1.1.
Take out two parts of the post, peel off the sticker and
insert the upper section (fig.1.3) into the lower
section (fig.1.2) as indicated by the arrow direction (fig.1).
4.1.2.
Take out the pedestal (fig.1.1), insert the mounting post into
the pedestal properly, and securely tighten the screws.
4.1.3.
Fix the locking hoop (fig.1.4) onto the post, placing the lamp
cassette to the front, and then tighten the handle.
NOTE: Ensure that all fixings are securely located and the
unit is stable.
4.2.
LAMP ASSEMBLY (fig.2)
4.2.1.
Assemble lamp arrangement using the adjustment handle,
spring washer and plain washers (fig.2.C) in seven
positions shown.
4.2.2.
Assemble post mounting section using adjustment handle,
spring washer and plain washers in position shown (fig.2.F).
fig.2
A
© Jack Sealey Limited
IR2000S
2100W
13A
3-Pin BS
3.7m
530 x 140mm
C
B
Original Language Version
Model No:
No. of Elements:
Optimal Baking Area:
Operating Temperature (°C):
Timer Range:
Supply:
Item
Description
no.
1
Front castor wheel
2
Back castor wheel
3
Pedestal
4
Post
5
Side panel of emitter
6
Connectors (left and right)
7
Control box
8
U shape support
9
AM8 adjustable handle
10
Bent plate
fig.1
4
3
2
1
D
IR2000S
2 x 1050W
0.6m x 0.8m
60-70°C
0-30min
230V ~50Hz
Item
Description
No.
11
Emitter tube
12
Front protective net
13
Control Panel
14
AM12 adjustable handle
15
Small reflective panel
16
Rear panel
17
Ceramic connector
18
Reflective panel
19
Timer
E
F
IR2000S
Issue:3
12/06/23
