Sealey VSAC135 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
WARNING! Any work carried out on the A/C system should only be performed by an Air Conditioning service technician following
‰
the vehicle manufacturer's service instructions or a proprietary manual to establish the current procedure and data.
DO NOT use if damaged.
8
Dispose of refrigerants according to local authority guidelines.
9
DO NOT Allow refrigerant to vent to atmosphere.
8
Maintain in a good condition for prolonged life and safe use.
9
Wear suitable eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9
Wear suitable protective clothing and gloves when working with refrigerant.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Account for all tools and parts being used and DO NOT leave them on or near the engine.
9
On completion of work, put the equipment back and store in a cool, dry, childproof location.
9
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
‰
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product,
but must be applied by the operator.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions, or a
proprietary manual, to establish the current procedure and data.
2. INTRODUCTION
Designed to be suitable for a wide variety of vehicle air conditioning systems. Allows systems to be pressured for the purposes of leak testing
prior to repair and re-gassing. Connectors included for both high and low pressure fittings.
3. CONTENTS
Refer to attached Parts List for model numbers and contents descriptions.
© Jack Sealey Limited

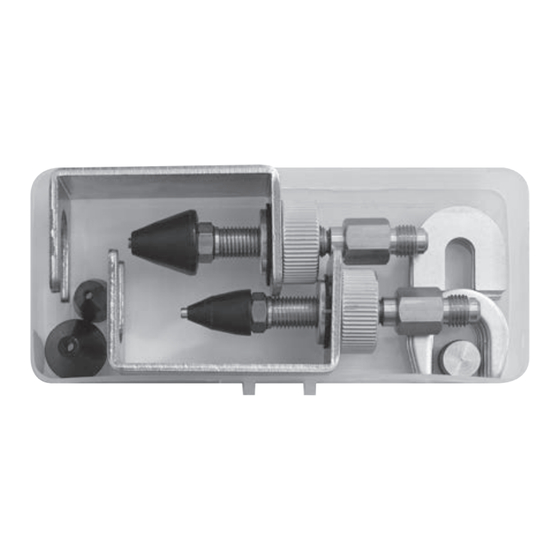

13 PC AIR CONDITIONING PRESSURE TEST
CONNECTOR KIT
MODEL NO:
Wear safety
Wear protective
gloves footwear
Original Language Version
VSAC135
Wear protective
clothing
Forcing Nut
Clamp Screw
Clamp Assembly
VSAC135 Issue 2 (ALL) 17/05/23
Sealing
Cone
