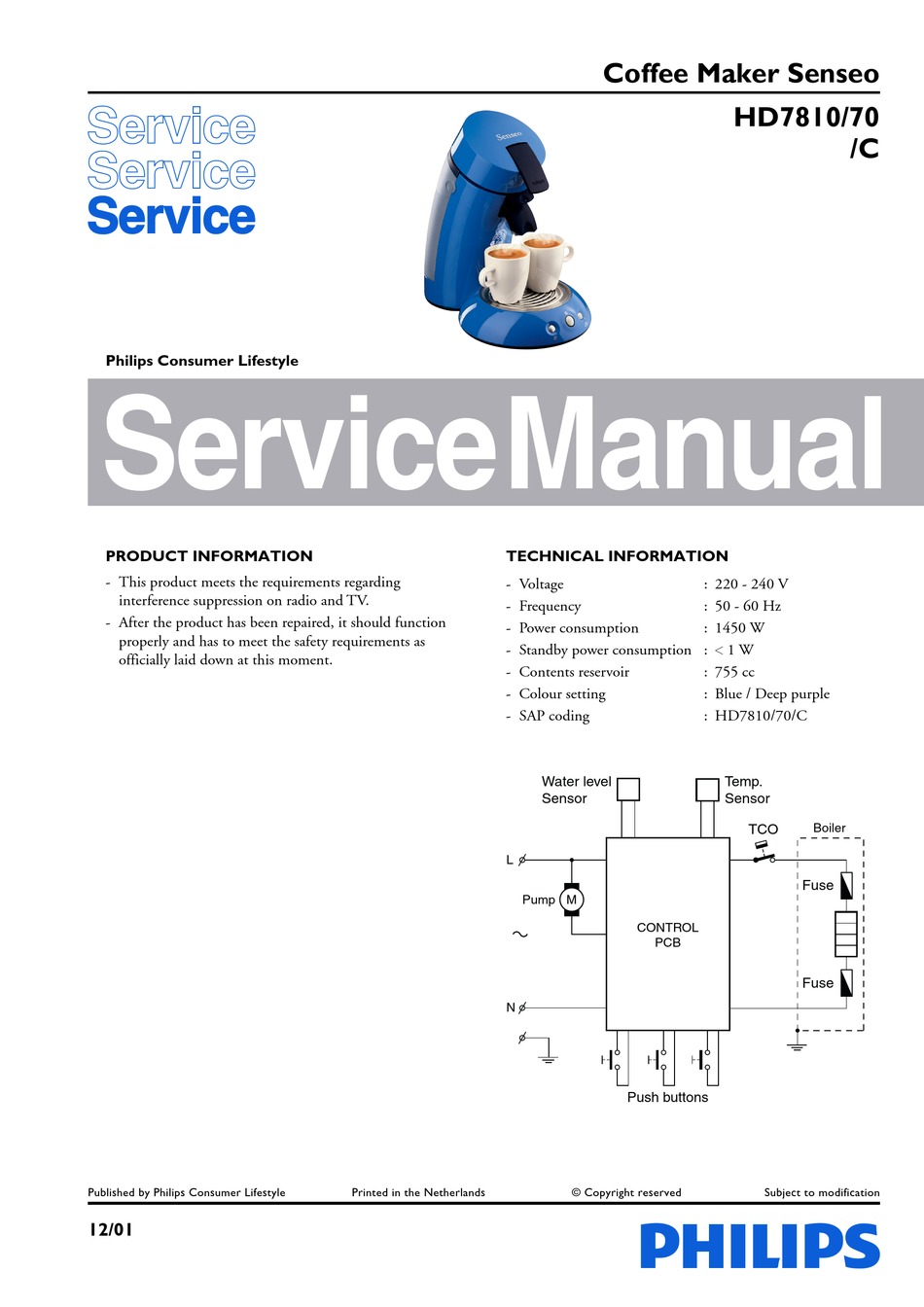

Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
12/01
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : 1 W
- Contents reservoir
- Colour setting
- SAP coding
L
Pump M
N
Printed in the Netherlands

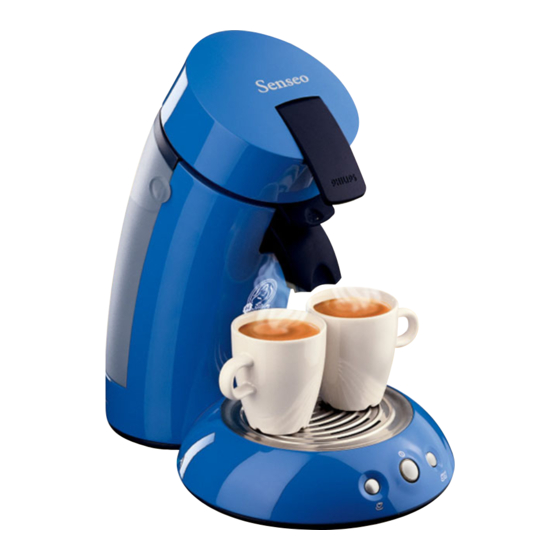

Coffee Maker Senseo
: 220 - 240 V
: 50 - 60 Hz
: 1450 W
: 755 cc
: Blue / Deep purple
: HD7810/70/C
Water level
Sensor
CONTROL
PCB
Push buttons
© Copyright reserved
HD7810/70
/C
Temp.
Sensor
Boiler
TCO
Fuse
Fuse
Subject to modification
