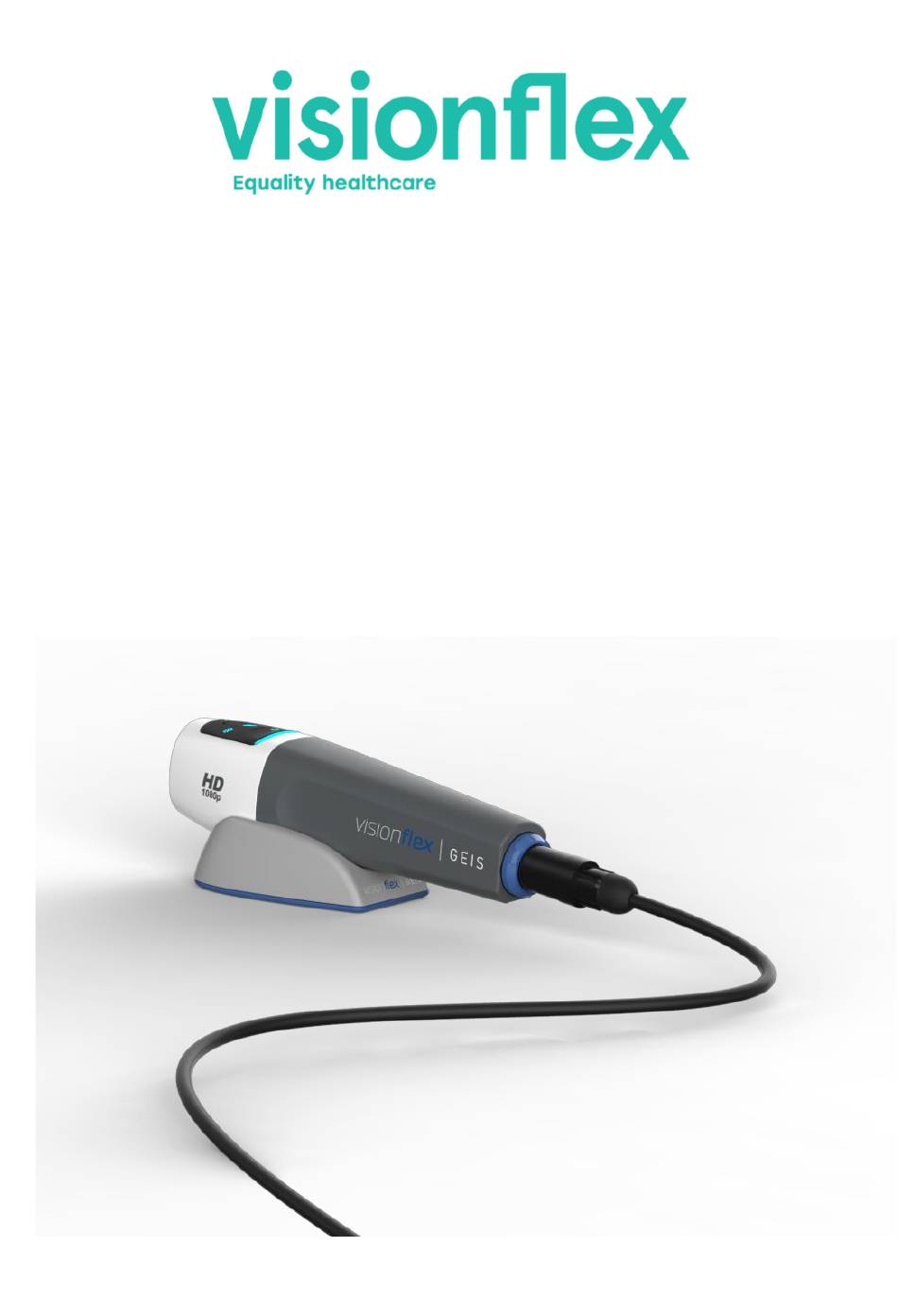

- Page 1 GEIS® General Examination Camera USER MANUAL Connecting patients with doctors using quality images VFGEISMAN1.08 © March 2022...
- Page 2 VFD-1003-OP-0001 Version 2.6 Page 2 of 25...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ....................3 STANDARD SYSTEM CONTENTS ................4 PRODUCT DESCRIPTION ................... 6 BASIC SAFETY INSTRUCTIONS ................... 8 INTENDED USE AND INDICATIONS FOR USE ............. 9 ....................10 NTENDED SERS INSTALLATION AND OPERATION ................10 ................10 CONNECTION OF THE USB CABLE ................11 UNCTIONS AND ONTROLS... -
Page 4: Standard System Contents
System) General Examination Camera base unit VFGEISCABLE1 1.5m cable with USB 2.0 Type A connector VFGEISDOCK1 Docking Station (Desk or Wall mounting) Derma Hood VFGEISDRMH1 GEIS 20 cm Reference Stick VFGRS2 VFGEISTDA1 Tongue Depressor Adapter GETD0001 Wooden tongue depressors GEIS User Manual VFGEISMAN1... - Page 5 Camera base unit 1.5m cable with USB 2.0 VFGEISCABLE1 Type A connector Docking Station (Desk VFGEISDOCK1 or Wall mounting) VFGEISDRMH1 Derma Hood VFGRS2 GEIS 20 cm Reference Stick Tongue Depressor VFGEISTDA1 Adapter Wooden tongue GETD0001 depressors VFGEISMAN1 GEIS User Manual...
-
Page 6: Product Description
VFGHC1 The carry case has a custom foam insert for the secure storage of the all the components and elastic straps in the lid section to keep this GEIS User Manual. PRODUCT DESCRIPTION The GEIS General Exam Camera, is a high... - Page 7 The camera may be conveniently placed on the desk or wall mounted docking station which features an automatic standby function, switching off the white LEDs and Video output. This enables the GEIS to be ready in seconds to examine the next patient when lifted.
-
Page 8: Basic Safety Instructions
Keep the original packaging. Transport the device in its original packaging and use it to return goods if service support is required. If users detect any faults or malfunctions, Visionflex must be informed immediately. WARNING: Do not make any unauthorised modifications to the device. Risk of serious injury to persons. -
Page 9: Intended Use And Indications For Use
Ensure tongue depressor adapter is fitted correctly. INTENDED USE AND INDICATIONS FOR USE The GEIS General Examination Camera is a non-invasive medical grade camera for the general visualisation of the patient, including skin colour and the oral cavity. -
Page 10: Intended Users
Start the image/video capture program (not supplied with GEIS system). Select the camera identified as: VF GEIS HD from the list of devices and continue with the video streaming or picture capture process. -
Page 11: Functions And Controls
2 seconds. To disable vibration, hold it down for approximately 5 seconds until you feel a double vibration (the GEIS will capture an image and beep but continue to hold until you feel the double vibrate alert). This will... -
Page 12: Capturing Still Images , Streaming And Recording Live Video
ST REAMING AND RECORDING LIVE VIDEO To capture still images and record video: Images: Press the image capture button on the GEIS keypad to capture a still image (if your software permits). Otherwise use the photo/image capture or “still feature” in your software using the on-screen controls. -
Page 13: Connecting The Tongue Depressor Adapter
• Hold the GEIS General Examination Camera body in your hand • Clip the derma-hood onto the front white section of the GEIS – it will click into position (removal is achieved by gentle pulling) • Hold the front surface of the derma-hood on the patient’s skin blocking out external light (this provides a repeatable light source colour/brightness to give consistent images). -
Page 14: Cleaning And Disinfection
(C O) when required for infection control. Do NOT use other cleaners or solvents, they could damage the paint, labels or the GEIS seals/connector. Do not use wet sponges or cloths since this could lead to liquid- ingress and reach the electrical parts which could lead to injury and cause damage to the device. -
Page 15: Product Data
(in accordance with the requirements for BF/CF applied parts defined in IEC 60601-1). Users can contact Visionflex’s service department if they have questions about compatibility with other equipment (see Section 0). VFD-1003-OP-0001 Version 2.6... -
Page 16: Technical Specifications
1.10 T ECHNICAL SPECIFICATIONS Mechanical Features Length of housing (GEIS body only) 136mm Max. diameter (GEIS body only) 37mm GEIS General Examination Camera weight (body only) GEIS weight with cable 150g Cable length 1.5m IP rating IP54 Electrical features Supply voltage DC 5v 500mA, from USB 2.0 compliant... -
Page 17: Troubleshooting
Information Supplied by the Manufacturer of EN 1041:2008 Medical Devices TROUBLESHOOTING Problem Possible cause Solution *Try disconnecting the GEIS USB cable from No Picture Chosen software not the PC/Medical Device. Re-load/restart the working or GEIS General chosen compatible software and re-connect Examination Camera not the USB cable. -
Page 18: Technical Support And Repair
*Try the manual focus by pressing the < or > Examination Camera target or target is moving. buttons on the GEIS keypad. This will override picture out of focus or Range 5cm to 3m approx. the auto-focus function until you disconnect the USB plug or force a reset by pressing and auto-focus “hunting”... -
Page 19: Warranty
WARRANTY Visionflex commits to a 12 month ‘Back to Base’ (Return to Supplier) warranty on the functionality of the GEIS General Examination Camera . This warranty is restricted to claims presented within the warranty period starting from the invoiced date of purchase of the GEIS General Examination Camera . -
Page 20: Disposal
DISPOSAL When disposing of or recycling the device and its components, you must adhere to the applicable national regulations governing waste disposal and recycling in your region. Any device carrying this symbol must be disposed of separately through dedicated electrical and electronic devices recycling. Within the EU, such disposal is taken care of by the manufacturer, free of charge. -
Page 21: Information About This Document
INFORMATION ABOUT THIS DOCUMENT The User Manual applies to the following device: Description: GEIS General Exam Camera These instructions for use are an integral component of the device and contain all the information required by users for safe and proper use. -
Page 22: Key To Symbols
KEY TO SYMBOLS Symbol Title WARNING: Indicates the need for the user to consult the user manual for important warnings that cannot be presented on the medical device itself. CAUTION: Indicates the need for the user to consult the user manual for important cautionary information that cannot be presented on the medical device itself. - Page 23 CE mark. The device satisfies the requirement of the MDR 2017/745 VFD-1003-OP-0001 Version 2.6 Page 23 of 25...
- Page 24 Notes: VFD-1003-OP-0001 Version 2.6 Page 24 of 25...
- Page 25 After Sales and Technical Support: Int: +61 2 8914 4000 support@visionflex.com Visionflex Pty Ltd Unit 1, 8 Prosperity Parade WARRIEWOOD, NSW, 2102 AUSTRALIA Phone: +61 2 8914 4000 Email: info@visionflex.com Website: www.visionflex.com MT Promedt Consulting GmbH Altenhofstrasse 80 66386 St. Ingbert...
