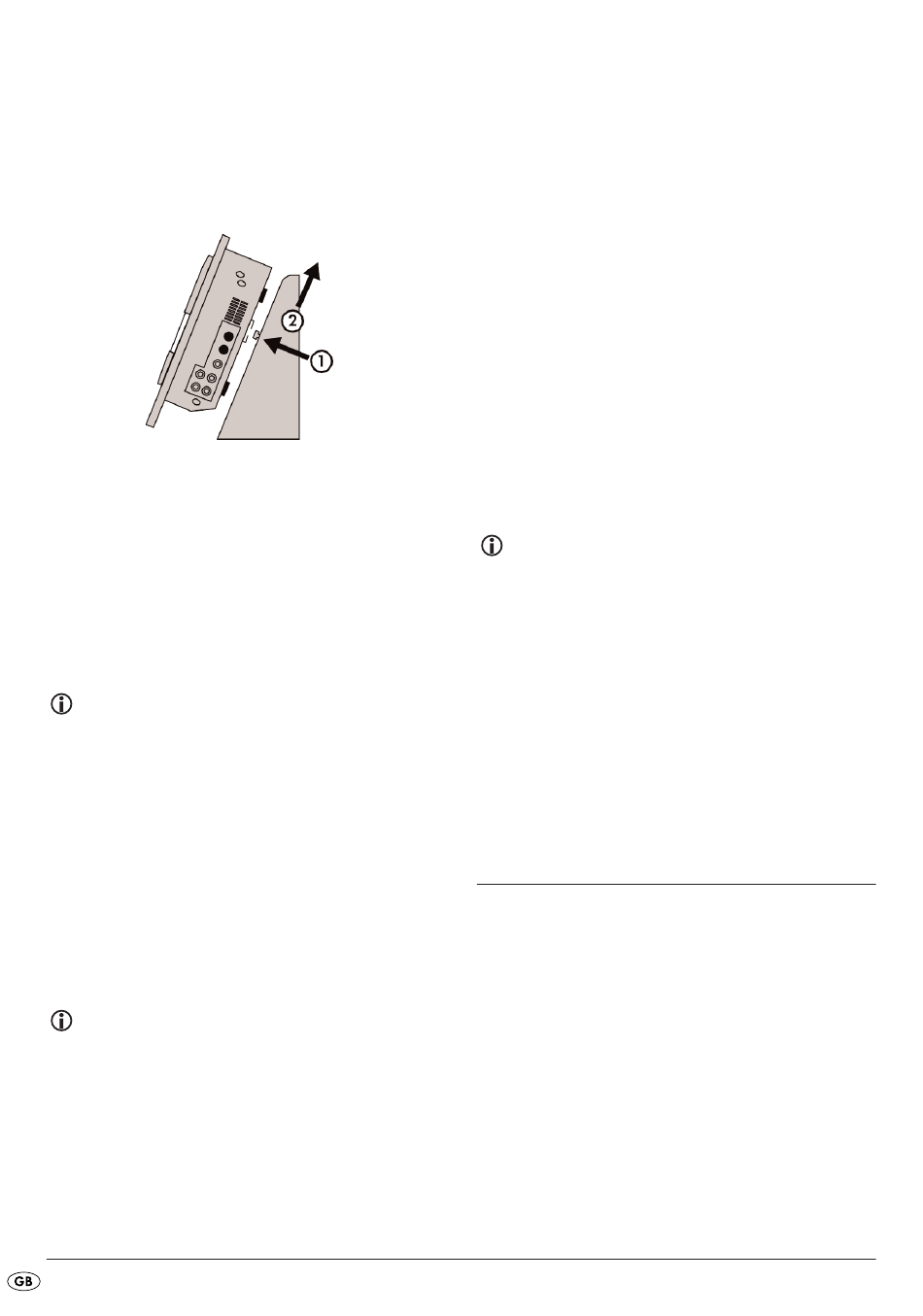

Vertical set-up
1.
If you wish to set the micro system up vertically,
insert the supplied consoles into the key slots
on the rear of the micro system and then slide
the console as far as they will go onto the micro
system.
The micro system can now be set-up vertically.
2.
Place the loudspeakers to the left and right of
the micro system, appropriate to the loudspeaker
connections.
Wall mounting
You can mount the micro system and the loudspeakers
against a wall.
Note:
Mount the device and the loudspeakers only to
a solid wall.
1.
Drill the screwholes, with a horizontal spacing
of 19 cm from each other, into the wall for the
micro-system.
2.
Drill the screwholes for the loudspeakers into
the wall, 35 mm above those for the micro
system and at a distance of at least 7 cm from
the right and left sides of the micro system.
Note:
To ensure that the screws can tightly hold the
mountings on the back of the micro-system/
loudspeakers, the screw heads must protrude
out of the wall by approx 3 mm.
3.
Subject to the composition of the wall, secure
the screws into the wall with the help of wall
plugs.
4.
Mount the micro system/loudspeakers onto the
screws with the key slots.
Inserting batteries into the remote
control
For the remote control you require two batteries, 1.5 V
Type Micro AAA/R03 (batteries supplied).
1.
Open the battery compartment on the rear of
the remote control.
2.
Insert the batteries, ensuring their positionings
comply with the polarity markings given in the
battery compartment.
3.
Carefully close the battery compartment lid
until it clicks into place.
Interaction with batteries
Leaking batteries can cause damage to the
device.
• If you do not intend to use the device for an
extended period, remove the batteries.
• Always change all batteries at the same time
and always use batteries of the same type.
• Should the batteries leak, wear protective
gloves and clean the battery compartment
with a dry cloth.

Assembly

Loudspeakers
Both loudspeaker leads have a cinch plug at each
end.
1.
Connect the cinch plug of the right loudspeaker
with the loudspeaker connection
2.
Connect the cinch plug of the left loudspeaker
with the loudspeaker connection
- 24 -
SPEAKER OUT R
.
SPEAKER OUT L
.
