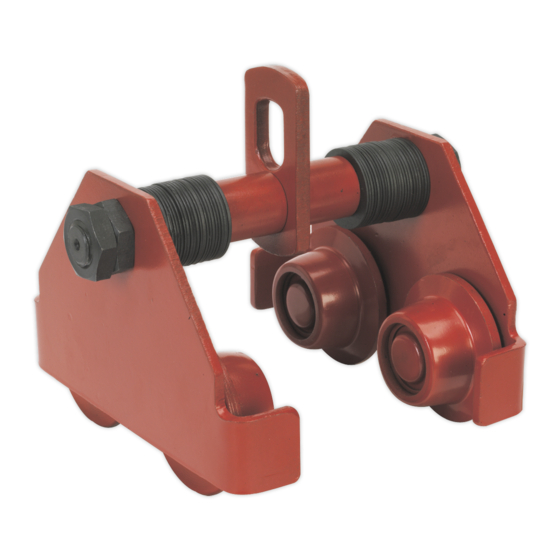

Sealey PT500.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/
OR PERSONAL INJURY
Refer to
instruction
manual
1. CONTENTS
Section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 2.2. Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 3. Safety / Operational Instructions. . . . . . . . . . . . . . . . . .2.
Section 4. Maintenance / Examination / Inspection. . . . . . . . . . . .2.
Section 5. Assembly and storage. . . . . . . . . . . . . . . . . . . . . . . . . .3.
Section 6. Owner's & Operator's Responsibilities . . . . . . . . . . . . .3.
SEE TABLE BELOW
Model Capacity
PT500.V2 500kg
PT1000.V2
1000kg
PT2000.V2 2000kg
PT3000.V2 3000kg
Model
PT500.V2
PT1000.V2
PT2000.V2
PT3000.V2
TROLLEY PLAIN
MODEL No's:
AND WILL INVALIDATE THE
Min/Max.
Test Load I Beam
Width
750kg 64-140mm
1500kg 64-140mm
3000kg 76-165mm
4500kg 76-203mm
Minimum
Standard
Weight I-Beam
Dimensions
(D X W X Web):
7kg 125 x 75 x 5.5mm
13kg 125 x 75 x 5.5mm
20kg 180 x 100 x 6.0mm
31kg 200 x 100 x 7.0mm
PT500.V2, PT1000.V2, PT2000.V2, PT3000.V2
WARRANTY. PLEASE KEEP
2. GENERAL
Page No.
2.1
Supplier:
Model No:
2.2 Technical Data
Rated Capacity
a) Design Capability: Test Load 50% overload.
b) For applications see Section 3.
c) For information on parts and materials requiring specialised
repair techniques see Section 4.
d) Ambient operating temperature between -10°C and +50°C.
Min. Curve
Radius
800mm 212mm
1000mm 255mm
1300mm 305mm
1500mm 344mm
Maximum
Distance
Between Spans:
3000mm
2500mm
3000mm
2700mm
Page 1
Original Language Version
PT500.V2, PT1000.V2, PT2000.V2, PT3000.V2
INSTRUCTIONS SAFE
Identification
Sealey Power Products,
Kempson Way,
Suffolk Business Park,
Bury St Edmunds,
Suffolk, IP32 7AR.
PT500.V2, PT1000.V2, PT2000.V2,
PT3000.V2
A B C
115mm 115mm
127.5mm 127.5mm
150mm 150mm
172mm 172mm
Maximum Standard
I-Beam
Dimensions
(D X W X Web):
250 x 125 x 7.5mm
250 x 125 x 7.5mm
350 x 150 x 9.0mm
850 x 150 x 9.0mm
FOR FUTURE USE.
D E
90mm 115mm
104mm 128mm
130mm 152mm
145mm 186mm
Maximum
Distance
Between Spans:
8000mm
6000mm
9000mm
4500mm
Issue:3 03/09/21
