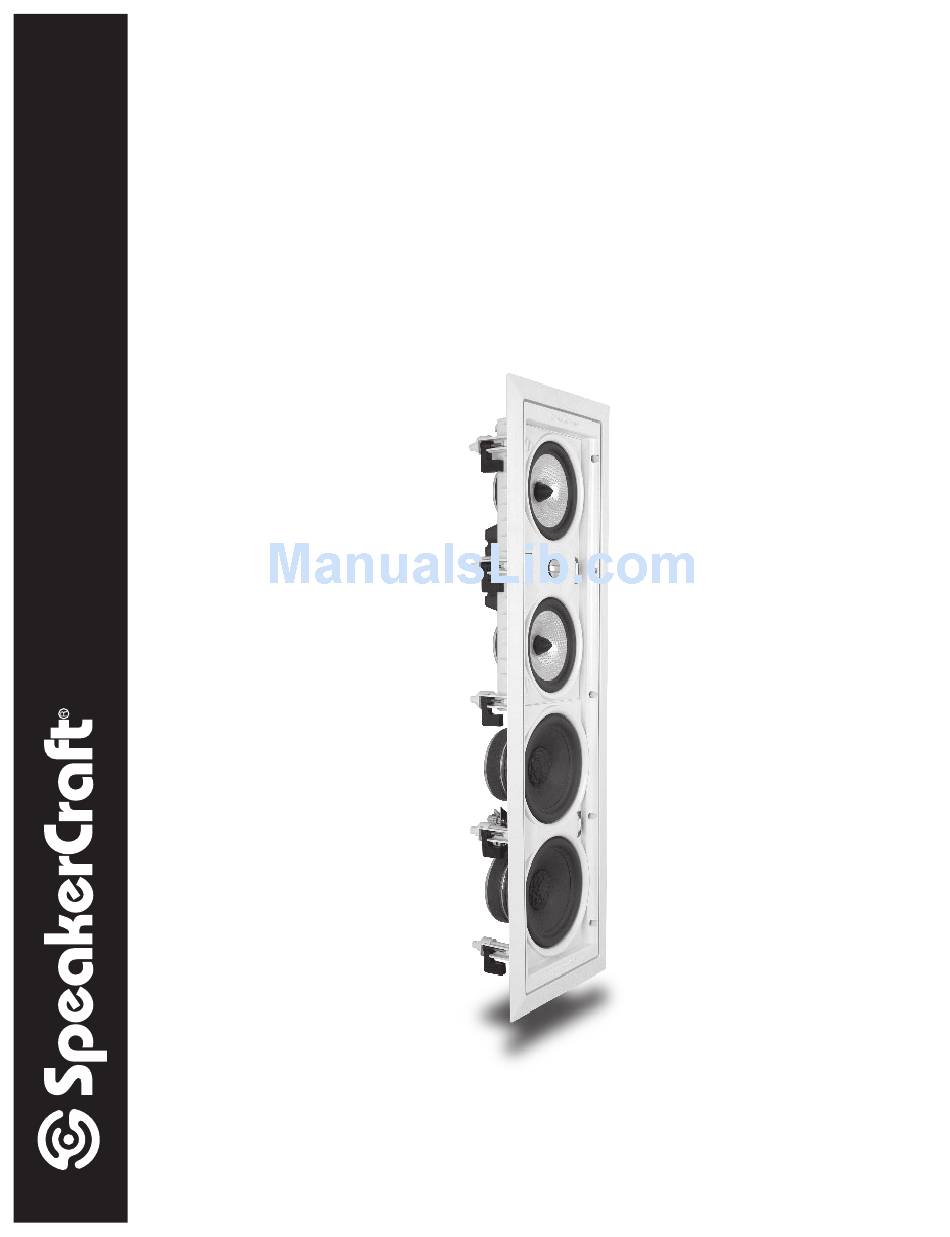

- Page 1 OWNER'S MANUAL AIM CINEMA Pivoting Home Cinema Speakers AIM CINEMA FIVE | AIM CINEMA THREE | AIM CINEMA ONE...
- Page 2 2. Placement of Center Channel For best results, a single speaker should be placed close to the screen, usually just above or below it. However, please note that the AIM CINEMAS were not designed to be used as dedicated center channels. We recommend using an alternate model such as the AIM LCR FIVE (ASM84650).
-
Page 3: Installation Considerations
Prior to the actual installation of the speakers, it will be necessary to run cables to the speaker location. See your Authorized SpeakerCraft Dealer for more information on cable installation. After the cable has been installed, you are ready to mount the speakers. -
Page 4: Speaker Installation
2. Attach the speaker cable (observing the proper polarity with your ampli- fier, + to + and – to –). Make sure the left channel of the amplifier is con- nected to the left speaker, and the right channel is connected to the right speaker. - Page 5 Figure 8 JUMPER WIRE Figure 9 BI-AMP CONFIGURATION LEFT MAIN AMPLIFIER 1 SpeakerCraft ® Model BB275 SERIAL NUMBER 3-30V A/C D/C CONTROL TRIGGER INPUT OUTPUT 3-30V A/C D/C TRIGGER CONSTANT AMPLIFIER 2 SpeakerCraft ® Model BB275 SERIAL NUMBER 3-30V A/C D/C...
-
Page 6: Speaker Adjustments
Remember that altering the impedance affects the number of speakers able to be driven by an amplifier. If multiple pairs of speakers are to be driven by one amplifier, SpeakerCraft suggests using the lowest output position (switch set to the “–” position) until it is determined that the amplifier will operate properly with the speakers switched to a higher output mode. -
Page 7: Specifications
(730.250mm x 190.500mm) ⁄ " x 4" ⁄ " x 9 (776.374mm x 234.950mm x 101.600mm) AIM CINEMA ONE 3-Way In-Wall Pivoting 1" Silk Dome (2) 5" IMG Cones (2) 6" Paper cone woofers with Kevlar fibers 8 ohms compatible... -
Page 8: Limited Lifetime Warranty
SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its sole option, may replace the unit with a current model of equal or greater value. In some cases where a new model is substituted, a modification to the mounting surface may be required.
