Sealey 1153SUV Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts. Use
9
recommended parts only. The use of improper parts may be dangerous and will invalidate the warranty.
Locate the jack in an adequate, well lit working area for its function.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely ).
9
Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.
9
Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
9
Ensure all non essential persons keep a safe distance whilst the jack is in use.
9
Ensure there are no passengers in the vehicle to be jacked up.
9
Place jack under vehicle manufacturer's recommended lifting points (see vehicle hand book).
9
Check that the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
WARNING: The jack is a lifting device only.
‰
To support the load always use axle stands (available from your Sealey stockist).
9
Ensure there are no persons or obstruction beneath the vehicle before lowering.
9
Use a qualified person to lubricate and maintain the jack.
9
Use only hydraulic jack oil.
9
When not in use store jack in a safe, dry, child proof area in the lowered position.
9
DO NOT jack vehicle which may result in spillage of fuel, battery acid, or dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT operate the jack if damaged.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up the hydraulic unit with brake fluid. Use hydraulic oil only.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT allow the vehicle to move whist lifting or lowering.
8
DO NOT use the jack to move vehicle.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
Long chassis, high capacity, portable garage jack for serious hobby or recovery vehicle use.
Suitable for SUVs, cars or light commercial vehicles which require high ground clearance.
Tough pump bracket and heavy-duty one-piece hydraulic unit with safety overload valve.
Adjustable saddle height for use with vehicles that require a higher lifting range.
Supplied with one-piece pumping handle with rubber grip.
3. SPECIFICATION
Model ....................................................................... 1153SUV
Capacity .........................................................................3tonne
Length ...........................................................................625mm
Max. chassis height .......................................................160mm
Max. saddle height ........................................................533mm
Min. saddle height .........................................................192mm
© Jack Sealey Limited

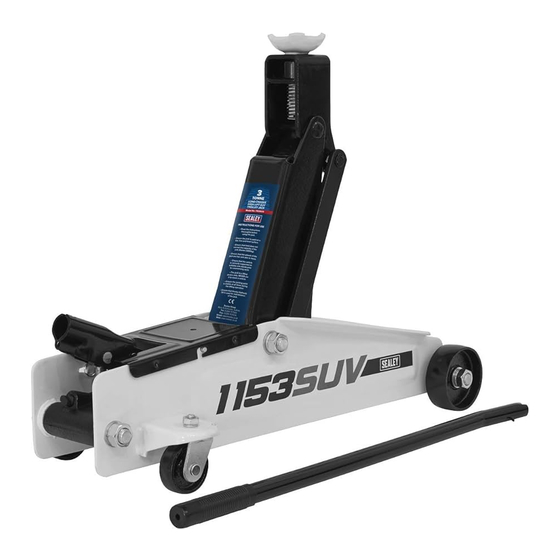

3TONNE LONG CHASSIS HIGH LIFT SUV
TROLLEY JACK
1153SUV
MODEL NO:
Original Language Version
TJL3
1 3 5
2 4 R
Use on
Chock
wheels
Close
Lower
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
1153SUV Issue 2 (3)
Apply
h ndbr ke
h rd level floor
Never
exceed
j ck c p city
R ise
OR
R ise
11/03/20
