Power Innovations
Power Inn
Power Inn
Power Inn
E E E E
n n n n
t t t t
e e e e
r r r r
p p p p
E E E E
n n n n
t t t t
e e e e
r r r r
p p p p
Enterprise Monitoring and Management
Enterprise Monitoring and Management
Enterprise Monitoring and Management
Enterprise Monitoring and Management
with Intelligent Power Distribution
with
with
with
Intelligent Power Distribution
Intelligent Power Distribution
Intelligent Power Distribution
User's Manual
The
EnterprisePlus Series
of power perfection from
Power Innovations International
The standard for
EnterprisePlus User's Manual
ovations
ovations
ovations
International, Inc.
r r r r
i i i i
s s s s
e e e e
P P P P
l l l l
u u u u
s s s s
r r r r
i i i i
s s s s
e e e e
P P P P
l l l l
u u u u
s s s s
perfect, dependable
power.
™
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

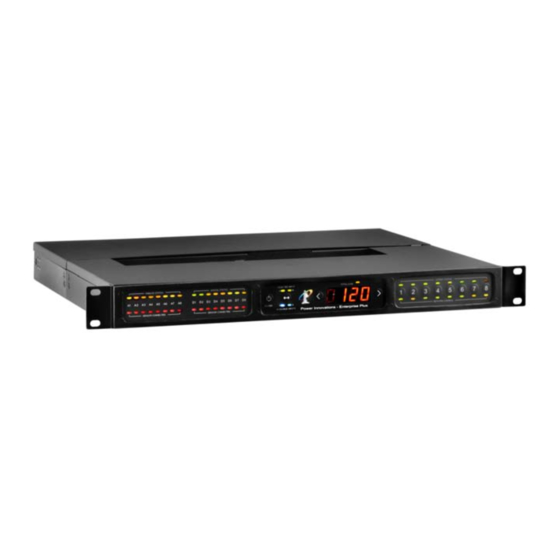

Summary of Contents for Power Innovations EnterprisePlus

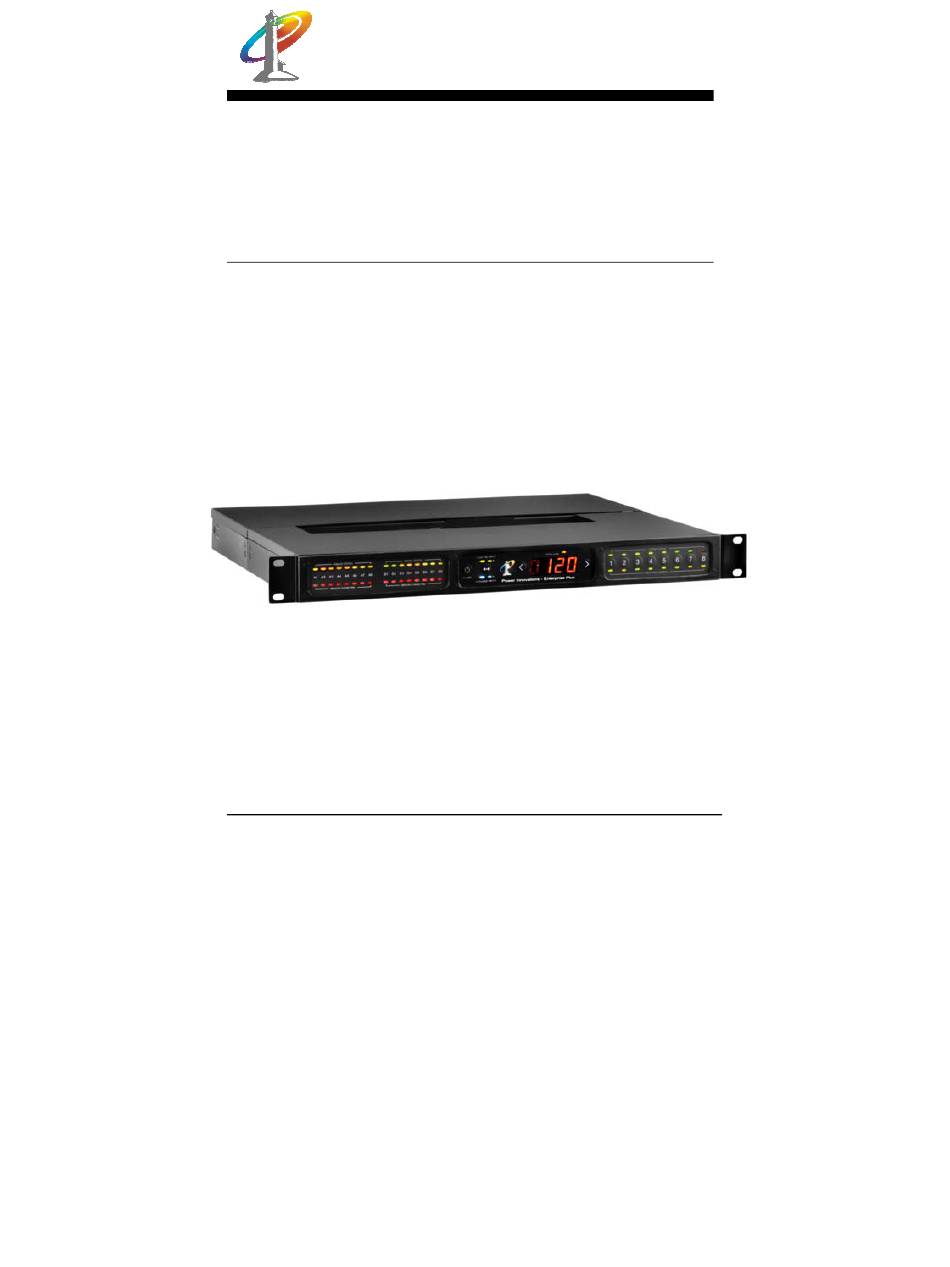

- Page 1 Enterprise Monitoring and Management with with Intelligent Power Distribution with with Intelligent Power Distribution Intelligent Power Distribution Intelligent Power Distribution User’s Manual EnterprisePlus Series of power perfection from Power Innovations International The standard for perfect, dependable power. EnterprisePlus User’s Manual...
- Page 3 Innovations”), warrants this product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at Power Innovations’ sole option) any part of the enclosed unit which proves defective for a period of one (1) year from the date of purchase.
- Page 4 “Limited Warranty” have been met. In no event will Power Innovations International Inc. be liable for any other damages arising out of the use of this unit.
-
Page 5: Table Of Contents
.............9 RONT AND 2. INSTALLATION ................10 ................10 NPACKING ............10 ARDWARE NSTALLATION ..................11 ETUP ...........13 ONNECTING ULTIPLE YSTEMS 3. OPERATION..................16 ...........16 ONSOLE BASED PERATION ............19 BASED PERATION ..........23 ONNECTION EFINITIONS 4. CUSTOMER SERVICE ..............28 ................28 AINTENANCE ..............28 ROUBLESHOOTING EnterprisePlus User’s Manual... -
Page 6: Fcc Information
EnterprisePlus system(s). Follow all operating instructions. For safety, obey all warnings within this manual. Failure to do so may void the warranty. The EnterprisePlus system must be supplied with an AC power supply, incorporating an earth/ground. EnterprisePlus User’s Manual... -
Page 7: Tuv Safety Statement
For hard-wired installations, ensure correct polarity. Install the EnterprisePlus system near an AC output to ensure easy access. The EnterprisePlus system is intended for installation in a controlled environment. DO NOT open the cover, as there are no user serviceable parts inside. -
Page 8: Important Safety Instructions
Important Safety Instructions Read and save these Instructions! This manual contains important instructions that should be followed during installation and for maintenance of the EnterprisePlus system. CAUTION Install EnterprisePlus system(s) in a temperature-controlled indoor environment where it is free of conductive contaminants. -
Page 9: Introduction
Power Distribution Unit (PDU) that can be connected locally or remotely. Technology and Innovation The EnterprisePlus utilizes eight (8) power control circuits to control and monitor the connected load. These circuits allow sequencing (turning ON or OFF) of loads during a power up or a shutdown, as well as individualized remote ON/OFF capabilities. - Page 10 The voltage, current, and power of each load is monitored. For systems that require more than eight controlled loads, additional PDUs can be added. The EnterprisePlus MCU allows the monitoring and control of environmental conditions (i.e. temperature, humidity, water levels, fire, smoke, etc.) through a wide range of analog and digital sensor ports.
-
Page 11: Features And Benefits
Web page. Full Remote and Local Monitoring, Management, and Control Options The EnterprisePlus can be controlled locally or be remotely monitored and managed via a network connection, an IP address, or a dial-up connection. A comprehensive, easy-to- understand, and secure Web page provides vital information from the EnterprisePlus. -
Page 12: Specifications
1 year parts and labor Physical WxDxH in inches 16.8 x 7.63 x 1.75 16.8 x 6.13 x 1.75 WxDxH in cm 42.7 x 19.4 x 4.4 42.7 x 15.6 x 4.4 Weight in pounds/Kg 5.5 / 2.5 6.6 / 3.0 EnterprisePlus User’s Manual... -
Page 13: Front And Rear View
Introduction 1.4 Front and Rear View EnterprisePlus User’s Manual... -
Page 14: Installation
Installation 2. Installation 2.1 Unpacking The EnterprisePlus system is packed in a specially designed carton to protect it from damage during shipping. To transport or ship the unit, use the original box. Therefore, SAVE THE BOX! The contents of the carton include: •... -
Page 15: Setup
Installation Placement of the EnterprisePlus system - The unit is • designed to be installed in a protected environment and must not be used in the following settings: – Environments where the temperature or humidity is outside those recommended (see the Specifications section). - Page 16 Installation Select the appropriate EnterprisePlus then select the Configure option to set the IP address as follows: Select Apply to accept the configuration. EnterprisePlus User’s Manual...
-
Page 17: Connecting Multiple Systems
IP address as follows: 2.4 Connecting Multiple Systems The EnterprisePlus system is designed to handle up to four (4) Monitoring and Control Units. Each Monitoring and Control Unit will support up to eight (8) PDUs. All of these units can be controlled through one IP address. - Page 18 Ethernet cable from the Link In port of one unit to the Link Out port of another unit. The Link Out port from the first unit must be connected to the Link In port of the second unit and so forth up to eight units. EnterprisePlus User’s Manual...
- Page 19 Installation EnterprisePlus User’s Manual...
-
Page 20: Operation
Operation 3. Operation The EnterprisePlus system can be controlled from the front panel of the unit or through the use of a Web page. 3.1 Console-based Operation The front panel contains sensor status LEDs, a button for system power ON/OFF control, an input button to select the input power source, display, two selection buttons, and eight ON/OFF buttons and status LEDs for output power control. - Page 21 (1 to 8) is using. The Selection buttons allow the user to toggle between outlets one (1) through eight (8), the total load, and the sensor status. The display shows the total current (amps) when the Total Load LED is illuminated. EnterprisePlus User’s Manual...
- Page 22 (amp) on the display. Sensor Status LEDs The Analog and Digital Status LEDs display the threshold status defined for analog input sensors A1 to A8 and digital EnterprisePlus User’s Manual...
-
Page 23: Web-Based Operation
Amber – selected for monitoring on the display • 3.2 Web-based Operation The EnterprisePlus is designed to be configured and monitored from both the front panel and via Web page. After setting up the EnterprisePlus, as defined in the Installation section, the... - Page 24 Depending on how the browser window is sized, the system will be displayed in different formats. The Web page has been designed to represent the actual EnterprisePlus system as if it were being operated at the console. From the Connections panel on the left side of the screen, select the Monitoring and Control Unit to manage.
- Page 25 (1 to 8) is using. Click the Selection buttons to toggle between outlets one (1) through eight (8), the total load, and the sensor status. The display shows the total current (amps) when the Total Load LED is illuminated. EnterprisePlus User’s Manual...
- Page 26 The Analog and Digital Status LEDs display the threshold status defined for analog input sensors A1 to A8 and digital input sensors D1 to D8. The Sensor Connected LEDs illuminate when a sensor is connected to the port. EnterprisePlus User’s Manual...
-
Page 27: Port/Connection Definitions
EnterprisePlus system. 3.3 Port/Connection Definitions The EnterprisePlus system is designed to handle eight (8) digital output sensors, eight (8) digital input sensors, and eight (8) analog input sensors. The sensors connect to the rear of the Monitoring and Control Unit with a standard Ethernet cable. - Page 28 Operation Digital Output Sensors The Digital Output Sensors are designed to send an ON or OFF signal by the Enterprise Plus system. Following is a diagram of the port: EnterprisePlus User’s Manual...
- Page 29 Operation Digital Input Sensors The Digital Input Sensors are designed to receive an ON or OFF signal to be processed by the Enterprise Plus system. Following is a diagram of the port: EnterprisePlus User’s Manual...
- Page 30 The Analog Input Sensors are designed as intelligent sensors that can send analog information to be processed by the Enterprise Plus system. Following is a diagram of the port: +5 Volt signal (can not supply power) Analog Ground Digital Ground EnterprisePlus User’s Manual...
- Page 31 Operation Auxiliary Ports The EnterprisePlus system has multiple auxiliary ports to handle many expansion options. The Monitoring and Control Unit provides an RS232, a USB port, an Aux port, and a 10baseT Ethernet port. The PDU provides a 10/100 Ethernet port.
-
Page 32: Customer Service
Customer Service 4. Customer Service There are no user serviceable parts inside. DO NOT remove the cover or attempt to service the EnterprisePlus system. High voltage inside the system is always present even when it has been shutdown and unplugged. - Page 33 Also, upon restarting the EnterprisePlus system? Were any changes made to the EnterprisePlus system or the equipment attached to the unit? Did an overload condition occur? If so, remove non- critical loads from the unit and go through the restart procedure.
