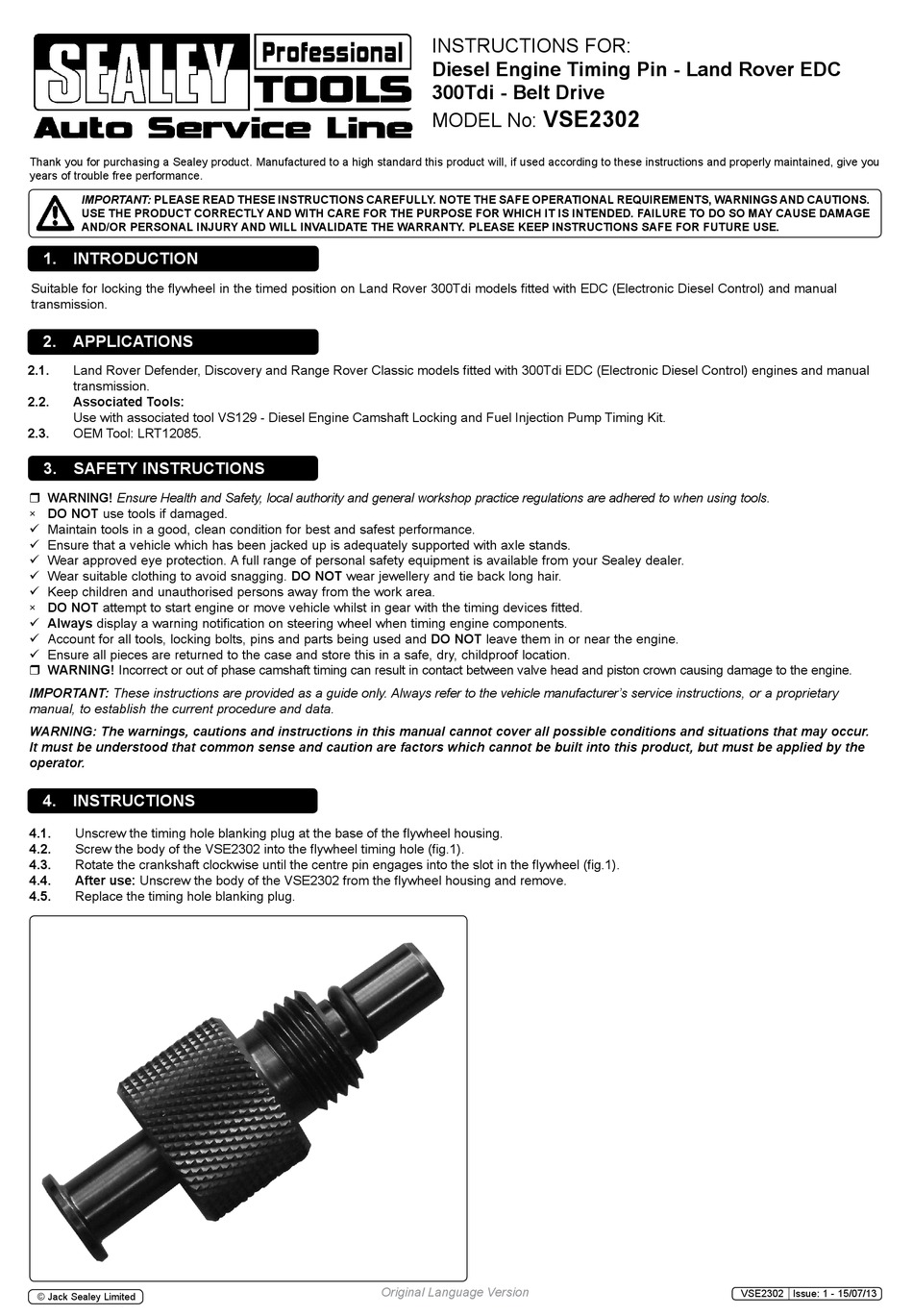

Sealey VSE2302 Instructions For Use

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you
years of trouble free performance.
IMPORTANT: PLEASE READ THESE inSTRuCTionS CAREFuLLY. noTE THE SAFE oPERATionAL REQuiREMEnTS, WARninGS AnD CAuTionS.
uSE THE PRoDuCT CoRRECTLY AnD WiTH CARE FoR THE PuRPoSE FoR WHiCH iT iS inTEnDED. FAiLuRE To Do So MAY CAuSE DAMAGE
AnD/oR PERSonAL inJuRY AnD WiLL inVALiDATE THE WARRAnTY. PLEASE KEEP inSTRuCTionS SAFE FoR FuTuRE uSE.
1. inTRoDuCTion
Suitable for locking the flywheel in the timed position on Land Rover 300Tdi models fitted with EDC (Electronic Diesel Control) and manual
transmission.
2. APPLiCATionS
2.1. Land Rover Defender, Discovery and Range Rover Classic models fitted with 300Tdi EDC (Electronic Diesel Control) engines and manual
transmission.
2.2. Associated Tools:
Use with associated tool VS129 - Diesel Engine Camshaft Locking and Fuel Injection Pump Timing Kit.
2.3. OEM Tool: LRT12085.
3. SAFETY inSTRuCTionS
r WARninG! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
× Do noT use tools if damaged.
ü Maintain tools in a good, clean condition for best and safest performance.
ü Ensure that a vehicle which has been jacked up is adequately supported with axle stands.
ü Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
ü Wear suitable clothing to avoid snagging. Do noT wear jewellery and tie back long hair.
ü Keep children and unauthorised persons away from the work area.
× Do noT attempt to start engine or move vehicle whilst in gear with the timing devices fitted.
ü Always display a warning notification on steering wheel when timing engine components.
ü Account for all tools, locking bolts, pins and parts being used and Do noT leave them in or near the engine.
ü Ensure all pieces are returned to the case and store this in a safe, dry, childproof location.
r WARninG! Incorrect or out of phase camshaft timing can result in contact between valve head and piston crown causing damage to the engine.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions, or a proprietary
manual, to establish the current procedure and data.
WARNING: The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur.
It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
4. inSTRuCTionS
4.1. Unscrew the timing hole blanking plug at the base of the flywheel housing.

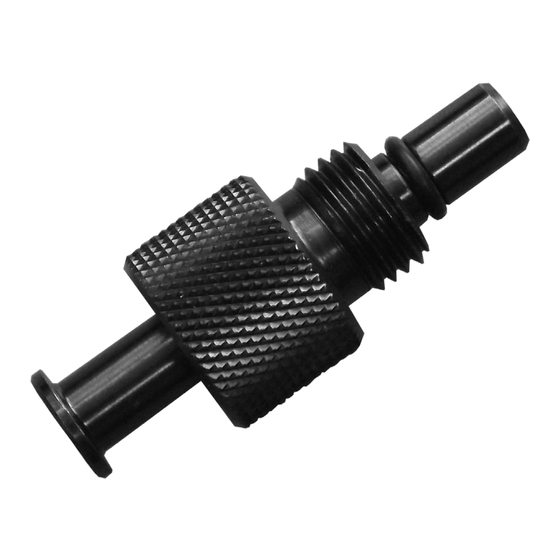

4.2. Screw the body of the VSE2302 into the flywheel timing hole (fig.1).
4.3. Rotate the crankshaft clockwise until the centre pin engages into the slot in the flywheel (fig.1).
4.4. After use: Unscrew the body of the VSE2302 from the flywheel housing and remove.
4.5. Replace the timing hole blanking plug.
© Jack Sealey Limited
INSTRUCTIONS FOR:
Diesel Engine Timing Pin - Land Rover EDC
300Tdi - Belt Drive
VSE2302
MODEL No:
Original Language Version
VSE2302 Issue: 1 - 15/07/13
