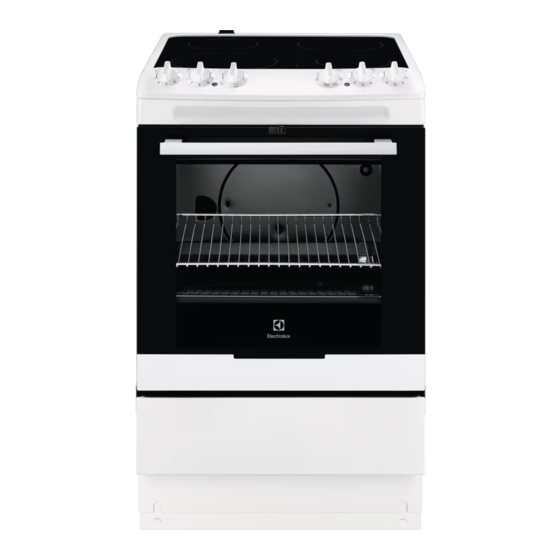

Electrolux EKC4011AOW User Manual
  1. Manuals
  2. Brands
  3. Electrolux Manuals
  4. Cookers
  5. EKC4011AOW
  6. User manual
Electrolux EKC4011AOW User Manual

Electrolux EKC4011AOW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN User Manual | Cooker
EKC4011AOW

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EKC4011AOW

Summary of Contents for Electrolux EKC4011AOW

  • Page 1 EN User Manual | Cooker EKC4011AOW...

  • Page 2: Table Of Contents

    WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 • Only a qualified person must install this appliance and replace the cable. • This appliance is intended for use up to an altitude of 2000 m above sea level. • This appliance is not intended to be used on ships, boats or vessels.

  • Page 5: Safety Instructions

    • WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. • Always use oven gloves to remove or insert accessories or ovenware. • Before maintenance, cut the power supply. •...
  • Page 6 2.2 Electrical Connection • Make sure that the ventilation openings are not blocked. • Do not let the appliance stay unattended WARNING! during operation. Risk of fire and electric shock. • Deactivate the appliance after each use. • Be careful when you open the appliance •...
  • Page 7 • Discoloration of the enamel or stainless use abrasive products, abrasive cleaning steel has no effect on the performance of pads, solvents or metal objects. the appliance. • If you use an oven spray, follow the safety • Use a deep pan for moist cakes. Fruit instructions on the packaging.

  • Page 8: Installation

    3. INSTALLATION 3.3 Anti-tilt protection WARNING! Refer to Safety chapters. CAUTION! Install the anti-tilt protection to prevent 3.1 Technical data the appliance from falling under incorrect loads. The anti-tilt protection only works when the appliance is put in a correct Dimensions area.

  • Page 9: Product Description

    4. PRODUCT DESCRIPTION 4.1 General overview Power lamp / symbol Knob for the heating functions Control knob (for the temperature) Temperature indicator / symbol Knobs for the hob Heating element Lamp Shelf support, removable Shelf positions 4.2 Hob overview Cooking zone Residual Heat Indicator 145 mm 180 mm...
  • Page 10 2. Pull the door trim up and remove it. 3. Remove the lever 1, move it to the right 2 and put it back in. Refer to "Care and cleaning" chapter. Clean the oven and the accessories before the first use. Put the accessories and the removable shelf supports back to their initial position.

  • Page 11: Hob - Daily Use

    6. HOB - DAILY USE 6.2 Residual heat indicator WARNING! Refer to Safety chapters. WARNING! As long as the indicator is on, there is a 6.1 Heat setting risk of burns from residual heat. The indicator appears when a cooking zone Symbols Function is hot, but it does not function if mains power...

  • Page 12: Hob - Care And Cleaning

    7.2 Minimum cookware diameter Cooking Cookware diam‐ Power (W) zone eter (mm) Cooking Cookware diam‐ Power (W) zone eter (mm) Left front 180 - 210 2300 Left rear 125 - 145 1200 7.3 Examples of cooking applications Right rear 150 - 180 1800 Right front 125 - 145...

  • Page 13: Oven - Daily Use

    8.2 Cleaning the hob stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non- • Remove immediately: melted plastic, abrasive detergent. After cleaning, wipe plastic foil, salt, sugar and food with sugar, the hob dry with a soft cloth. otherwise, the dirt can cause damage to •...
  • Page 14 Symbol Oven function Application Moist Conventional Baking This function was used to comply with the Energy Efficiency Class and Ecodesign Regulations (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1. The oven door should be closed during cooking so that the func‐ tion is not interrupted and to ensure that the oven operates with the highest energy efficiency possible.

  • Page 15: Oven - Hints And Tips

    • All accessories have small indentations at the top of the right and left side to increase safety. The indentations are also anti-tip devices. • The high rim around the shelf is a device which prevents cookware from slipping. 10. OVEN - HINTS AND TIPS You can extend the baking time by 10 –...
  • Page 16 10.3 Conventional Baking Food Temperature (°C) Time (min) Shelf posi‐ tion Bread rolls 200 - 225 10 - 20 Wholemeal rolls 190 - 200 20 - 25 Filled sandwiches 200 - 225 10 - 12 Pan loaf 190 - 210 30 - 40 Ciabatta rolls 210 - 230...
  • Page 17 Food Temperature (°C) Time (min) Shelf posi‐ tion Fruit tarts, crumble pastry 190 - 200 25 - 35 Marzipan ring cake 210 - 230 10 - 12 10.4 Conventional Cooking Food Temperature (°C) Time (min) Shelf posi‐ tion Fish, boiling 160 - 170 Fish, frying 180 - 200...
  • Page 18 10.6 Conventional Roasting Beef Food Temperature (°C) Time (min / kg) Shelf posi‐ tion 80 - 120 Roast beef Rump steak - browning total 10 Rump steak - roasting 50 - 60 Roast beef 90 - 120 Other. Can be browned off after roasting under the grill or with top / bottom heat at 250°C. If you are using a meat probe, remove it before grilling.
  • Page 19 Food Temperature (°C) Time (min / kg) Shelf posi‐ tion Roast turkey, stuffed 50 - 60 Turkey breast 70 - 80 Whole chicken 60 - 90 Other. Can be browned off after roasting under the grill or with top / bottom heat at 250°C. If you are using a meat probe, remove it before grilling.
  • Page 20 Food Temperature (°C) Time (min) Shelf position Macaroons 25 - 35 Muffins 25 - 35 Savoury cracker 20 - 30 Short crust pastry biscuits 25 - 35 Tartelettes 15 - 25 Vegetarian Food Temperature (°C) Time (min) Shelf position Mixed vegetables in pouch 400 g 25 - 35 Omelette 20 - 30...
  • Page 21 Preserve Temperature (°C) Cooking time until sim‐ Continue to cook at mering (min) 100 °C (min) Mixed pickles 160 - 170 50 - 60 5 - 10 Kohlrabi, peas, asparagus 160 - 170 50 - 60 15 - 20 Leave standing in oven when switched off. 10.9 Grilling in general •...

  • Page 22: Oven - Care And Cleaning

    10.11 Fast Grilling Food Temperature (°C) Time (min) Shelf posi‐ tion 1st side 2nd side Pork fillet 10 - 12 6 - 10 Sausages 10 - 12 6 - 8 Fillet steaks, veal steaks 7 - 10 6 - 8 Toast with topping 6 - 8 Whole chicken...
  • Page 23 11.1 Notes on cleaning Clean the front of the appliance only with a microfibre cloth with warm water and a mild de‐ tergent. Use a cleaning solution to clean metal surfaces. Clean stains with a mild detergent. Cleaning Agents Clean the cavity after each use. Fat accumulation or other residue may cause fire. Do not store the food in the appliance for longer than 20 minutes.
  • Page 24 4. Clean the door glass panels. To install panels, do the same steps in reverse. 11.6 How to remove: grill 1. Open the door fully. 2. Move the slider until you hear a click. WARNING! 3. Close the door until the slider locks. 4.

  • Page 25: Troubleshooting

    11.7 Replacing the lamp 11.8 The drawer WARNING! WARNING! Risk of electric shock. Do not put food inside the drawer. The lamp can be hot. WARNING! 1. Turn off the oven. Wait until the oven is Do not keep flammable items such as cold.

  • Page 26: Energy Efficiency

    ......... Serial number (S.N.) ......... 13. ENERGY EFFICIENCY 13.1 Product Information according to EU Ecodesign Regulations for hob Model identification EKC4011AOW Type of hob Hob inside Freestanding Cooker Number of cooking zones Heating technology Radiant Heater Diameter of circular cooking zones Left front 21.0 cm...

  • Page 27: Environmental Concerns

    13.3 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations for ovens Supplier's name Electrolux Model identification EKC4011AOW Energy Efficiency Index 95.4 Energy efficiency class Energy consumption with a standard load, conventional mode 0.83 kWh/cycle...
  • Page 28 Electrolux Appliances AB - Contact Address: appliances marked with the symbol with Al. Powstańców Śląskich 26, 30-570 Kraków, the household waste. Return the product to Poland your local recycling facility or contact your municipal office. ENGLISH...
  • Page 32 867338109-E-132023...
