Summary of Contents for Philips 32E1N5800L

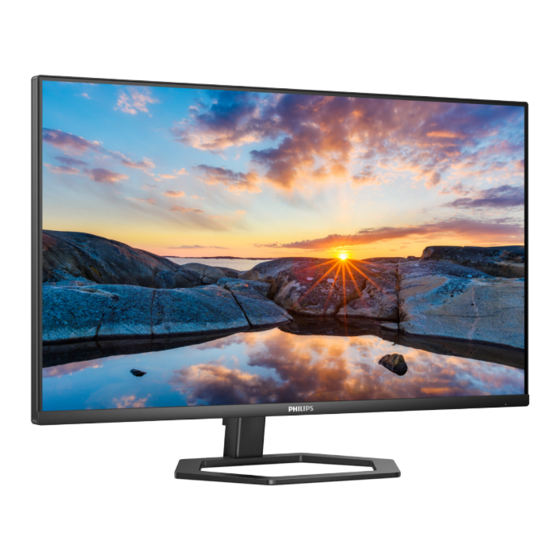

- Page 1 Monitor 5000 Series 32E1N5800L User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
5. Technical Specifications 16 5.1 Resolution & Preset Modes ..19 6 Power Management 20 7. Customer care and warranty 21 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 21 7.2 Customer Care & Warranty ..24 8. Troubleshooting & FAQs 25 8.1 Troubleshooting ......25 8.2 General FAQs ....... -
Page 3: Important
Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor. - Page 4 monitor damage will not be covered • Oil-based cleaning solutions may under warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation or transportation. • Unplug the monitor if you are not going to use it for an extensive •...
-
Page 5: Notational Descriptions
1.2 Notational Descriptions Uninterrupted display of still or static images over an extended The following subsections describe period may cause “burn-in”, also notational conventions used in this known as “after-imaging” or “ghost document. imaging”, on your screen. • “Burn-in”, “after-imaging”, or Notes, Cautions and Warnings “ghost imaging”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: Setting Up The Monitor
5000 Series 32E1N5800L Quick start 3. After attaching the base, erect Register your product and get support at www.philips.com/welcome the monitor with both hands on holding the monitor together with styrofoam firmly. Now you can pull out the styrofoam. When you pull out the styrofoam, do not squeeze the panel to avoid broken panel. -
Page 8: Operating The Monitor
2.2 Operating the monitor Connecting to your PC Description of the control buttons AUDIO HDMI 1 HDMI 2 AC power input Press to switch power on. Press HDMI 1 input more than 3 seconds to switch HDMI 2 input power off. DisplayPort input Access the OSD menu. - Page 9 Size (1, 2, 3, 4, 5, 6, 7) On-Screen Display (OSD) is a feature in Brightness (0~100) Contrast (0~100) all Philips LCD monitors. It allows an end H. position user to adjust screen performance or V. position 1, 2, 3, 4...
-
Page 10: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly Physical Function for VESA Mounting Tilt Before you start disassembling the 20° monitor base, please follow the -5° instructions below to avoid any possible damage or injury. 1. Place the monitor face down on a smooth surface. -
Page 11: Multiview
* Display design may differ from those complex multi-tasking work a breeze. illustrated. Why do I need it? Warning With the ultra high resolution Philips • To avoid potential screen damage, MultiView display, you can experience a such as panel peeling, ensure that... - Page 12 1. Toggle to the right to enter OSD When the sub source is Menu Screen. not detected. 2. Toggle to the up or down to select (main) main menu [PIP / PBP], then toggle to the right to confirm. 3. Toggle to the up or down to select Note [PIP / PBP Mode], then toggle to the The black strip shows on the top and...
- Page 13 Top-Left Top-Right (main) (main) Bottom-Left Bottom-Right (main) (main) • Swap: The main picture source and the sub picture source swapped on the display. Swap A and B source in [PIP] mode: ↔ (main) (main) Swap A and B source in [PBP] mode: ↔...
-
Page 14: Image Optimization 12
Racing, RTS, Gamer 1, Gamer 2, LowBlue in real time. Whether you're working Mode, EasyRead, SmartUniformity and with text applications, displaying images Off. or watching a video, Philips SmartImage delivers great optimized monitor performance. ... - Page 15 LCD displays. • Personal: Customize available Typical uniformity is measured settings in picture menu. around 75-80%. By enabling Philips • Off: No optimization by SmartImage SmartUniformity feature, display HDR. uniformity is increased to above Note 95%.
-
Page 16: Smartcontrast
3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 17: Hdr 15
4 HDR HDR Settings in Windows11/10 system. Steps 1. Right click on the desktop, enter to Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows10 edition is required;... -
Page 18: Technical Specifications 16
5 Technical Specifications Picture/Display Monitor Panel Type Backlight W-LED Panel Size 31.5" (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.18159 (H) mm x 0.18159 (V) mm Contrast Ratio(typ.) 3500:1 Native Resolution 3840 x 2160 @ 60 Hz Maximum Resolution 3840 x 2160 @ 60 Hz Viewing Angle 178°... - Page 19 Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , at 115VAC , at 230VAC, 50Hz 60Hz 60Hz Normal Operation 47.3 W (typ.) 46.8 W (typ.) 46.3 W (typ.) Sleep (Standby mode) 0.5 W 0.5 W 0.5 W Off mode 0.3 W...
- Page 20 Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. SmartUniformity and Delta E information sheets are included in the box.
-
Page 21: Resolution & Preset Modes
31.47 720 x 400 70.09 is capable of achieving the maximum 31.47 640 x 480 59.94 resolution and refresh rate of this Philips display. 35.00 640 x 480 66.67 37.86 640 x 480 72.81 37.50... -
Page 22: Power Management 20
6 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 23: Customer Care And Warranty 21
Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 24 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or sub panel in a Philips flat panel monitor pixels that are always dark or 'off'. That must have pixel or sub pixel defects is, a dark dot is a sub-pixel that stands...
- Page 25 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 26: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 27: Troubleshooting & Faqs 25
• Contact with Philips customer service • First, ensure that the power button representative immediately. on the rear of the monitor is in the... - Page 28 Uninterrupted display of still or Service contact information listed static images over an extended in Important information manual period may cause "burn-in", also and contact Philips customer service known as "after-imaging" or "ghost representative. imaging", on your screen. "Burn-in", * Functionality different according to "after-imaging", or "ghost imaging"...
-
Page 29: General Faqs
Shut down your computer, monitor, make sure that there is disconnect your old monitor and no pressure or force applied to reconnect your Philips LCD monitor. the panel surface side. This may • Turn on your monitor and then turn affect your warranty conditions. - Page 30 Can I connect my LCD monitor to that will not disappear and cannot be any PC, workstation or Mac? repaired. The damage mentioned above Ans.: Yes. All Philips LCD monitors are is not covered under your warranty. fully compatible with standard PCs, Macs and workstations.
-
Page 31: Multiview Faqs
If you want to change audio- Q14: Where can I find Important source input , you can press Information manual mentioned to enter OSD menu. Select your in EDFU? preferred [Audio Source] option Ans.: Important Information manual from the [Audio] main menu. can be download on the Philips website support page. Please note that the next time you turn on your display, the display will by default select the audio source you chose last time. In case you want to change it again, you need to go through the above steps to select your new preferred audio source, which then will become the “default” mode. - Page 32 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
