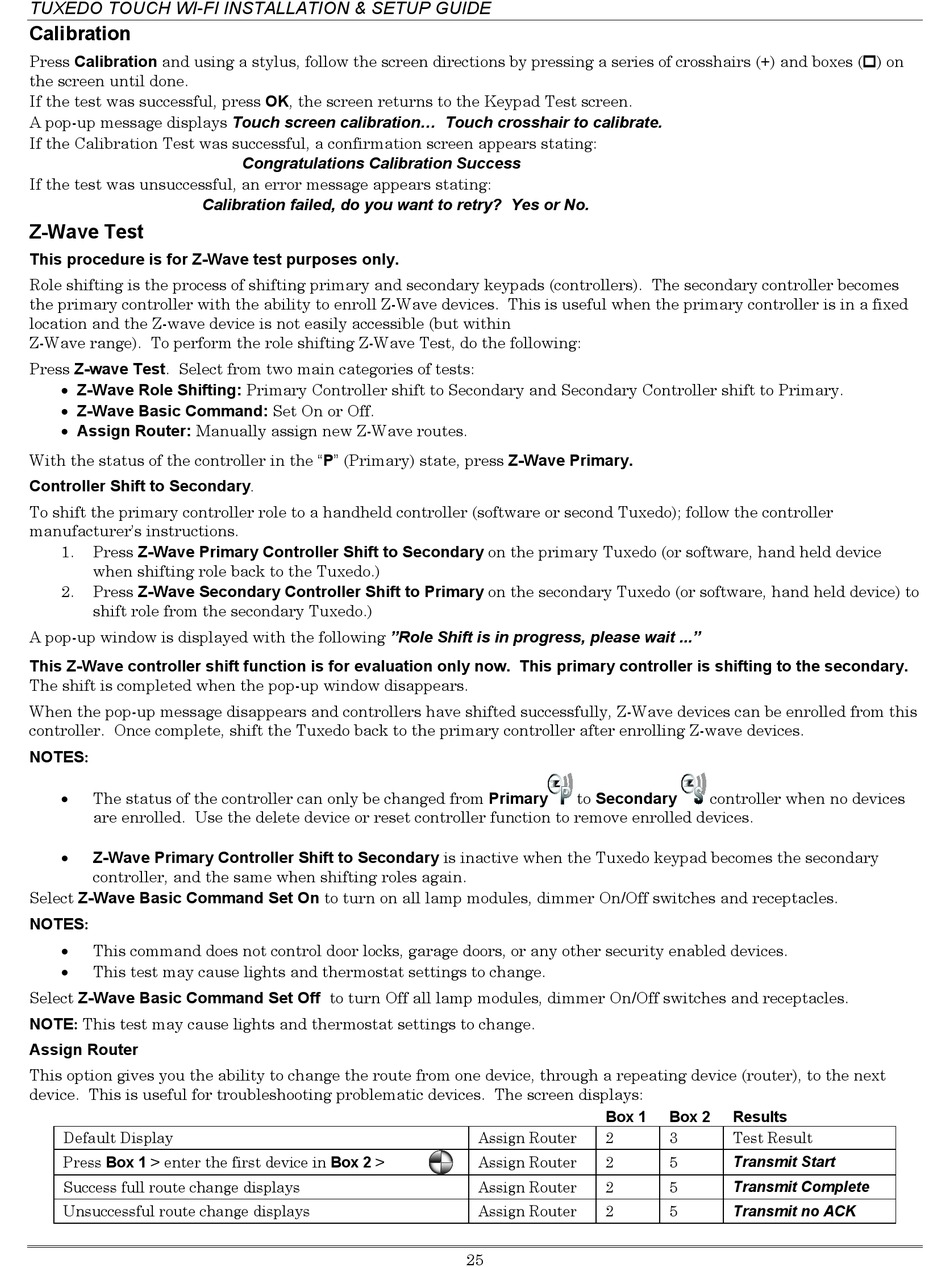

TUXEDO TOUCH WI-FI INSTALLATION & SETUP GUIDE

Calibration

Press Calibration and using a stylus, follow the screen directions by pressing a series of crosshairs (+) and boxes () on
the screen until done.
If the test was successful, press OK, the screen returns to the Keypad Test screen.
A pop-up message displays Touch screen calibration... Touch crosshair to calibrate.
If the Calibration Test was successful, a confirmation screen appears stating:
If the test was unsuccessful, an error message appears stating:
Calibration failed, do you want to retry? Yes or No.

Z-Wave Test

This procedure is for Z-Wave test purposes only.
Role shifting is the process of shifting primary and secondary keypads (controllers). The secondary controller becomes
the primary controller with the ability to enroll Z-Wave devices. This is useful when the primary controller is in a fixed
location and the Z-wave device is not easily accessible (but within
Z-Wave range). To perform the role shifting Z-Wave Test, do the following:
Press Z-wave Test. Select from two main categories of tests:
• Z-Wave Role Shifting: Primary Controller shift to Secondary and Secondary Controller shift to Primary.
• Z-Wave Basic Command: Set On or Off.
• Assign Router: Manually assign new Z-Wave routes.
With the status of the controller in the "P" (Primary) state, press Z-Wave Primary.
Controller Shift to Secondary.
To shift the primary controller role to a handheld controller (software or second Tuxedo); follow the controller
manufacturer's instructions.
1. Press Z-Wave Primary Controller Shift to Secondary on the primary Tuxedo (or software, hand held device
when shifting role back to the Tuxedo.)
2. Press Z-Wave Secondary Controller Shift to Primary on the secondary Tuxedo (or software, hand held device) to
shift role from the secondary Tuxedo.)
A pop-up window is displayed with the following "Role Shift is in progress, please wait ..."
This Z-Wave controller shift function is for evaluation only now. This primary controller is shifting to the secondary.
The shift is completed when the pop-up window disappears.
When the pop-up message disappears and controllers have shifted successfully, Z-Wave devices can be enrolled from this
controller. Once complete, shift the Tuxedo back to the primary controller after enrolling Z-wave devices.
NOTES:
The status of the controller can only be changed from Primary
•
are enrolled. Use the delete device or reset controller function to remove enrolled devices.
Z-Wave Primary Controller Shift to Secondary is inactive when the Tuxedo keypad becomes the secondary
•
controller, and the same when shifting roles again.
Select Z-Wave Basic Command Set On to turn on all lamp modules, dimmer On/Off switches and receptacles.
NOTES:
This command does not control door locks, garage doors, or any other security enabled devices.
•
This test may cause lights and thermostat settings to change.
•
Select Z-Wave Basic Command Set Off to turn Off all lamp modules, dimmer On/Off switches and receptacles.
NOTE: This test may cause lights and thermostat settings to change.
Assign Router
This option gives you the ability to change the route from one device, through a repeating device (router), to the next
device. This is useful for troubleshooting problematic devices. The screen displays:
Default Display
Press Box 1 > enter the first device in Box 2 >
Success full route change displays
Unsuccessful route change displays
Congratulations Calibration Success
to Secondary
Box 1
Assign Router 2
Assign Router 2
Assign Router 2
Assign Router 2
25
controller when no devices
Box 2 Results
3 Test Result
5
Transmit Start
5
Transmit Complete
5
Transmit no ACK
