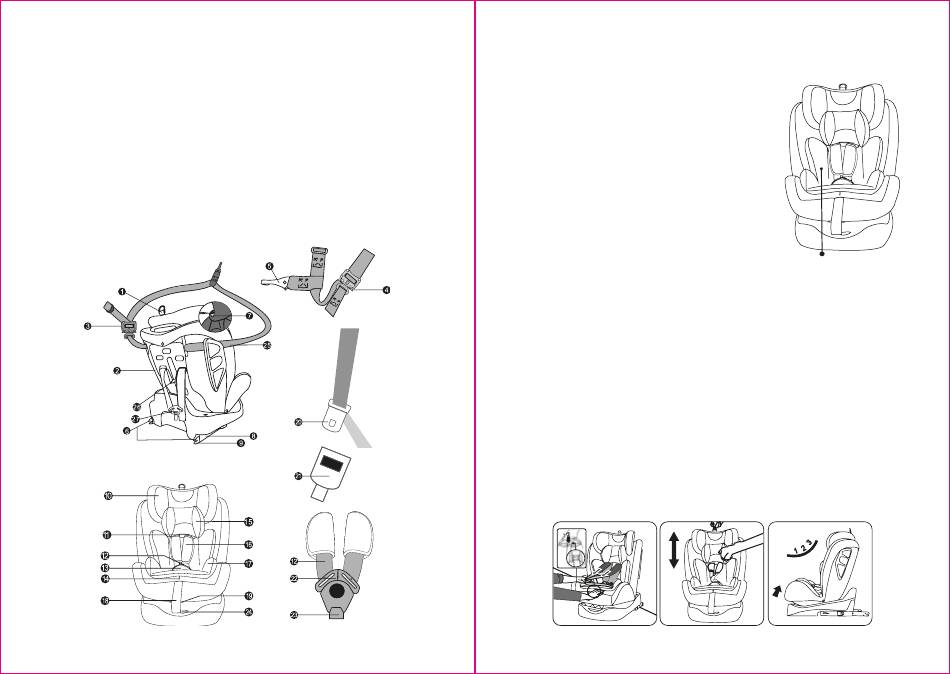

Car Seat Features
1. Headrest and Harness Height
Adjustment
2.
Seat Backrest
3. Top-Tether Strap
4. Top-Tether Adjuster
5. Top-Tether Clip
6. ISO-FIX Latches
7. Sash Guides (for Group II and III)
8. ISO-FIX Release Buttons
9. ISO-FIX Connection Indicator
10. Headrest
11. Harness Shoulder Straps
12.
Harness Chest/Shoulder Pads
13.
Crotch Buckle Pad
14.
Harness Centre Front Adjuster
6 icklebubba.com
15. Infant Head Insert
16. Harness Chest Pads
17. Infant Body Insert
18. Harness Adjuster Strap
19. Recline Adjustment Handle
20. Metal Tongue From Vehicle
21. Buckle From Vehicle
22.
Left and Right Buckle Tongue
23.
Harness Buckle
24.
Rotation Adjustment Button
25.
Top-Tether Belt Guide
26.
Release Clip for Harness Pads
27. Harness Splitter Plate
Securing your baby using the baby insert
CAUTION: For the protection of your baby:
Please use the insert attached to this car seat up to
approximately 13kg.
The baby insert is used to provide extra comfort
for very small babies, and it gives your baby the necessary
support while he or she is still small.
• Always secure your baby in the car seat using the harness.
• Never leave your baby unattended in the car seat
when placing it on elevated surfaces (e.g. a table,
nappy changing unit, etc.).
• Never allow the strap end to become caught in moving parts
(e.g. automatic doors, escalators, etc.).
• Caution! The plastic parts of the car seat heat up in the sun, so
that your baby may get burnt. Protect your baby and the car
seat against intensive solar radiation (e.g. by putting a light cloth
over the seat).
• Take your baby out of the car seat as often as possible to
relieve its spine.
• We recommend frequent breaks during long journeys. Even
outside of the car, please avoid leaving your baby in the car
seat for too long.
How to adjust the belts, headrest and seat positions
IMPORTANT: The correct belt height of the shoulder belts is attained when the belt
disappears into the shell slightly above the shoulder of the child. Make sure that the shoulder
belts fit properly over the shoulders of the child.
Adjusting the belts
• Loosen the harness straps by pressing the release button and pulling the harness straps
as far as you can. NOTE: Do not pull the Shoulder pads.
Headrest adjust
• There are seven adjustable headrest position pull the headrest adjust button upwards, move
the headrest to the correct shoulder strap height and check that it is properly engaged by
lightly sliding the head rest downwards.
To change the recline
• The seat can be reclined into multiple different positions.
• You can change the recline position while the child 1is installed in the car seat.
• Changing recline position gives your child optimal comfort for sleeping.
• For children from O-12 year old , use the seat in its most reclined position with the infant insert
to ensure your child's spine is supported whilst sleeping.
• To change the positions prasp the recline button and push or pull the seat into the desired position.
Baby Insert
icklebubba.com 7
