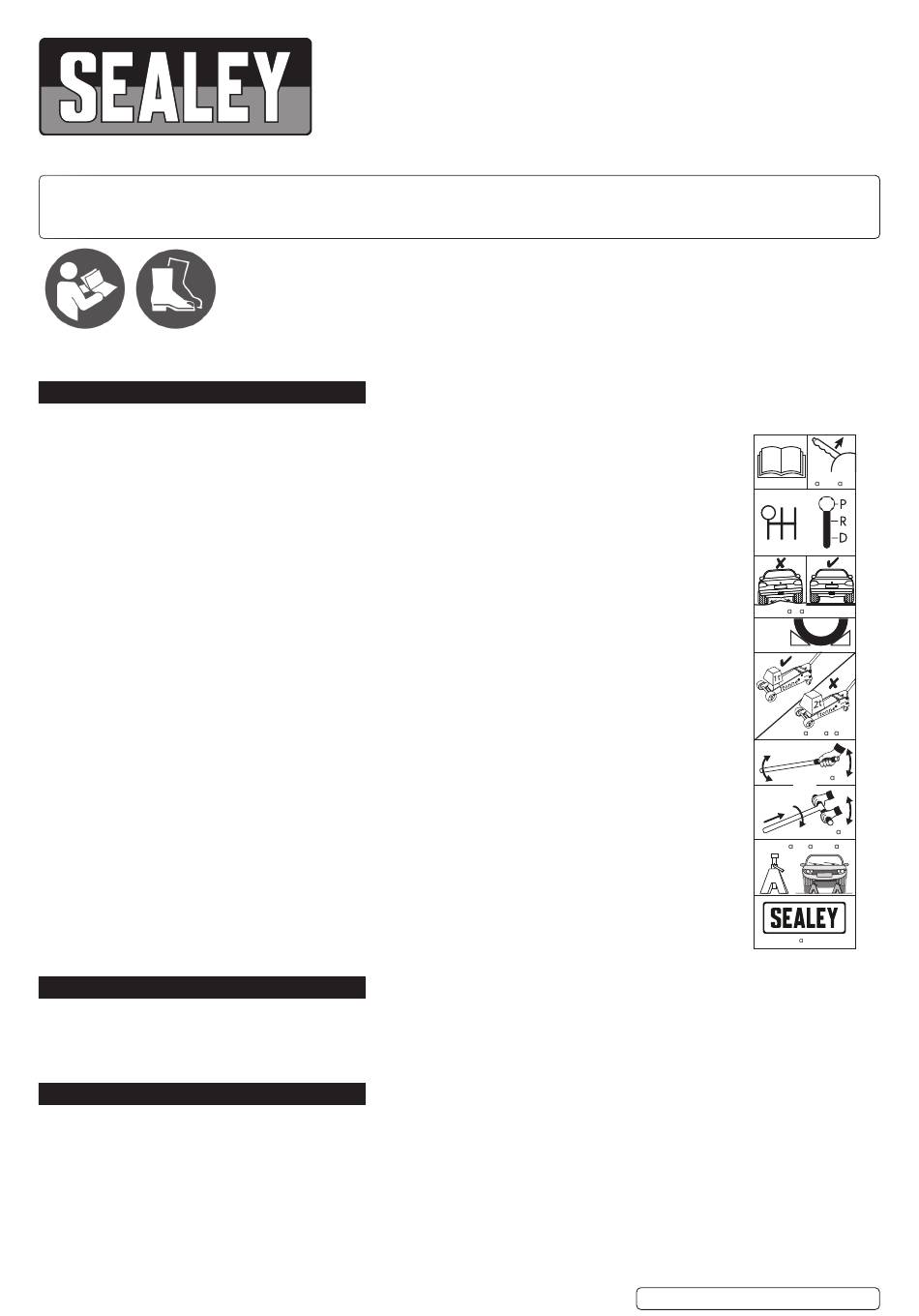

Sealey 5001.V5 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear
instruction
protective
manual
footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts.
9
Use genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
9
Locate the jack in a suitable, well lit work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place chocks under wheels of vehicle (but ensure wheels of jack can move freely).
9
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear ("PARK" if
9
automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls etc. to allow for
9
vehicle tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack under those lifting points recommended by vehicle manufacturer (refer to vehicle handbook).
9
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
▲ DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
Use suitable capacity axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
DO NOT operate the jack if damaged.
8
DO NOT operate the jack when tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT leave the jack handle locked in either the middle or lower locking positions when the jack is left
8
unattended.
DO NOT use the jack for purposes other than that for which it is designed.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only. (Sealey Part No. HJO500MLS or
8
HJO5LS)
DO NOT adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
2. INTRODUCTION
Heavy-duty chassis with one-piece hydraulic unit. Handle mounted safety release, prevents inadvertent lowering. Includes large
diameter saddle for easier positioning under the jacking point. Foot operated quick lift system. Fitted with safety overload valve.
Integral tool tray for convenience and wheel nut retention. Rubber jack pad to prevent damage to the underside of the vehicle's jacking
point.
3. SPECIFICATION
Model no ...................................................................5001.V5
Capacity ...................................................................... 5tonne
Length ...................................................................... 1400mm
Max. chassis height .................................................... 200mm
Max. saddle height ..................................................... 600mm
Min. saddle height ...................................................... 150mm
Consumables
Rubber jack pad ............................................................JP18
© Jack Sealey Limited
5TONNE LONG REACH TROLLEY JACK
5001.V5
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
Never
exceed
j ck c p city
Close
Lower
R ise
OR
Lift & twist
to lower
R ise
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
5001.V5 Issue 1 0410/21
