Air Purifier
User Manual
AX53A9350GE / AX53B9350GG / AX53B9350GN
• Thank you for purchasing this Samsung Air Purifier.
• Before operating this unit, please read this manual carefully and retain it for future reference.
DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 1
DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 1
2022-06-03 오전 8:34:54
2022-06-03 오전 8:34:54
Advertisement
Table of Contents
Related Manuals for Samsung AX53A9350GE
Summary of Contents for Samsung AX53A9350GE
- Page 1 Air Purifier User Manual AX53A9350GE / AX53B9350GG / AX53B9350GN • Thank you for purchasing this Samsung Air Purifier. • Before operating this unit, please read this manual carefully and retain it for future reference. DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 1 DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 1 2022-06-03 오전...
- Page 2 Contents Safety Information Safety Information Package Contents Accessories Air Purifier Overview Front of main unit / Rear of main unit Button unit / Display Connecting the power adapter / Removing the power adapter Removing the filters Attaching the filters Attaching the pet mesh filter Using the Air Purifier Turning on/off the air purifier / Changing the operation mode Lock function / Filter replacement reminder...
-
Page 3: Safety Information
Safety Information These safety precautions are for owner's safety and preventions of property damage. Therefore, please read this manual thoroughly before using your product. WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Follow directions. - Page 4 • Having the cord hanging from above the plug may damage the wires inside, which can lead to electric shock or fire. Please contact your local Samsung Service Centre if the power plug or cord is damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 5 • This may cause a spark when reconnecting the plug, which can lead to an explosion or fire. Please contact your local Samsung Service Centre when you require repair service. • Follow instructions to avoid malfunction, water leakage, electric shock or fire.
- Page 6 Safety Information If any of the electric components inside the air purifier has contacted liquid or water, disconnect the product from the power source and contact your local Samsung Service Centre. • Follow instructions to avoid electric shock or fire.
-
Page 7: Package Contents

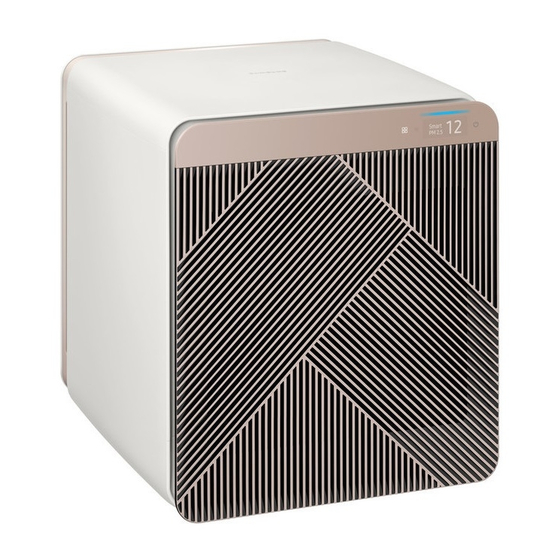

Package Contents Package Contents Accessories Pre-filter Pet Deodorization Filter ¹⁾ Dust Collecting Filter ¹⁾ Pet mesh filter (5 ea) User Manual Power adapter ¹⁾ The pet deodorization filter and dust collecting filter cannot be reused by washing them with water. NOTE •... - Page 8 Air Purifier Overview Air Purifier Overview This image is a representative image. The product design and specifications are subject to change without notice for the purpose of improving quality. Front of main unit 01 Clip wire 05 Front mesh 02 Button unit 06 Frame 03 Air outlet / Bespoke panel 07 Pull handle (both bottom sides)
- Page 9 Button unit Smart PM10 01 Mode button 02 Power button • Short press: Changes the operation mode • Short press: Turns on/off the device (Smart, High, Wind-Free, Sleep, Pet) • 3-second press: Locks/unlocks the device • 3-second press: Resets the filters (When the device is locked/unlocked, the button is shown for 5 seconds on the front display.) •...
-
Page 10: Connecting The Power Adapter
Air Purifier Overview Connecting the power adapter To use the air purifier, first connect the power adapter to the main unit. Check the top/bottom of the power adapter, and then connect it to the port on the rear bottom of the product. •... -
Page 11: Removing The Filters
Removing the filters Before using the consumable filters for the first time or a new filter for replacement, be sure to remove the plastic packaging from the filters. To detach a filter, first be sure to remove the power plug. STEP 1 Opening the rear panel •... - Page 12 Air Purifier Overview STEP 4 Remove the dust collecting filter. STEP 5 Remove the plastic packaging from the pet deodorization filter and dust collecting filter. Pet Deodorization Filter Dust Collecting Filter English DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 12 DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 12 2022-06-03 오전...
- Page 13 Attaching the filters When attaching the filters, refer to the order of inserting filters shown in the label attached to the inside of the filter unit. STEP 1 Attaching the dust collecting filter • Put (②) the corner of the filter behind the clip (①) at the bottom of the main unit to fasten the filter.
- Page 14 Air Purifier Overview STEP 4 Closing the rear panel • Attach the clip wire (①) to the rear of the main unit. • Insert the tabs on the panel into the slots (②) at the bottom of the main unit, and then press the top Centre of the panel to fasten it.
- Page 15 Attaching the pet mesh filter STEP 1 Opening the rear panel • Hold both upper sides of the rear panel, and pull the panel towards yourself. • Remove the clip wire from the rear of the main unit. STEP 2 Remove the pre-filter STEP 3 Taking the new pet mesh filter out of the plastic packaging •...
- Page 16 Air Purifier Overview STEP 5 Attaching the pre-filter • Insert (②) the tabs on the filter into the slots (①) at the bottom of the main unit. STEP 6 Closing the rear panel • Attach the clip wire (①) to the rear of the main unit. •...
- Page 17 – The pet deodorization filter and dust collecting filter are consumables. You will be charged for replacing these filters regardless of the remaining warranty term. • Filters for replacement can be purchased from the nearest Samsung Electronics website. Pet deodorization filter The pet deodorization filter is a high-performance filter that effectively removes daily odours including toilet and food smells.
-
Page 18: Using The Air Purifier
Using the Air Purifier If you hear a chime sound when you connect the power plug, it means that the power is connected properly. Turning on/off the air purifier • The device turns on with a chime sound, and starts operation in Smart mode. -
Page 19: Reset Filter
Lock function Use this function to lock all buttons to prevent the buttons from being pressed by mistake or by children during operation of the device. • To lock all buttons, press and hold the [ ] button for more 3-second press than 3 seconds. -
Page 20: Checking Air Quality
Using the Air Purifier Air outlet setting While in Smart mode with high fan speed, change the number of air outlets if necessary. • Press and hold the [ ] and [ ] buttons for more than 5 seconds. 'Blow air from 1 side' appears on the front display. When you change the fan speed to High while in Smart mode, 5-second press the number of air outlets automatically changes from 3 to 1. - Page 21 NOTE • PM concentrations can be affected by the environmental conditions in which the device is used (e.g., there is a construction site or road nearby, the device is used near a fabric sofa, a vacuum cleaner is used or bedding/clothes are arranged around the device).
-
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Be sure to disconnect the power plug from the socket before cleaning the product. Cleaning the air purifier exterior • Dampen a soft cloth with lukewarm water and wring it out, and then wipe the product exterior with it. •... - Page 23 STEP 4 Attaching the front mesh • Attach the front mesh to the front panel as follows: – Insert the tabs on the front mesh into the slots (①) at the bottom of the panel, and then push the areas numbered ②...
- Page 24 Cleaning and Maintenance Cleaning and drying the filters NOTE • For details on how to detach/attach the filters, see pages 11 and 15. Cleaning the pet mesh filter and pre-filter • If accumulated dust is visually observed, first use a vacuum cleaner to remove the larger dust and then rinse the filter with lukewarm water.
- Page 25 SmartThings app via Wi-Fi, 3G, LTE, 5G or more wireless networks. If the WiFi disconnects, please follow the instructions on the Samsung SmartThings app via your mobile device or tablet. You can easily install the SmartThings app or use the product with your smartphone by scanning the QR code on the attached label.
- Page 26 Air purifier Select NOTE 2 Connecting the SmartThings app to your • If you already have a Samsung account, log in to product the account. If you have a smartphone that is a Samsung device and you have a Samsung account, •...
-
Page 27: Open Source Announcement
AES is recommended. New Wi-Fi authentication shipment of this product by contacting our support team specifications and Wi-Fi non-standard via http://opensource.samsung.com (Please use the authentication methods are not supported. “Inquiry” menu.) • The product supports the IEEE802.11 b/g/n It is also possible to obtain the complete corresponding (2.4 GHz) communication protocol. -
Page 28: Before Requesting Service
Before Requesting Service If an issue occurs in the product, check the following before you contact the Service Centre for assistance. Operation issue The device will not operate • Check the power supply and turn on the air purifier again. •... -
Page 29: Air Quality
In this case, please contact your local Samsung Service Centre for assistance. • If you use a humidifier, electric pressure cooker or spray around the product, the air quality can be displayed as poor. -
Page 30: Update Software
The display output is strange. • If an indication that looks like ,' ' appears, contact your local Samsung Service Centre. An 'Update Software?' message appears. Update software? • This message appears when update is required due to new functions added or improvements made in the product. - Page 31 Memo English DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 31 DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 31 2022-06-03 오전 8:35:02 2022-06-03 오전 8:35:02...
- Page 32 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT 1300 362 603 (Other) AUSTRALIA www.samsung.com/au/support 1300 425 299 (HHP) 0800 726 786 (All Product) NEW ZEALAND www.samsung.com/nz/support 0800 6 726 786 (Support for Smart Mobile Devices) DB68-11328A-01 DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 32 DB68-11328A-01_IB_ACR AX9500A_Small PET_SA_EN.indd 32...
