1750-Oem Block Camera Bench Setup - SightLine 1750-OEM Quick Start Manual

EAN-SCD-Cameras

1 1750-OEM Block Camera Bench Setup


CAUTION: To prevent damage to hardware boards, disconnect all input power to OEMs and adapter boards before connecting
or disconnecting cables including all FFC, FPC, KEL, HDMI, MIPI, and round wire (Molex) cables.

CAUTION: To prevent damage to hardware boards, use a conductive wrist strap attached to a good earth ground. Before
picking up an ESD sensitive electronic component, discharge built up static by touching a grounded bare metal surface or
approved antistatic mat.
External
Cooler PWR

Direct connect
to camera.
SLA-SCD-100
1750-OEM + SLA-3000-CLK
SLA-CAB-K010 (KEL)

A green light (D2) on the 1750-OEM indicates that all boards are powered on. An amber light (D1) verifies network connection.
Cables and PWR:

SLA-CAB-K010 (KEL): 10 cm KEL cable. Serial and video to camera. See
▪
SLA-CAB-1404: Power / Comms / Ethernet
▪
SLA-PWR-B12V-36W (110-250VAC input / 12VDC output) to SLA-CAB-1404

SLA-CAB-0305 (optional) can connect to SLA-CAB-1404 to facilitate a PC/USB connection to serial port 0 on the 1750-OEM. See
Serial Communications in EAN-Startup-Guide-1750-OEM.
Interface and Adapter Boards:
▪
SLA-SCD-100
▪
SLA-3000-CLK

Additional camera adapter boards can be connected
using the SLA-4000-MIPI board. See
instructions before connecting.
© SightLine Applications, Inc.
SCD Mini Blackbird
HDMI OUT (J10)
SLA-CAB-HD10
(optional)
RTC-PWR IN
(J11) Under Board
LVDS IN (J4) (optional)
FFC cable

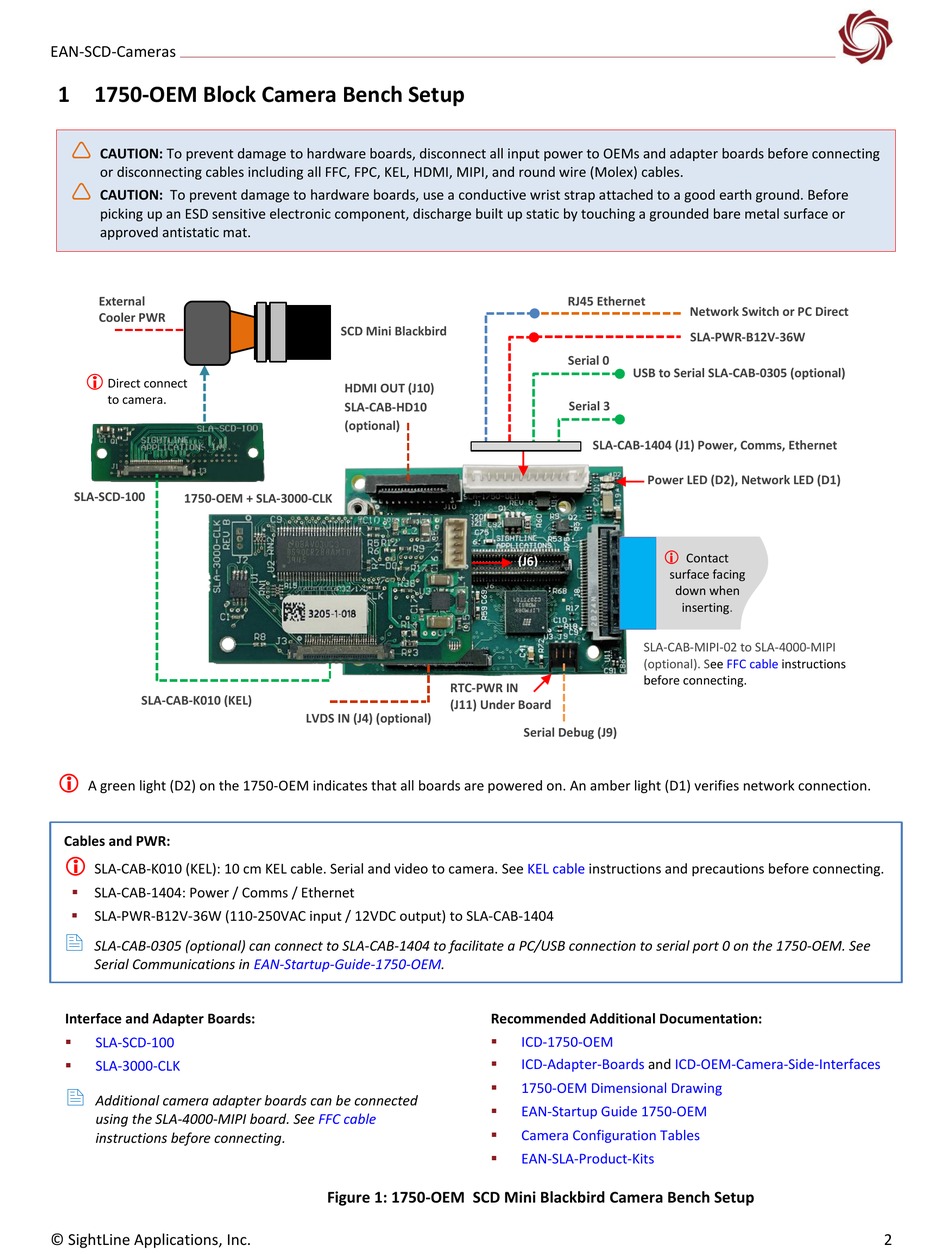

Figure 1: 1750-OEM SCD Mini Blackbird Camera Bench Setup
RJ45 Ethernet
Serial 0
USB to Serial SLA-CAB-0305 (optional)
Serial 3
SLA-CAB-1404 (J1) Power, Comms, Ethernet
Power LED (D2), Network LED (D1)

(J6)
surface facing
SLA-CAB-MIPI-02 to SLA-4000-MIPI
(optional).
before connecting.
Serial Debug (J9)
KEL cable instructions and precautions before connecting.
Recommended Additional Documentation:
▪
ICD-1750-OEM
▪
ICD-Adapter-Boards and
▪
1750-OEM Dimensional Drawing
▪
EAN-Startup Guide 1750-OEM
▪
Camera Configuration Tables
▪
EAN-SLA-Product-Kits
Network Switch or PC Direct
SLA-PWR-B12V-36W
Contact
down when
inserting.
See FFC cable instructions
ICD-OEM-Camera-Side-Interfaces
