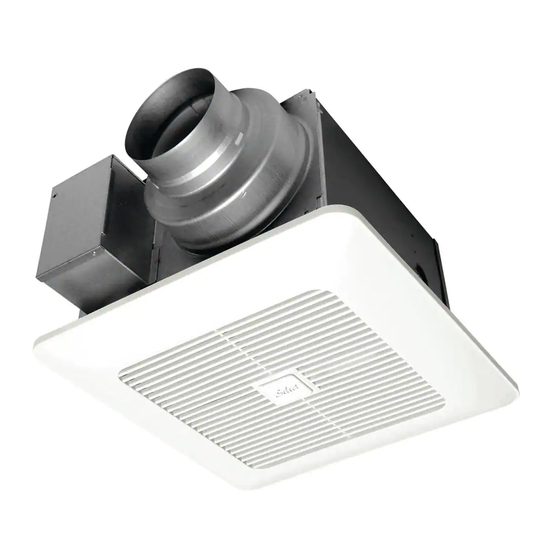

Service Manual Ventilating Fan (North AmericaMarket) FV-0511VK2 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Power (W) Model No. (sones) (rpm) Direction (Hz) Lb. (Kg) (inches) (CFM) <0.3 FV-0511VK2 Exhaust 4 or 6 10.1 (4.5) <0.3 <0.3 HVI Certified performance based on HVI Procedures 915, 916, and 920. Specifications for Multi Speed fans Duct Air Volume...
Page 3
1. Specification Remark: We divide this model into Version A & Version B, because of different motor and Main PCB Section, please put attention with identification of parts when you request a service parts. Parts for Version B Parts for Version A Motor Motor QR code...
2. Parts Identification FV-0511VK2 Main Body Section Parts for Version A Name Plate 80501 (3 pcs) (4 pcs) (5 pcs) (2 pcs) Main PCB Section Base PCB Section (2 pcs) (2 pcs)
Page 5
2. Parts Identification FV-0511VK2 Main Body Section Parts for Version B Name Plate 80501M (3 pcs) (5 pcs) (3 pcs) Main PCB Section Base PCB Section...
Page 6
2.Parts Identification FV-0511VK2 Main PCB Section Parts for Version A Parts for Version B (3 pcs) (4 pcs) (4 pcs) Base PCB Section (2 pcs) 24A/24B Condensation Sensor Module (3 pcs) Sensor Cover Multi-Speed Control Module Motion Sensor Module 1,Please note that above parts with (No. 20, 26, 28) are the optional parts base on D ifferent customer’s request.
Page 7
2. Parts Identification FV-0511VK2 Packing Section...
2. Parts Identification FV-0511VK2 Main Label 80501 80501M 8 Means Year: 2018 8 Means Year: 2018 05 Means Month 05 Means Month 01 Means Day 01 Means Day M: In House MOTOR.
4. Parts List FV-0511VK2 Main Body Section Part No. Part Name Q'ty Remark FFV11QCL1900C Frame Assembly FFV11VKS2910 Adapter Assembly FFV11VK20913 Connector Plate FFV1340008S Ground Wire FFV11KSL2301 Connector Assy FFV11QCL1912A Junction Cover 7A FFV11KSL2M20 Motor 7B FFV11VK2M200 Motor FFV4620109S Motor Lead Wire Assembly...
4. Parts List FV-0511VK2 Base PCB Section Part No. Part Name Q'ty Remark 20 FFV5530071S Multi-Speed Module 21 FFV0900063S Connector Cover 22 FFV0410001S Base PCB Cover 23 FFV5530072S Variable Speed Switch 24A FFV0410002S Base PCB Assembly 24B FFV11VK25100 Base PCB Assembly...
