- Page 1 BRIO 505 Setup Guide Setup Guide...
- Page 2 CONTENTS English Español Français Português...
-
Page 3: Know Your Product

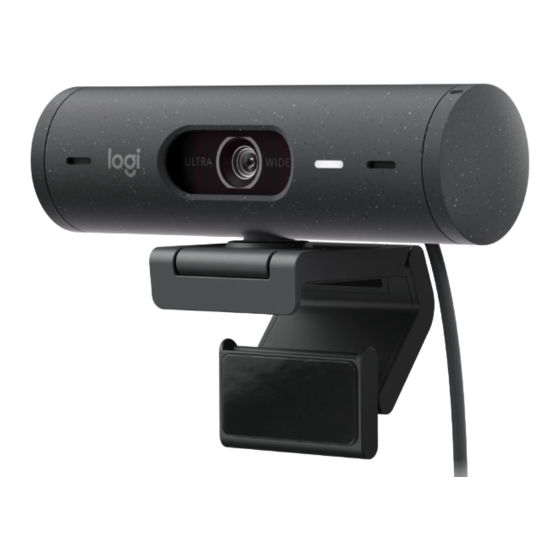

KNOW YOUR PRODUCT BRIO 505 FRONT VIEW WITH FUNCTION INDICATIONS Privacy shutter dial LED activity light Brio 505 webcam Privacy shutter Ultrawide-angle lens with 90° dFOV Dual noise reduction ¼-20 adaptor for microphones 3rd party mounts Magnetic thread mount screw... -
Page 4: Step 1: What's In The Box
STEP 1: WHAT’S IN THE BOX 1 Webcam with attached USB-C cable 2 Mount clip with removable mount adaptor 3 User documentation USB-C STEP 2: DETERMINE MOUNT PLACEMENT Placement to allow one-handed camera adjustments (using micro-suction pad) 1 Determine the best placement for your webcam before continuing 2 Wipe the back of your monitor to clear any dust or dirt... - Page 5 (Optional) Placement without the micro-suction pad Slide the removable mount adapter down to remove it from the webcam foot Adjust the foot on the mounting clip until it is flush with the back of your device and press firmly in place STEP 3: MOUNT ADAPTOR REMOVAL AND CLEANING 1 Remove the webcam from mount and gently...
-
Page 6: Step 6: Successful Connection
STEP 5: CONNECT THE WEBCAM VIA USB-C & GET STARTED 1 Plug the USB-C connector into the USB-C port on your computer, monitor, laptop, or docking station 2 Rotate the dial on the right side of the webcam to open/close the privacy shutter 3 Adjust the webcam by turning side to side and tilting up and down to find the best framing for your video meetings... -
Page 7: Step 7: Show Mode
STEP 7: SHOW MODE Easily show physical items in video calls by tilting the camera down to present sketches, objects, and work in progress There are two ways to use Show Mode: 1 If mount is secured with micro-suction pad: Using one hand, tilt the camera down to show your desktop, and tilt back up to show yourself 2 If mount is not secured with micro-suction... -
Page 8: Adjustable Options
Logi Tune helps boost your webcam performance with periodic software and www.logitech.com/tune firmware updates It is recommended to update your webcam To do so, download Logi Tune from www logitech com/tune ADJUSTABLE OPTIONS • Show Mode • Auto-framing Brio 505 CONNECTED •... - Page 9 STEP 9: (OPTIONAL) ATTACH TO A TRIPOD For placement on a tripod (not included) 1 Rotate counterclockwise to remove the mounting screw from the bottom of the webcam 2 Locate the ¼ inch tripod thread on the bottom of the universal mounting clip 3 Secure the webcam on your tripod by twisting it into the ¼...
-
Page 10: Mounting Clip
