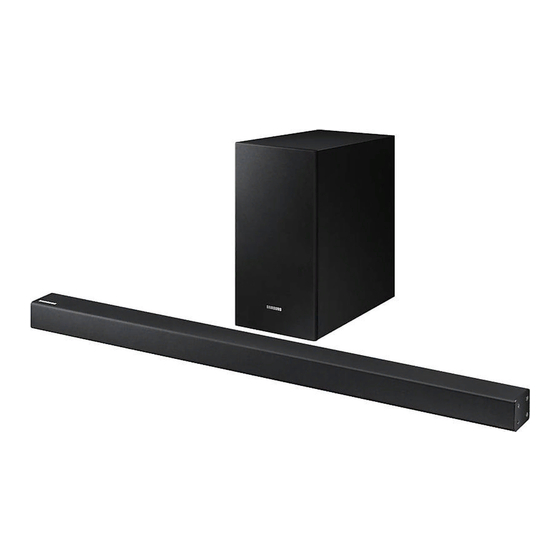

USER MANUAL
HW-R430

Advertisement

Table of Contents
loading

Related Manuals for Samsung HW-R430

Summary of Contents for Samsung HW-R430

  • Page 1 USER MANUAL HW-R430...
  • Page 2 • This apparatus shall always be connected to a Refer to the table below for an explanation of AC outlet with a protective grounding symbols which may be on your Samsung product. connection. • To disconnect the apparatus from the mains,...
  • Page 3 However, if there is no alternative to cutting off the 2. During thunderstorms, disconnect the AC plug, remove the fuse and then safely dispose of plug from the wall outlet. Voltage peaks due the plug. Do not connect the plug to a mains to lightning could damage the unit.

  • Page 4: Table Of Contents

    See this manual for safety instructions, product installation, components, connections, and product specifications. FULL MANUAL You can access the FULL MANUAL on Samsung’s on-line customer support centre by scanning the QR code on the left. To see the manual on your PC or mobile device, download the manual in document format from Samsung’s website.
  • Page 5 Connecting to your TV Method 1. Connecting with a Cable ------------------------- – Connecting using an Optical Cable ------------------------- Method 2. Connecting Wirelessly ------------------------- – Connecting a TV via Bluetooth ------------------------- Connecting an External Device Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- Connecting a USB Storage Device Software Update...

  • Page 6: Checking The Components

    • The power components are labelled ( 1 , 2 , 3 ). For more information about power connections, see page 4. • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care. • Depending on the region, the appearance of the AC plug may differ from the plug displayed above, or it may be supplied integrated with the AC/DC adapter.

  • Page 7: Product Overview

    02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar Right Side of the Soundbar Position the product so that the SAMSUNG logo Volume is located on the top. Power Display Bottom Panel of the Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A)

  • Page 8: Connecting The Soundbar

    03 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components (1, 2, 3) to connect the Subwoofer and Soundbar to an electrical outlet in the following order: 1 Connect the power cord to the Subwoofer. 2 Connect the AC plug to the adapter. 3 Connect the power adapter to the Soundbar and then to a wall socket.

  • Page 9: Connecting The Soundbar To The Subwoofer

    Soundbar unit is connected properly. Connect again. See the instructions for Connection failed manual connection on page 6. Red and See the contact information for the Blinking Malfunction blue Samsung Service Centre in this manual. ENG - 5...

  • Page 10: Manually Connecting The Subwoofer If Automatic Connection Fails

    Manually connecting the Subwoofer if automatic connection fails Before performing the manual connection procedure below: • Check whether the power cables for the Soundbar and subwoofer are connected properly. • Make sure that the Soundbar is turned on. 1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds. •...

  • Page 11: Connecting An Swa-8500S (Sold Separately) To Your Soundbar

    Connecting an SWA-8500S (Sold Separately) to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S, sold separately) to your Soundbar. 1. Connect the Wireless Receiver Module to 2 Surround Speakers. – The speaker cables are colour coded.
  • Page 12 3. Press and hold the Up button on the remote control for at least 5 seconds. • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. • The Soundbar will automatically power on when ID SET is complete. ID SET 5 Sec CAUTION...

  • Page 13: Connecting To Your Tv

    04 CONNECTING TO YOUR TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.

  • Page 14: Method 2. Connecting Wirelessly

    2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.) 3. Select “[AV] Samsung Soundbar R4-Series” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list.
  • Page 15 If the device fails to connect • If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar R4-Series”) appears in the list, delete it. • Then repeat steps 1 through 3. Disconnecting the Soundbar from the TV Press the (Source) button on the right side panel or on the remote control and switch to any mode but “BT”.

  • Page 16: Connecting An External Device

    05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device’s sound through the Soundbar. Connecting using an Optical or Analogue Audio (AUX) Cable BD / DVD player / Set-top box / Right Side of the Soundbar Game console DIGITAL AUDIO IN...

  • Page 17: Connecting A Usb Storage Device

    2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

  • Page 18: Connecting A Mobile Device

    Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV] Samsung Soundbar R4-Series” from the list that appears. • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”...

  • Page 19: Using The Remote Control

    08 USING THE REMOTE CONTROL How to Use the Remote Control Turns the Soundbar on and off. Power Press to select a source connected to the Soundbar. PAIR Source Press the (Mute) button to mute the sound. Press it again to unmute the sound. PAIR PAIR Mute...
  • Page 20 Press the PAIR button. “BT PAIRING” appears in the Soundbar’s display. You can connect the Soundbar to a new Bluetooth device in this mode by selecting the PAIR Soundbar from the Bluetooth device's search list. Bluetooth PAIR SOUND MODE Press the p button to pause a music file temporarily. When you press the button again, the music file plays.
  • Page 21 You can select TREBLE, BASS, or AUDIO SYNC. PAIR • To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons. SOUND MODE Sound Control •...

  • Page 22: Adjusting The Soundbar Volume With A Tv Remote Control

    The default mode for this function is – Each time you push the WOOFER button control by a Samsung TV remote. If your TV is not up and hold it for 5 seconds, the mode a Samsung TV, follow the directions below to switches in the following order: change the settings of this function.

  • Page 23: Installing The Wall Mount

    09 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide Installation Precautions • Install on a vertical wall only. • Do not install in a place with high Holder-Screw Screw temperature or humidity. • Verify whether the wall is strong enough to support the product’s weight.
  • Page 24 2. Align the Wall Mount Guide’s Centre Line 5. Push a screw (not supplied) through each with the centre of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.

  • Page 25: Detaching The Soundbar From The Wall

    Detaching the Soundbar from • The left and right mounts are different shapes. Make sure to position them the Wall correctly. 1. To separate the Soundbar from the wall mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the Wall Mount R Wall Mount L wall as shown.

  • Page 26: Troubleshooting

    10 TROUBLESHOOTING Before seeking assistance, check the following. The unit will not turn on. Is the power cord plugged into the outlet? ; Connect the power plug to the outlet. A function does not work when the button is pressed. Is there static electricity in the air? ;...

  • Page 27: Licence

    11 LICENCE 12 OPEN SOURCE LICENCE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email Manufactured under license from Dolby (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby 13 IMPORTANT Laboratories.

  • Page 28: Specifications And Guide

    Press and hold the SOUND MODE button for Bluetooth more than 5 seconds to turn off Bluetooth Port deactivation method Power function. NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. ENG - 24...
  • Page 29 • Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.
  • Page 30 EIRE UNITED KINGDOM EIRE This Samsung product is warranted for the period of twelve (12) months from the origi- his Samsung product is warranted for the period of twelve (12) months from the origi- beyond the control of Samsung. beyond the control of Samsung.
  • Page 31 © 2019 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Country Contact Centre  Web Site Country Contact Centre ...
