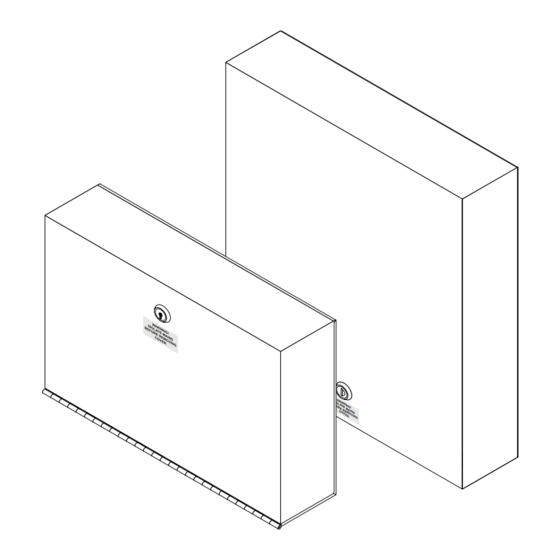

AUDIO & VIDEO CONTROL CABINETS

(2291A, 2291A4, 2291A8, 2291A12, 2291AB, 2291V, 2291V4, 2291V8, 2291V12 & 2291VB)

CAB EN-UK

V.1.3

14/07/16

Technical Manual

VIDEX

I S

A R

B E

O L

N I

F O

A T

N G

R E

M A

R E

I N

C O

M O

V E

V I

N G

WE RECOMMEND

This equipment is installed by a

Competent Electrician, Security

or Communications Engineer.

Table of Contents

Need help?

Do you have a question about the 2291A and is the answer not in the manual?

Questions and answers

Summary of Contents for Videx 2291A

Page 1 VIDEX AUDIO & VIDEO CONTROL CABINETS (2291A, 2291A4, 2291A8, 2291A12, 2291AB, 2291V, 2291V4, 2291V8, 2291V12 & 2291VB) Technical Manual WE RECOMMEND CAB EN-UK This equipment is installed by a V.1.3 Competent Electrician, Security 14/07/16 or Communications Engineer.
Page 2 AUDIO & VIDEO CONTROL CABINETS CUSTOMER SUPPORT CE conformity marking indicates that the product respects the requirements VIDEX SECURITY LTD of the applicable European Community Directives in force specifically EMC www.videxuk.com 2004/108/ECC, LVD 2006/95/ECC and CE-MARKING 93/68/ECC. CE marking is...
Page 3: Table Of Contents
VIDEX AUDIO & VIDEO CONTROL CABINETS CONTENTS MANUAL INTRODUCTION.............................. 4 SYSTEM INTRODUCTION..............................4 CABINET DIMENSIONS AND COMPONENT LAYOUT....................5 - 9 CABINET KNOCKOUTS..............................9 UBPSU5.0 POWER SUPPLY.............................. 10 - 11 ART.893N POWER SUPPLY (for video cabinets only)....................11 - 12 ART.701T BST/GMT TIME CLOCK............................
Page 4: Manual Introduction
It is recommended that the cabinet is installed by a competent electrician, security or communications engineer. VIDEX run free training courses for engineers who are unfamilier or who have not installed these cabinets before. Technical help is also available on 0191 224 3174 during office hours (8:30am - 5:00pm MON to FRI) or via e-mail: tech@videxuk.com.
Page 5: Cabinet Dimensions And Component Layout
VIDEX AUDIO & VIDEO CONTROL CABINETS CABINET DIMENSIONS AND COMPONENT LAYOUT 2291A (CAB2) Cabinet Dimensions 360mm 75mm WARNING! ISOLATE MAINS BEFORE REMOVING COVER 50mm 52mm 52mm 52mm 52mm 52mm 50mm 6x 20mm diameter knockouts for incoming and outgoing cables located on the top and...
Page 6 The cabinet layout shown on page 7 is for the 2291V12 video cabinet with 12 way isolation. All other cabinets (with the exception of the 2291A, 2291AB and 2291VB cabinets) follow the same component layout with video cabinets fitted with the Art.893N psu as well. Cabinet components are listed below and will come pre-wired.
Page 7 VIDEX AUDIO & VIDEO CONTROL CABINETS INTERNAL CABINET LAYOUT VIDEX Mode Down Select On/Off 230 VOLTS FUSE VALUE T3.15A BSY TRD V1 V2 BSY TRD V1 V2 DOOR PANEL 3 DOOR PANEL 1 230 VOLTS FUSE VALUE T3.15A CONTROL CABINETS - TECHNICAL MANUAL...
Page 8 VIDEX AUDIO & VIDEO CONTROL CABINETS 2291AB and 2291VB (CAB1) Cabinet Layout INTERNAL CABINET LAYOUT VIDEX Mode Down Select On/Off 230 VOLTS FUSE VALUE T3.15A BSY TRD V1 V2 BSY TRD V1 V2 DOOR PANEL 3 DOOR PANEL 1 230 VOLTS FUSE VALUE T3.15A...
Page 9: Cabinet Knockouts
VIDEX AUDIO & VIDEO CONTROL CABINETS The 2291AB and 2291VB cabinets, shown on page 8, will have the same internal layout. The video cabinet will also include the Art.893N psu. Cabinet components are listed below and will come pre-wired. CABINET...
Page 10: Ubpsu5.0 Power Supply
12Vdc battery. It is recommended that a 12Vdc, 7.0Ah valve regulated lead-acid type battery is used (Videx part no. NP7-12). The power supply has an inline fuseholder (with pull-up latch for easy fuse replacement) that is used to connect 230Vac mains input.
Page 11: Art.893N Power Supply (For Video Cabinets Only)
VIDEX AUDIO & VIDEO CONTROL CABINETS Technical Specifications Input Voltage : 230Vac @ 50/60Hz +6% -10% Output Voltage : 4x 13.8Vdc, +6% -10% (regulated) Current : 4x 1.25A, (5A max.) PSU Dimensions : 235mm (L) x 100mm (W) x 40mm (D) Working Temp.
Page 12: Art.701T Bst/Gmt Time Clock
VIDEX AUDIO & VIDEO CONTROL CABINETS Technical Specifications Input Voltage : 230Vac @ 50/60Hz +6% -10% Output Voltage : 20Vdc +6% -10% (switched) Current (continuous) : 800mA, (surge 1A max.) Module Dimensions : 157.5mm (L) x 105mm (W) x 65mm (D) Working Temp.
Page 13 VIDEX AUDIO & VIDEO CONTROL CABINETS Programming Flow Chart DISPLAY Monday 15:20 15/02/02 GMT OFF TIME - 15:20 The days of the week are Press the mode button to abbreviated as shown below: DATE - 15/02/02 edit the time and date.
Page 14 VIDEX AUDIO & VIDEO CONTROL CABINETS Art.701T Dimensions 110mm 30mm VIDEX Mode Down Select On/Off Terminal Connections Terminal Function 12Vac or dc input 0V (ground) 0V (switched 0V ground output for TR connection) Normally open going closed trade button connections...
Page 15: Vx123-A / Vx123-V Audio And Video 4 Door Switching Cards
VIDEX AUDIO & VIDEO CONTROL CABINETS VX123-A / VX123-V AUDIO AND VIDEO 4 DOOR SWITCHING CARDS Audio cabinets will include a VX123-A 4 door audio switching card and video cabinets will include the VX123-V 4 door video switching card. Each switching card requires 12Vdc power and will be pre-wired from one of the 12Vdc outputs on the UBPSU5.0 psu.
Page 16 VIDEX AUDIO & VIDEO CONTROL CABINETS Terminal Connections Switching Card ‘through’ Connections Terminal Function 12Vdc power input/output connection GND power input/output connection BUS line data input/output BUS line ground input/output Busy signal connection Trade signal input/output from Art.701T BST/GMT time clock...
Page 17: Art.2204N 4 Way Isolation Card
VIDEX AUDIO & VIDEO CONTROL CABINETS ART.2204N 4 WAY ISOLATION CARD Audio cabinets with isolation (2291A4, 2291A8 and 2291A12) will include 1, 2 or 3 Art.2204N 4 way isolation cards depending on which cabinet is being used. Video cabinets with isolation (2291V4, 2291V8 and 2291V12) will also include the Art.316I 4 way video isolation cards.
Page 18 VIDEX AUDIO & VIDEO CONTROL CABINETS 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5...
Page 19 VIDEX AUDIO & VIDEO CONTROL CABINETS 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5...
Page 20 VIDEX AUDIO & VIDEO CONTROL CABINETS Art.2204N Dimensions 80mm Terminal Connections Isolation Card ‘through’ Connections Terminal Function GND power input/output connection +12Vdc power input/output connection BUS line ground input/output BUS line data input/output Door Open LED input/output connection (switched 12Vdc)
Page 21: Art.316I 4 Way Video Isolation Card (For Video Cabinets Only)
VIDEX AUDIO & VIDEO CONTROL CABINETS ART.316I 4 WAY VIDEO ISOLATION CARD Video cabinets with the Art.2204N isolation cards (2291V4, 2291V8 and 2291V12) will also include an Art.316I 4 way video isolation card for each Art.2204N. The Art.316I will protect against shorts or faults on the video connections (+20V, 0V, V1 and V2) to an apartment.
Page 22 VIDEX AUDIO & VIDEO CONTROL CABINETS Terminal Connections Isolation Card ‘through’ Connections Terminal Function Balanced video signal sync+ from previous Art.316I, camera or control cabinet Balanced video signal sync- from previous Art.316I, camera or control cabinet 20Vdc input/output from Art.893N psu, previous Art.316I or control cabinet 0V input/output from Art.893N psu, previous Art.316I or control cabinet...
Page 23: Art.2206N Bus Exchange Device (For 2291Ab And 2291Vb Cabinets Only)
VIDEX AUDIO & VIDEO CONTROL CABINETS ART.2206N BUS EXCHANGE DEVICE The Art.2206N bus exchange device will only be fitted in the 2291AB and 2291VB cabinets. It is a bus exchange device which allows the VX2200 digital system to be expanded up to 998 apartments. There are two applications in which this unit can be used.
Page 24 VIDEX AUDIO & VIDEO CONTROL CABINETS Setting Unit Address (switches 1 - 4) Unit Address Dip-Switch No. (status) Dip-Switch (Block ID) 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4...
Page 25 VIDEX AUDIO & VIDEO CONTROL CABINETS Video Signal Mode using the Jumpers The jumpers JP2, JP3, JP4 and JP5 are used for the video signal setup on the Art.2206N and consists of the following settings: JP2 and JP3 sets up the video signal.
Page 26 VIDEX AUDIO & VIDEO CONTROL CABINETS Terminal Connections Terminal Function Main Databus input from any main door panel(s) towards the Art.2206N bus exchanger Local Databus input from the block door panel towards the bus Art.2206N bus exchanger Databus (bus out) output from the Art.2206N bus exchanger towards the audio and/or...
Page 27: Mounting The Cabinet
VIDEX AUDIO & VIDEO CONTROL CABINETS MOUNTING THE CABINET The CAB1 and CAB2 cabinets are suitable for fixed installations only and should only be fitted to solid walls. Where possible they should be located at a central point (typically in a riser cupboard or small electrical room).
Page 28 VIDEX AUDIO & VIDEO CONTROL CABINETS ease knockout cover back and forth Fig.3A Fig.3B • If necessary file down and smooth out any rough edges on the knockout hole and then fit a suitable size grommet (see Fig.4). fit a suitable size grommet into the knockout hole Fig.4...
Page 29 IMPORTANT NOTE: Any of the cabinet fixings mentioned above (mounting screws, rawl plugs, grommets, cable ties, cable bushings and spacers etc.) can be sourced from any high street hardware store/specialist e.g. Wickes, B&Q, Screwfix etc. or from similiar online websites. Videx do not provide these fixings. CONTROL CABINETS - TECHNICAL MANUAL...
Page 30: Connection To Mains, Safety And Guidance Notes
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE COMMENCING WITH THE INSTALLATION. Videx recommends that any cabling and Videx product be installed by a competent and qualified electrician, security installation speclialist or communications engineer. DO NOT install any Videx product in areas where the following may be present or occur: •...
Page 31: Earthing The Cabinet
VIDEX AUDIO & VIDEO CONTROL CABINETS Mains FUSE 1 PHASE SUPPLY (220 - 240Vac, 50/60Hz) SWITCHED FUSE SPUR Fig.7 EARTHING THE CABINET The earth connection on the cabinet’s inline fuseholder should be connected to the earth stud on the cabinets base plate and then linked across to the earth stud on the cabinet’s lid using the earth straps provided.
Page 32: Additional Information
VIDEX AUDIO & VIDEO CONTROL CABINETS ADDITIONAL INFORMATION Additional information regarding cabinet components can be found in the following technical documents and manuals: • VX2200 Technical Manual - Edition 2014, Version 1.2. Additional information regarding connection to mains supply voltage can be found in the following regulations: •...
Page 33 VIDEX AUDIO & VIDEO CONTROL CABINETS CONTROL CABINETS - TECHNICAL MANUAL EN-UK - V.1.3 - 14/07/16...
Page 34 VIDEX AUDIO & VIDEO CONTROL CABINETS CONTROL CABINETS - TECHNICAL MANUAL EN-UK - V.1.3 - 14/07/16...
Page 35 VIDEX AUDIO & VIDEO CONTROL CABINETS CONTROL CABINETS - TECHNICAL MANUAL EN-UK - V.1.3 - 14/07/16...
Page 36 VIDEX Southern Office Videx Security Ltd. 1 Osprey, Trinity Park Trinity Way’ London E4 8TD Northern Office Videx Security Ltd. Unit 4-7 Chillingham Industrial Estate Newcastle Upon Tyne NE6 2XX CONTROL CABINETS - TECHNICAL MANUAL EN-UK - V.1.3 - 14/07/16...
