Sealey SA686.V2 Manual

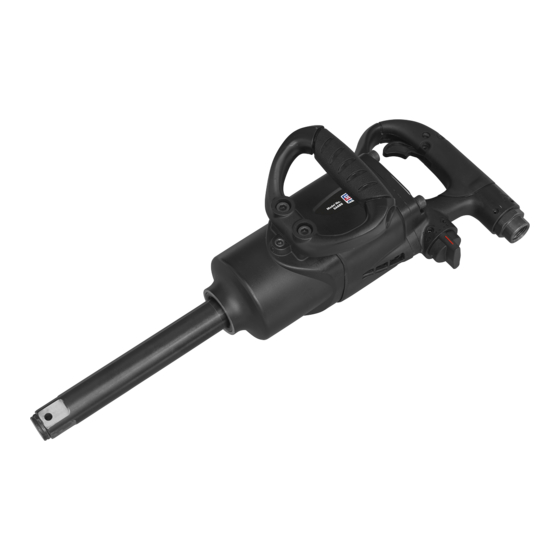

Air impact wrench sq. drive twin hammer - compact

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
instruction
protection
manual
1. SAFETY
Follow all workshop safety rules, regulations and conditions when using wrench.
9
WARNING! Disconnect from air supply before changing accessories or servicing.
Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts
9
may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections
9
are secure.
Only use impact sockets which are specifically designed for use with an impact wrench.
9
Wear approved safety eye/face shield, ear defenders and hand protection.
9
Do not wear loose-fitting gloves or gloves with frayed fingers always wear suitable gloves to protect hands.
8
WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we
recommend you wear suitable respiratory protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and non essential persons away from the working area.
9
DO NOT use the wrench for a task it is not designed to perform.
8
WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
DO NOT use wrench unless you have been instructed in its use by a qualified person.
8
DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
8
DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT carry wrench with your hand on the trigger in order to avoid unintentional starting.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. INTRODUCTION
Compact wrench weighs just 8.1kg, manufactured from a composite and aluminium housing. Fitted with soft grip handles
to help reduce vibration and chill effects. Features twin hammer function providing extremely high output ideal for commercial
and agricultural applications. Twist controls for simple choice of speed and direction.
3. SPECIFICATION
Model no: ......................................................SA686-V2.
Drive: .................................................................... 1"Sq.
Breakaway torque: ...........................3000lb.ft (4047Nm)
Maximum torque: .............................2700lb.ft (3661Nm)
Free speed: ...................................................... 5500rpm
Operating pressure: .............................................. 90psi
Inlet size: ...........................................................1/2"BSP
Weight: ............................................................. ...7.72kg
Noise power/pressure: ................................. 101.1dB(A)
Vibration/uncertainty: ................................. 12.87/1.m/s²
4. PREPARATION
4.1.
AIR SUPPLY
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure
and unclean air will shorten the product life due to excessive wear and may be dangerous causing damage and/or personal
injury.
4.1.1.
Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
4.1.2.
You will require an air pressure of 90psi and an air flow according to specification.
4.1.3.
Drain the compressor air tank daily. Water in the air line will damage the wrench.
4.1.4.
Clean compressor air inlet filter weekly.
© Jack Sealey Limited
AIR IMPACT WRENCH 1" SQ. DRIVE TWIN
HAMMER - COMPACT
MODEL NO:
Wear ear
Wear a mask Wear protective
protection
Original Language Version
SA686.V2
gloves
SA686 V2 Issue: 1 30/08/22

Advertisement

loading

Summary of Contents for Sealey SA686.V2

  • Page 1 SA686.V2 MODEL NO: Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
  • Page 2 6.1. If the air system does not have an oiler, lubricate the air wrench daily with a few drops of Sealey air tool oil dripped into the air inlet. Clean the wrench after use. DO NOT use worn, or damaged sockets.
  • Page 3 Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our technical team on technical@sealey.co.uk or 01284 757505. Important: No Liability is accepted for incorrect use of this product.
