Sealey LED091 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Inspect the unit for wear and damage to ensure items are safe before use or inserting a battery. If worn or damaged DO NOT use.
9
DO NOT shine lamp directly into your, another person's or an animal's eyes.
8
DO NOT use the lamp if you suspect that the battery or the lamp casing is damaged.
8
DO NOT expose to temperatures above 60°C (140°F).
8
2. INTRODUCTION
Produces bright white light from single 1W SMD LED. Sliding action light focus can be adjusted from spotlight to wide area. Strobe light
function for emergencies. Multi-tool function includes Phillips screwdriver, slotted screwdriver, bottle opener, whistle, ball pen and safety
hammer. Ideal for storing in glove box. Includes 3 x LR44 batteries (supplied).
3. SPECIFICATION
Model No.: ................................................................ LED091
Batteries: ..................................................................3 x LR44
LED Type: ........................................................ 1W SMD LED
Lumen Output: ..............................................Up to 30 Lumen
Operating Time: .............................................................2.5hr
4. CONTENTS
1 2
fig.1
Item Description
1 Safety Hammer Cap
2 Safety Hammer / Bottle Opener
3 Screw Driver Bit
4 Bit Housing
5 Whistle
6 Pen
7 Removable pen clip
8 On/Off/Mode Switch, Light Focus Slider, Battery Compartment
5. OPERATION
5.1. BATTERIES
5.1.1. Before first use, unscrew the battery compartment and remove the film layers separating the batteries from the terminal.
5.2. LIGHT MODES
5.2.1. Press the On/Off button (fig.1.7) once to turn the LED on. Press once more to start strobe function. Press once more to turn LED off.
5.2.2. ` To adjust focus, slide the lens collar (fig.1.7) either forwards or backwards.
5.3. ` SCREW DRIVER FUNCTION
5.3.1. Unscrew the Bit Housing (fig.1.4) from its mating parts. Swap the Screw Driver Bit (fig.1.3) to use either slot or cross head end.
© Jack Sealey Limited

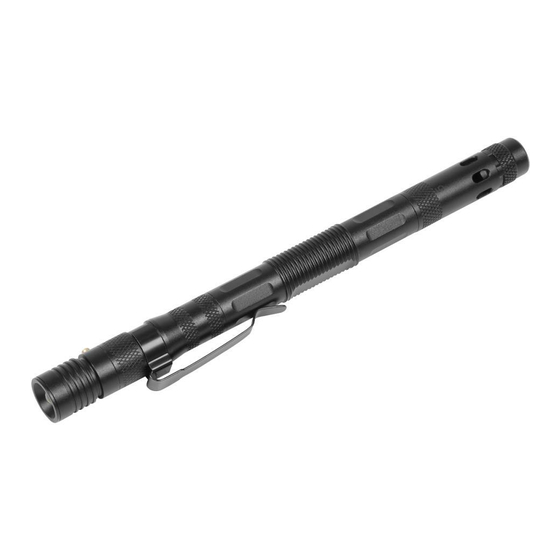

1W SMD LED PENLIGHT 9-IN-1 MULTI-TOOL
LED091
MODEL NO:
4
3
Original Language Version
5 6 7 8
LED091 Issue 1 09/06/21
