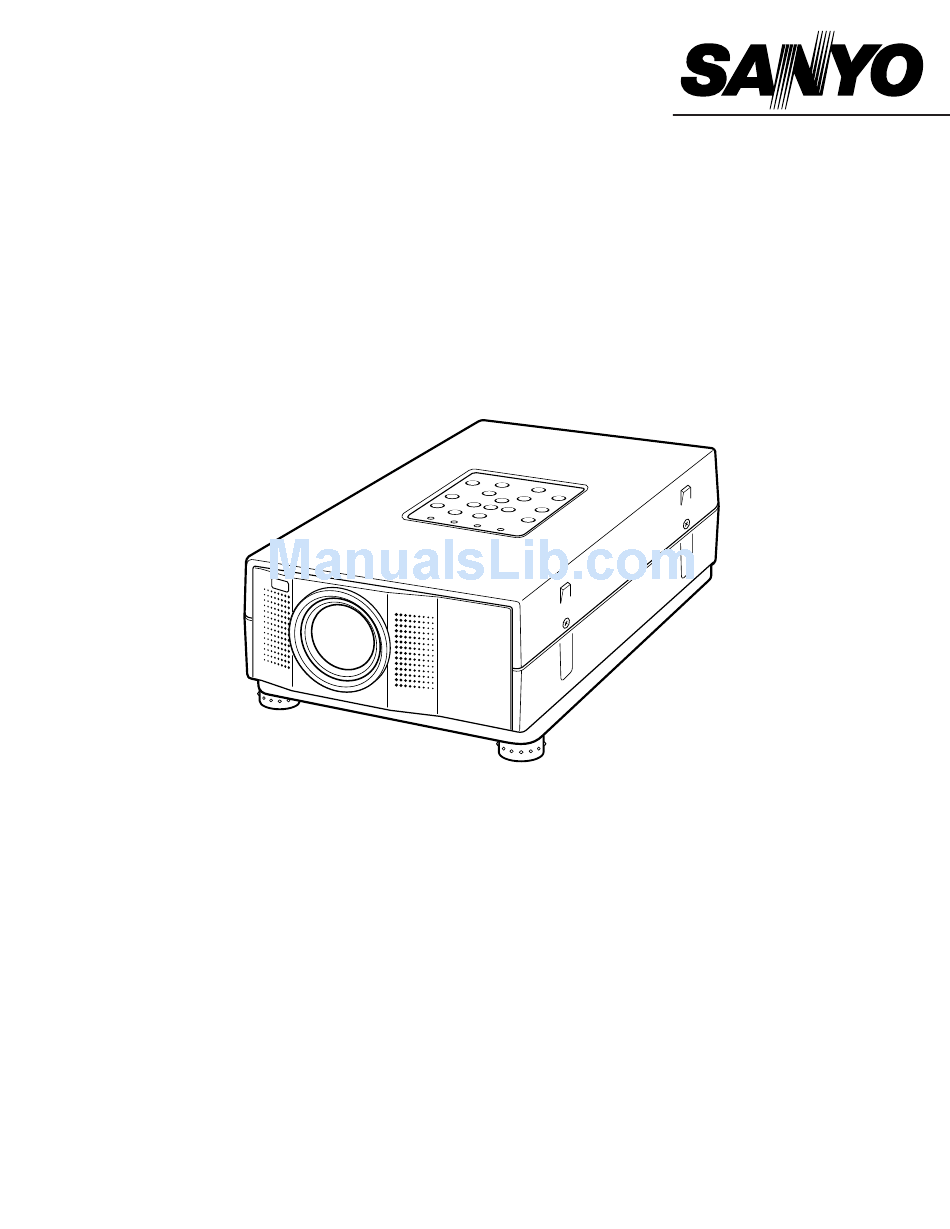

- Page 1 Multimedia Projector PLC-XU07N MODEL Owner's Manual...
-
Page 2: To The Owner
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. -
Page 3: Important Safety Instructions
If the projector has been dropped or the cabinet has been damaged. f. When the projector exhibits a distinct change in performance-this indicates a need for service. -
Page 4: Table Of Contents
FEATURES AND DESIGN PREPARATION NAME OF EACH PART OF THE PROJECTOR SETTING-UP THE PROJECTOR POSITIONING THE PROJECTOR ADJUSTABLE FEET CONNECTING THE AC POWER CORD VENTILATION MOVING THE PROJECTOR CONNECTING THE PROJECTOR TERMINALS OF THE PROJECTOR CONNECTING TO THE VIDEO EQUIPMENT... -
Page 5: Features And Design
FEATURES AND DESIGN This Multimedia Projector is designed with most advance technology for portability, durability, and ease for use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compatibility This projector is compatible with many different types of personal computers and video devices, including;... -
Page 6: Preparation
PREPARATION NAME OF EACH PART OF THE PROJECTOR FRONT OF THE CABINET PROJECTION LENS INFRARED REMOTE RECEIVER SPEAKER (Monaural) LENS COVER BACK OF THE CABINET EXHAUST VENT HOT AIR EXHAUSTED ! Air blown from the exhaust vent is hot. When using or installing the projector, following attention should be taken. -
Page 7: Setting-Up The Projector
SETTING-UP THE PROJECTOR POSITIONING THE PROJECTOR This projector is basically designed to project on a flat projection surface. The projector can be focused from 4.6'(1.4m) ~ 35.4'(10.8m). Refer to the figure below to adjust the screen size. 35.4' (10.8m) 24.0' (7.3m) 300"... -
Page 8: Connecting The Ac Power Cord
AC Power Cord, the appliance is in Stand-by Mode and consumes a little electric power. This projector is equipped cooling fans for protection from overheating. Pay attention to the following to ensure the ventilation and avoid a possible risk of fire and malfunction. -
Page 9: Moving The Projector
When carrying the projector, use a carrying case recommended by Sanyo. Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, use a case recommended by Sanyo. -
Page 10: Connecting The Projector
Cable for PS/2 Port is supplied.) SERIAL PORT CONNECTOR Terminal : DIN 8-PIN This connector is used to connect a computer to control the projector with the PC. For this connection, the Serial Cable is required (This cable is not supplied). MONITOR OUT... -
Page 11: Connecting To The Video Equipment
Video Audio Cable NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on. -
Page 12: Connecting To The Ibm-Compatible Computer
These cables are not supplied with this projector. NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched... - Page 13 2. Pull the portion (A) to the arrow direction and remove connector. Use either of these Mouse Cables corresponding with your terminal of your computer. CONNECTING THE PROJECTOR MONITOR OUT COMPUTER IN CONTROL PORT SERIAL AUDIO IN AUDIO OUT ▼...
-
Page 14: Connecting To The Macintosh Computer
These cables are not supplied with this projector. NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched... - Page 15 1. Hold the portion (B) of the connector with one hand. 2. Pull the portion (A) to the arrow direction and remove connector. CONNECTING THE PROJECTOR MAC/VGA ADAPTER (not supplied) Set the switches as shown in the table below depend- ing on the RESOLUTION...
-
Page 16: Before Operation
OPERATION OF THE REMOTE CONTROL This remote control unit is not only able to operate the projector but also usable as a wireless mouse for a PC. POINT button and two CLICK buttons are used for wireless mouse operation. (Refer to page 33.) Wireless mouse is usable when PC mouse pointer is displayed on the screen, the wireless mouse cannot be used when the On-Screen Menu is displayed. -
Page 17: Remote Control Batteries Installation
Operating Range of the Remote Control Point the remote control toward the projector (Receiver Window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5m) and 60° front and rear of the projector FRONT 16.4' (5 m) 60°... -
Page 18: Top Controls And Indicators
NORMAL BUTTON Used to reset to normal picture adjustment preset by factory. (Refer to P28 and 31.) INDICATOR READY INDICATOR This indicator is lit in green when the projector is ready to be turned on. WARNING LAMP TEMP. REPLACE READY... -
Page 19: Operating On-Screen Menu
OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through ON-SCREEN MENU. Refer to the following pages to operate the each adjustment on the ON-SCREEN MENU. 1 MOVING THE POINTER Move the pointer (see the NOTE below) by pressing POINT button(s) on the Top Control or on the Remote Control Unit. -
Page 20: Menu Bar
BEFORE OPERATION MENU BAR IN COMPUTER MODE MODE MENU AUTO IMAGE MENU Used to select Used to adjust Fine sync., Total dots, the Computer and Picture Position input mode. automatically. (Refer to P24) (Refer to P28) SYSTEM MENU Used to select a computer system. -
Page 21: Basic Operations
If the TEMPERATURE WARNING indicator still continues to flash, call your authorized dealer or service station. NOTE : The Cooling Fan may work for cooling while the projector is turned off. When the Cooling Fan is working, TEMPERATURE WARNING INDICATOR flashes red. -
Page 22: Adjusting The Picture
BASIC OPERATION ZOOM Adjustment Press ZOOM button on the Remote Control Unit or ZOOM button on the Top Control to turn into the ZOOM mode. Press ZOOM button to have the image larger, and press ZOOM button to have the smaller. FOCUS Adjustment Press FOCUS button on the Remote Control Unit or... -
Page 23: Sound Adjustment
SOUND ADJUSTMENT Direct Operation Sound Volume Adjustment Press the VOLUME (+/–) buttons (located on the Top Control or on the Remote Control Unit) to adjust the volume. The Volume dialog box appears on the screen for a few seconds. (+) button to increase the volume, and (–) button decreasing. Sound Mute Setting Press the MUTE button on the Remote Control Unit to cut off the sound. -
Page 24: Computer Mode
It shows the information of the computer of the mode selected. SELECTING COMPUTER SYSTEM Automatic Multiscanning system This projector automatically adapt to most different types of computer based on VGA, SVGA or XGA (refer to "COMPATIBLE COMPUTER SPECIFICATION" on page 26). When selecting Computer, this projector become automatically suited to the incoming signal and projectors the proper image without any special setting. -
Page 25: Pc Adjustment
However, some computers employ special signal formats which are different from the standard ones and may not be detected by this projector. If this happens, the projector cannot reproduce a proper image and the image is recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. -
Page 26: Compatible Computer Specifications
COMPUTER MODE COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 165 MHz of Dot Clock. ON-SCREEN RESOLUTION DISPLAY VGA 1 640 x 480 VGA 2 720 x 400... -
Page 27: Picture Image Adjustment
PICTURE IMAGE ADJUSTMENT Adjust Picture Image Manually Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE press the SELECT button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to of the item that you want to change by pressing the POINT UP/DOWN buttons. -
Page 28: Auto Image Function
POSITION ADJUSTMENT on page 29 to adjust Picture Position.) Normal Function The normal picture level is preset on this projector by the factory and can be restored anytime by pressing the NORMAL button (located on the Top Control or on the Remote Control Unit). The "Normal" display will be displayed on the screen for a few seconds. -
Page 29: Picture Position Adjustment
To pan the image, press POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size. This projector cannot display in the resolution over than 1240 X 1024. If your computer’s screen resolution is higher than 1240 X 1024, reset the resolution to the lower before connecting the projector. -
Page 30: Video Mode
When the Video System is PAL-M select the system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M If the projector cannot reproduce the proper video image, it is required to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, or PAL-M. -
Page 31: Picture Image Adjustment
PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the image in desirable size. Press the MENU button and the ON-SCREEN MENU will appear. -
Page 32: Setting
Move the arrow to the item that you want to set, and then press the SELECT button to set it "On" or "Off". When this function is in the "On" position, this projector Blue back will produce a blue image without video noise on the screen when the video source is unplugged or turned off. -
Page 33: Appendix
APPENDIX OPERATING WIRELESS MOUSE The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for a PC. POINT buttons and two CLICK buttons are used for wireless mouse operation. Wireless mouse is usable when PC mouse pointer is displayed on the screen. When the menu or indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used. -
Page 34: Maintenance
The Indicator stops to flash when the temperature of the projector become normal. When the TEMPERATURE WARNING Indicator continues to flash, make sure the matters below. The Ventilation slots of the projector are blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed. -
Page 35: Lamp Replacement
CAUTION For continued safety, replace with a lamp assembly of the same type. Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot. Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury. -
Page 36: Troubleshooting
4. If the projector still does not produce the image, re-start the computer. 5. If the image sill does not appear, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before your power up the projector. - Page 37 High voltages are used to operate this projector. Do not attempt to open the cabinet. Sanyo Service is easily obtained. If after following all operating instructions, you find that service is necessary, contact the SFS Corporation in Los Angeles, or the store where you purchased the unit. Give the model number and explain the difficulty.
-
Page 38: Technical Specifications
TECHNICAL SPECIFICATIONS Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Panel Resolution Number of Pixels Color System Scanning Frequency Projection Image size (Diagonal) Horizontal Resolution Projection Lens Throw Distance Projection Lamp AV Input Jacks Computer Input Jacks... -
Page 39: Optional Parts
OPTIONAL PARTS The parts listed below are optionally supplied. When ordering those parts, give the name and the Type No. of it to the sales dealer. Control Cable for Serial Port Control Cable for ADB Port MAC Adapter Type No. : POA-MC12SRL Type No. - Page 40 In order to obtain warranty service, the product must be delivered to and picked up from and Authorized Sanyo Factory Service Center at the user's expense, unless specifically stated otherwise in this warranty. the names and addresses of authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.
