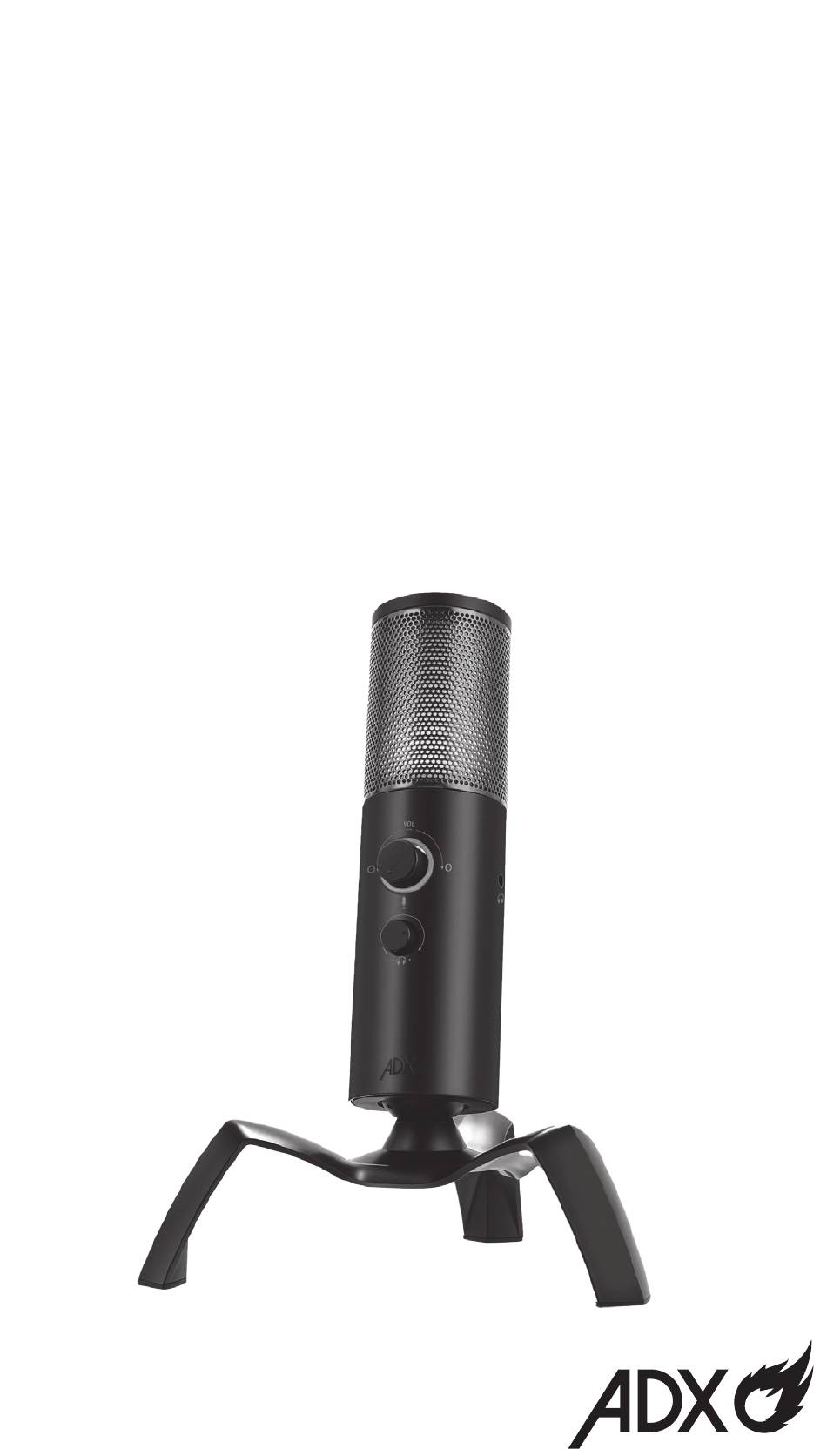

- Page 1 FIRECAST Pro. 24 MICROPHONE INSTRUCTION MANUAL ADXMIC24...
-
Page 2: Table Of Contents
Contents Safety Warnings ................. 3 Unpacking ..................4 Product Overview ................5 Front View ......................5 Side ........................5 Top View ......................6 Rear View ......................6 Installation with the Stand ............... 6 Connections ..................7 Connecting to the computer ...............7 Using Earphones ....................7 Software Installation ................. -
Page 3: Safety Warnings
Safety Warnings Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way. Temperature • Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires. -
Page 4: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Product Overview
Product Overview Front View Side View 1. Microphone 2. Microphone Volume Knob • Turn to + position to maximize the microphone's volume. • Turn to – position to mute the microphone's volume. The knob will light up red. • Turn to the position to enter Cardioid microphone mode. -
Page 6: Top View
Top View Rear View USB-C 1. Mute Button Press to mute the microphone, and press again to unmute. 2. USB-C Socket Connect the USB-C plug of the USB cable to the UBS-C socket and the other end of the cable to the USB socket of your PC. Installation with the stand Place the microphone onto the tripod, and then secure it by turning clockwise. -
Page 7: Connections
Connections Connecting to the computer Connect the microphone to your computer (not included) with the provided USB-C cable. Rear view of the unit USB-C USB Cable Computer (not included) Using Earphones Turn down the volume before connecting earphones (not included). Slowly raise the volume with the earphones on until you reach your desired volume. -
Page 8: Software Installation
(under ADX HUB 2) 3. Run the software (ADX HUB 2 Setup.exe) installer. 4. Follow the installation instruction to complete the installation. 5. Choose ADX HUB 2.exe from the desktop to start the software. User Interface 1. Choose ADX HUB.exe from the desktop to launch the software. -
Page 9: User Interface- Light
Speed • 3. Select “Apply“ to implement your settings, or “Reset“ to reset all settings. User Interface - Light Effect If one more ADX gaming device is connected, you may synchronize their light effect. 1. Select Light Effect, and the devices you want to apply the light effect. -
Page 10: Hints And Tips
Hints and Tips • Make sure the USB plug is fully plugged into a USB port and the computer is on or try to use a different USB port. • If the unit is not working properly, re-insert the USB plug into the USB port. -
Page 11: System Requirements
System Requirements Operating Systems: Microsoft® Windows® 10 / 11 Hardware: PC with available USB 2.0 port Specifications Model ADXMIC24 Frequency Response 20 Hz - 20 KHz Sensitivity -43dB for cardioid -44dB for omnidirectional Mic Sample Rate 48 KHZ at 16bit Polar Pattern Cardioid / Omnidirectional Operation Voltage... - Page 12 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
