Summary of Contents for Samsung MAX-L82

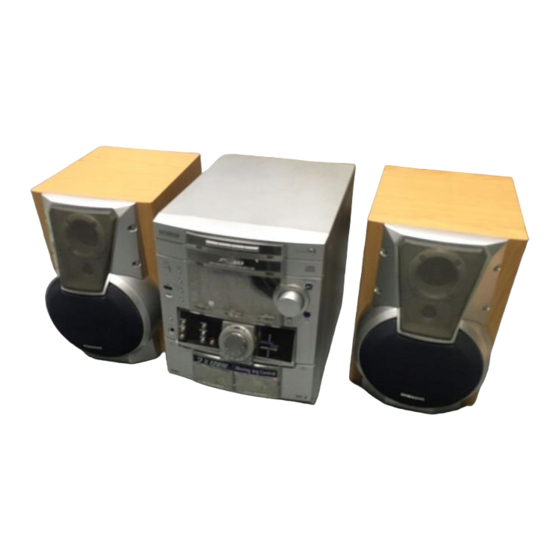

- Page 1 THREE-CD CHANGER MINI-COMPACT SYSTEM CD-R/RW PLAYBACK MAX-L82 MAX-WL85 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. -
Page 3: Table Of Contents
Cancelling the Timer ... 22 Mute Function ... 22 Selecting an Equalizer Preset ... 22 Power Sound/Surround Function ... 22 Super Bass Sound (MAX-L82 ONLY) ... 23 Subwoofer Level Function (MAX-WL85 ONLY)... 23 Connecting Headphones... 23 ECOMMENDATIONS FOR Safety Precautions ... 24 Cleaning Your Mini-Compact System ... -
Page 4: Front Panel View
22. Counter Reset 23. Preset/Manual or Stop button 24. Cassette Deck 2 25. Search Function buttons 26. Moving Jog 27. Enter 28. Sound Mode 29. S.BASS (MAX-L82) 30. Volume 31. Power Surround 32. Function Selection buttons 33. Open/Close 34. Disc Change Open/Close... -
Page 5: Remote Control
Remote Control On/Standby Disc Skip Sound Mode Deck 1/2 CD Repeat Tape Rewind and Fast-Forward CD Stop Volume Increase Volume Decrease 10. Tuning Mode Timer On/Standby On/Off Mute Sound Program Mode Disc Skip /Set Repeat Deck 1/2 Mono/ST. TUNER Band TAPE VOL. -
Page 6: Rear Panel View
Rear Panel View <MAX-L82> 1. AM Aerial Connector Terminal 2. FM Aerial Connector Terminal 3. Loudspeaker Connector Terminals 4. CD Digital out Jack 5. AUX-Input AM ANT. FM 75 SPEAKER(6 ) DIGITAL (OPTICAL) AUX IN 1. Subwooferspeaker Connector Terminals 2. AM Aerial Connector Terminal 3. -
Page 7: Where To Install Your Mini-Compact System
Where to Install Your Mini-Compact System To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes. -
Page 8: Connecting To An External Source
Match the polarity (colors): Red (+) to red (+) and black (–) to black (–). Release the finger from the clamp. Use only speakers with the same speaker impedance as indicat- ed by the speaker terminals on the rear of the unit. <MAX-L82> SPEAKER(6 ) <MAX-WL85> SUBWOOFER(4 ) -
Page 9: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . -
Page 10: Viewing The Various Functions On Your System
Viewing the Various Functions on Your System You can view the various functions available on your system. Press the Demo button. Result: The various functions available are listed in turn on the display. All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections. -
Page 11: Loading And Changing Compact Discs
Loading and Changing Compact Discs The CD disc changer can contain up to three 12 cm or 8 cm compact discs without using an adapter. Never force the compact disc carrousel when opening and closing the compartment. Never press down or place objects on the carrousel. Always treat your compact discs with care;... -
Page 12: Selecting A Cd In The Disc Changer
Selecting a CD in the Disc changer The CD function is automatically selected when Disc Skip is pushed. To select a specific disc, press the corresponding Disc (1, 2, 3) button on the front panel or Disc Skip on the remote control, until the required disc indicator flashes. -
Page 13: Repeating One Or All Tracks On The Compact Discs
Repeating One or All Tracks on the Compact Discs You can repeat indefinitely: A specific track on a compact disc. All tracks on the compact disc selected. All discs loaded in the carrousel To repeat... Press CD Repeat on the Front Panel one or more times until... -
Page 14: Checking Or Changing Programmed Tracks
Checking or Changing Programmed Tracks You can check or change your selection of tracks at any time. Press once if you have started listening to the selection. Press Program. Result: The following indications are displayed: (CH = Check, 01=Program No, DI = Disc No, – – = Track No on the disc) If you have already programmed 24 tracks, CH is displayed instead of PR when you press Program. -
Page 15: Selecting A Stored Station
Searching for and Storing the Radio Stations (continued) If you do not want to store the radio station found, revert to Step 4 and search for another station. Otherwise: a Press Preset/Memory. Result: The PRGM is displayed for a few seconds. b Press Preset/Manual Down and Up to assign a program number between 1 and 15. -
Page 16: About Rds Broadcasting
About RDS broadcasting This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. -
Page 17: Pty (Program Type) Indication And Pty-Search Function
PTY (Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The 30 PTY modes are shown in the display by pressing the PTY button. -
Page 18: Tape
Listening to a Cassette Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 25. Switch the system on by pressing the On/Standby button. Select the TAPE function by pressing TAPE on the front panel. Open either cassette deck 1 or 2 by pushing and releasing the deck cover where Push Eject ( ) is written. -
Page 19: Recording A Radio Program
Recording a Radio Program You can record a radio program of your choice. You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on the recording. Switch the system on by pressing On/Standby. Insert a blank cassette in Deck 2. -
Page 20: Selecting The Cassette Playback Mode (Deck 2 Only)
Selecting the Cassette Playback Mode (Deck 2 Only) Your mini-compact system has three cassette playback modes which enable you to listen to both sides of a cassette automatically. Press Reverse Mode until the appropriate symbol is displayed. When the display indicates... The mini-compact system plays back... One side of the selected cassette and then stops. -
Page 21: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 22: Cancelling The Timer
Cancelling the Timer After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it. You can stop the timer at any time (system on or in standby mode). To... -
Page 23: Super Bass Sound (Max-L82 Only)
Super Bass Sound (MAX-L82 ONLY) our mini-compact system has a bass amplification function called S.Bass (Super Bass Sound). This function makes the sound more powerful and real. Press the S. BASS button on the front panel. Result: S. BASS is displayed and “SBS ON” is displayed for a few seconds. -
Page 24: Safety Precautions
Safety Precautions The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system. Open/Close Disc 1 Disc 2 Disc 3 Disc Change Power Surround Standby Timer/ Clock Volume Display Demo Band TUNER TAPE Sound Mode Enter Mute Mono/ST... -
Page 25: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. -
Page 26: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity AM (MW) Signal/noise ratio Usable sensitivity Total harmonic distortion Signal/noise ratio... - Page 27 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-00780B...
