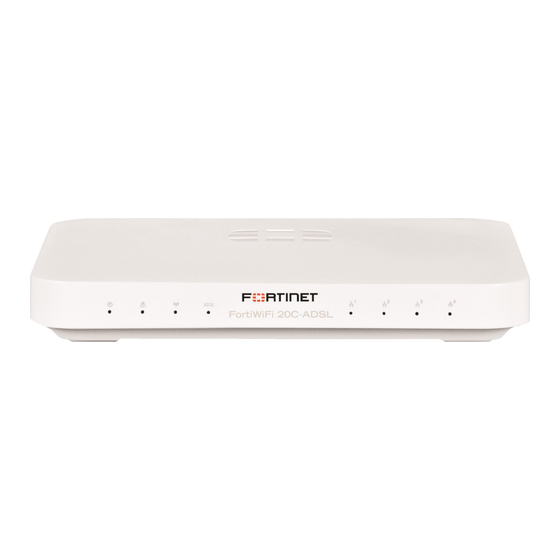

- Page 1 FortiWiFi 20C-ADSL-A QuickStart Guide...
- Page 2 Copyright© 2013 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, and FortiGuard®, are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance metrics contained herein were attained in internal lab tests under ideal conditions, and performance may vary.
-
Page 3: Table Of Contents
Table of Contents Package Contents Connecting Your Device FortiExplorer Configuration Options Technical Specifications LED Specifications Documentation and Links Cautions and Warnings Register Your Product Product License Agreement... -
Page 4: Package Contents
Package Contents Thank you for purchasing the FortiWiFi 20C-ADSL-A. Fortinet’s consolidated security solutions provide an integrated set of core security and network services in a single, easy-to-manage, high- performance appliance that is capable of supporting a wide range of deployment scenarios. -
Page 5: Connecting Your Device
Caution: To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord Caution: Electrostatic discharge (ESD) can damage your Fortinet equipment. Caution: Do not place heavy objects on the unit. -
Page 6: Fortiexplorer
FortiExplorer FortiExplorer provides a user-friendly tool that you can use to configure a FortiWiFi unit over a standard USB connection, rather than using a console cable or Ethernet connection. Caution: Do not connect the USB cable until after FortiExplorer has been installed. USB A to USB B Cable ADSL... - Page 7 Mac OS X Install 1. Double-click the .dmg file and drag the FortiExplorer program file into the Applications folder. 2. Connect the USB cable to the FortiWiFi unit and then to the management computer. 3. Double-click the FortiExplorer icon to launch the application. Configuration Options With FortiExplorer, you are provided a number of options on how to configure the FortiWiFi unit, depending on your level of comfort with...
-
Page 8: Configuration Options
Configuration Options The FortiWiFi unit requires some basic configuration to add it to your network. These basic steps include assigning IP addresses, DNS settings, and the default gateway. Until these steps are completed traffic will not flow through the device. You can complete these basic steps using FortiExplorer’s built-in Setup Wizard. - Page 9 To connect to the Web-based Manager: 1. Connect a FortiWiFi unit Ethernet port to a management computer using the provided Ethernet cable. 2. Configure the management computer to be on the same subnet as the internal interface of the FortiWiFi unit: Browse to the Network and Sharing Center >...
- Page 10 To reset the unit to factory default settings from the CLI To reset the FortiWiFi 20C-ADSL-A to the factory default settings from the CLI, enter the following command: execute factoryreset To shutdown the unit When powering off the FortiWiFi unit, always shutdown the unit using the following procedures before disconnecting the power supply.
-
Page 11: Technical Specifications
Technical Specifications ADSL USB Port Ethernet Ports ADSL Port DC Power Reset Kensington Management Port Jack Button Security Slot Interface Type Protocol Description Ethernet RJ-45 Gigabit FortiASIC-accelerated Ports 1 - 4 Ethernet switched Ethernet ports for connection to your network and the Internet. -
Page 12: Led Specifications
LED Specifications ADSL FortiWiFi 20C-ADSL Power Status WiFi ADSL Ethernet Ports State Description Green The unit is on. POWER The unit is off. Green The unit is operating normally. Flashing Green 1Hz (1 times per second): The unit is booting up. STATUS 5Hz (5 times per second): Reset signal is received by kernel. -
Page 13: Documentation And Links
The following Fortinet web pages provide information and resources for your Fortinet product: 1. Customer Service & Support: https://support.fortinet.com On this page you can create a support account with Fortinet, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. -
Page 14: Cautions And Warnings
Cautions and Warnings Please review the following cautions and warnings. Environmental and mounting specifications Operating temperature: 0 - 40°C (32 - 104°F) Storage temperature: -25 - 70°C (-13 - 158°F) Humidity: 20 to 90% non-condensing Operating Altitude: <2250m (7400ft) Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. - Page 15 Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 16 Grounding Ensure your Fortinet product is connected and properly grounded to a lightning and surge protector. WAN or LAN connections that enter the premises from outside the building should be connected to an Ethernet CAT5 (10/100 Mb/s) surge protector. Shielded Twisted Pair (STP) Ethernet cables should be used whenever possible rather than Unshielded Twisted Pair (UTP).
-
Page 17: Register Your Product
Register Your Product If you did not register your Fortinet product using the FortiExplorer wizard, please register your product now. Register Register your Fortinet product in order to receive: • Technical Support • New product features • Protection from new... -
Page 18: Product License Agreement
3. Proprietary Rights. All rights, title, interest, and all copyrights to the Software and any copy made thereof by you and to any Product remain with Fortinet. You acknowledge that no title to the intellectual property in the Software or other Products is transferred to you and you will not acquire any rights to the Software or other Products except for the specific license as expressly set forth in section 1 (“License Grant”) above. - Page 19 Section 1 above, for any amendment or other agreement to be binding on Fortinet, such amendment or other agree- ment must be signed by Fortinet’s General Counsel. No waiver will be implied from conduct or failure to enforce rights nor effective unless in a writing signed on behalf of the party against whom the waiver is asserted.
- Page 20 To obtain a complete machine-readable copy, please send your written request, along with a check in the amount of US $25.00, to General Public License Source Code Request, Fortinet, Inc., 1090 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modified software modules, you must also include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e) Product purchased (if applicable), (f) Product Serial Number (if applicable).
- Page 21 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all.
- Page 22 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library”...
