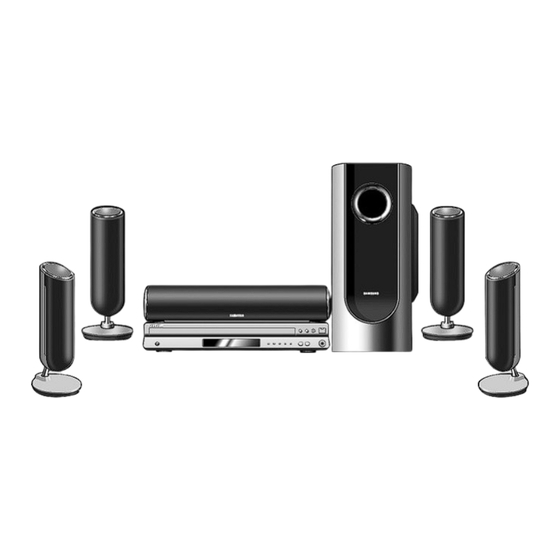

Home Theater System
with 5 DVD Changer
and HDMI
HT-P50
Instruction Manual
COMPACT
DIGITAL AUDIO
Advertisement
Table of Contents
Related Manuals for Samsung HT-P50
Summary of Contents for Samsung HT-P50
- Page 1 SAMSUNG ELECTRONICS CANADA, INC. HEADQUARTERS 7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3 TEL: 1-905-542-3535 www.samsung.ca SERVICE DIVISION 7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3 1-800-SAMSUNG (1-800-726-7864) Home Theater System with 5 DVD Changer and HDMI HT-P50 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings Note to CATV system installer : CLASS 1 LASER PRODUCT This reminder is provided to call the CATV system KLASSE 1 LASER PRODUKT installer’s attention to Section 820~40 of the NEC LUOKAN 1 LASER LAITE which provides guidelines for proper grounding and, KLASS 1 LASER APPARAT in particular, specifies that the cable ground shall be PRODUCTO LASER CLASE 1... -
Page 3: Table Of Contents
The HT-P50 automatically shuts itself off after 20 minutes in the stop mode. Customized TV Screen Display The HT-P50 allows you to select your favorite image during JPEG, DVD or VCD playback and set it as your background wallpaper. Samsung AV Device Operation using Anynet Using Anynet you can conveniently operate your Samsung DVD and AV devices with your Samsung TV remote control. -
Page 4: Notes On Discs
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your Home Theater directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. -
Page 5: Description
Description Power ( ) button Standby indicator Tuning Up & Skip ( Tuning Down & Skip ( Disc Tray Function button Stop ( Play/Pause ( GROUP indicator DOLBY DIGITAL indicator CHAPTER indicator P.SCAN indicator TRACK indicator PROGRAM indicator DTS Disc indicator INDEX indicator TITLE indicator REPEAT indicators... -
Page 6: Remote Control
Description —Remote Control— TV indicator TV, DVD POWER button MODE button DISC SKIP button Number(0~9) buttons REMAIN button PL II MODE button VOLUME button MENU button SUB TITLE button RETURN button REPEAT button STEP button ZOOM button LOGO COPY button SLEEP button SLOW, MO/ST button HDMI AUDIO button... -
Page 7: Connecting The Speakers
Back of the Main Unit Insert the black wire into Connect the connecting plugs to the black terminal (–) and the back of the Home Theater. the gray wire into the gray • Make sure the colors of the speaker terminals (+) terminal, and then match the colors of the connecting plugs. -
Page 8: Installing Speakers
- Connect the HDMI out to the HDMI input on your TV. • When the Progressive scan mode is selected, the VIDEO and S-VIDEO outputs do not feed any Note signal. HT-P50 Green Blue METHOD 3 METHOD 4 METHOD 2... -
Page 9: Hdmi Function
• You do not have to make separate adjustments, since the Home Theater and TV will be automatically adjust themselves to the optimal resolution and aspect ratio if connected to HDMI. (If the TV is an HDTV and has an HDMI Input jack, output is automatically converted to 1080i resolution (if supported by the TV).) -
Page 10: How To Connect To Anynet
Samsung Anynet-enabled TV. What is Anynet? • The Anynet function allows you to use your Samsung TV's remote control and menu to control all AV devices. • However, this function is available only with Samsung Anynet-enabled models. -
Page 11: Connecting External Components
Connect Video Out on the Home Theater to Video In on the TV. Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component. Connect Audio In on the Home Theater to Audio Out on the external analog component. •... -
Page 12: Before Using Your Home Theater
Before Using Your Home Theater Your Home Theater is capable of playing DVD, CD, MP3, DivX and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using. Plug the main unit's... -
Page 13: Disc Playback
Disc Playback Press OPEN/CLOSE button to open the disc tray. Load a disc. • Place a disc gently into the tray with the disc’s label facing up. Press DISC SKIP button. • Rotate the carousel tray so you can load the third, fourth, and fifth discs. -
Page 14: Mp3-Cd Playback
MP3-CD Playback Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played. Press the OPEN/CLOSE button to open the disc tray, and then load the MP3 disc. • The MP3 menu screen will appear and playback will start. •... -
Page 15: Jpeg File Playback
JPEG File Playback Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater. Slide Mode Place the JPEG disc on the disc tray. -
Page 16: Divx Playback
DivX Playback Skip Forward/Back During playback, press the button. • Go to the next file whenever you press button, if there are over 2 files in the disk. • Go to the previous file whenever you press button, if there are over 2 files in the disk. -
Page 17: Playing Media Files Using The Usb Host Feature
Playing Media Files using the USB HOST feature You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function. Press the FUNCTION button on the main... -
Page 18: Checking The Remaining Time
Checking the Remaining Time Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played. Each time the REMAIN button is pressed DVD- DVD- VIDEO AUDIO TITLE ELAPSED GROUP ELAPSED TITLE REMAIN GROUP REMAIN CHAPTER ELAPSED TRACK ELAPSED... -
Page 19: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: DVD- DVD- VIDEO AUDIO JPEG... -
Page 20: Step Function
Step Function Press STEP button. • The picture moves forward one frame each time the button is pressed during playback. • During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, Note and not at 4x, 8x, and 32x speeds. •... -
Page 21: Bonus Group / Navigating Pages
Bonus Group / Navigating Pages Bonus Group DVD- AUDIO Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number. When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. -
Page 22: Moving Directly To A Scene/Song
Moving Directly to a Scene/Song Moving to a Title/Track Press Cursor , buttons or numeric buttons to select Press INFO button. the desired title/track and then press ENTER button. 01/05 001/040 0:00:37 03/05 001/002 0:00:01 Moving to a Chapter Moving to a Specific Time Press Cursor Press Cursor , buttons or numeric buttons... -
Page 23: Setting The Language
Setting the Language OSD (On-Screen Display) language is set to English by default. In Stop mode, press MENU button. Note • To select another language, select OTHER and enter the language code of your country. (See page 72 for language codes) AUDIO, SUB TITLE and DISC MENU language can be selected. -
Page 24: Setting Tv Screen Type
Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press MENU button. Press Cursor button to move to ‘TV DISPLAY’ and then press ENTER button. Press RETURN button to return to the previous level. -
Page 25: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press MENU button. Press Cursor Press Cursor , button button to move to to select the desired rating ‘PARENTAL’... -
Page 26: Setting The Wallpaper
You can select up to 3 wallpaper settings. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. JPEG To select one of the 3 wallpaper settings you've made... -
Page 27: Dvd Audio Disc Playback Mode
DVD Audio Disc Playback Mode Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. Press the MENU button while the disc tray is open. Press Cursor button to move to ‘DVD TYPE’... -
Page 28: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press MENU button. Setting up the Speaker Delay Time When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. -
Page 29: Setting The Test Tone
Setting the Test Tone Use the Test Tone feature to check the speaker connections. In Stop or no Press Cursor button to move to disc mode, ‘Audio’ and then press MENU press ENTER button. button. Press RETURN button to return to the previous level. -
Page 30: Setting The Audio
Setting the Audio You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen Method 1 In Stop mode, press MENU button. Press Cursor button to move to ‘SOUND EDIT’ and then press ENTER button. -
Page 31: Av Sync Setup
AV SYNC Setup Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. Press Cursor Press the MENU button. to move to ‘Audio’ and then press ENTER button. -
Page 32: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. Press PL II MODE button. • Each time the button is pressed, the mode changes as follows. Note • When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. -
Page 33: Listening To Radio
Listening to Radio You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual tuning operation. Remote Control Unit Tune in to the Press TUNER desired station. button. • Automatic Tuning 1 When is pressed, a The selection toggles back and preset broadcast station is... -
Page 34: Convenient Functions
Convenient Functions Sleep Timer Function You can set the time that the Home Theater will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed the preset time changes as follows: 10 TITLE CHAP PRGM RDS RT To confirm the sleep timer setting, press SLEEP button. -
Page 35: Operating A Tv With The Remote Control
TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. TV Brand Code List Brand... -
Page 36: Before Calling For Service
SR to SMALL. Picture does not appear, sound • Was the Home Theater suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the is not produced, or the disc tray disc and let the player stand for 1 or 2 hours with the power on. -
Page 37: Cautions On Handling And Storing Discs
Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. -
Page 38: Specifications
Weights 2.20 lbs Center Samsung Electronics Canada Inc. (SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material SECA will repair or replace the product at its option.
