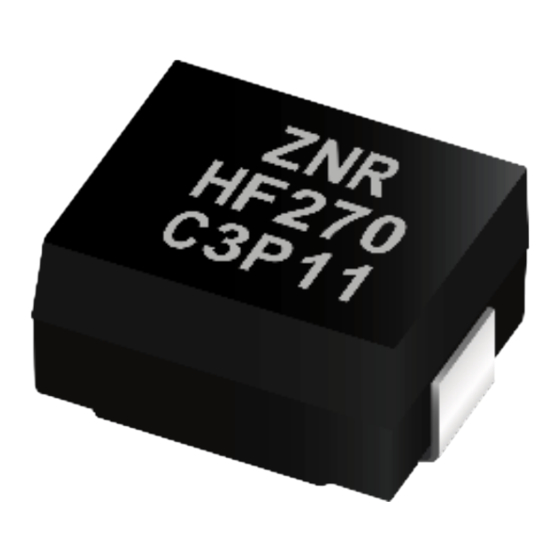

Varistors (ZNR Surge Absorber)
G type
HF series
Features
● Meet for load dump surge test (JASO D 001-94) [Vp=70 V，τ=200 ms，Ri=0.8 Ω]
● Meet for load dump surge test ISO7637-2 and ISO16750-2
● Suitable for requirements of automotive
● Compact size SMD
● Meet flow/reflow/iron soldering
● Strong against "Soldering heat shock" due to molded construction
● AEC-Q200 compliant
● RoHS compliant
Recommended applications
● Protection of body & accessory ECU about DC12 V automotive against load dump surge
■ As for handling precautions and minimum quantity / Packing unit please see related information.
Explanation of part numbers
T ERJS02 ～ ERJS1Tシリーズ
1
2
3
E
R
Z
Product code
Construction
①
③
Dimensions in mm (not to scale)
S
S
L
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
4
5
6
H
F
2
Construction
Series
Embossed taping
②
① Multilayer varistor
② Mold resin
③ Lead terminal
E
W
7
8
9
M
2
2
Nominal
Varistor voltage
ERZHF2M220F
ERZHF2M220D / ERZHF2M270
Part No.
W
ERZHF2M220F
ERZHF2M220D
6.4±0.4
ERZHF2M270
10
11
12
0
F
Design No.
ZnO, others
Epoxy (UL94 V-0 approved)
: Sn plated Cu alloy
: Sn plated Ni-Fe alloy
Dimensions
L
H
5.5±0.5
8.0±0.5
1.3±0.3
4.5±0.5
Unit : mm
S
E
2.5±0.2
20-Jan-23
Advertisement
Related Manuals for Panasonic HF Series
Summary of Contents for Panasonic HF Series
- Page 1 Varistors (ZNR Surge Absorber) G type HF series Features ● Meet for load dump surge test (JASO D 001-94) [Vp=70 V，τ=200 ms，Ri=0.8 Ω] ● Meet for load dump surge test ISO7637-2 and ISO16750-2 ● Suitable for requirements of automotive ● Compact size SMD ●...
-
Page 2: Ratings And Characteristics
SMD type / HF series Ratings and characteristics ● Operating temperature range : ERZHF2M220F -55 to 150 ℃, ERZHF2M220D/ERZHF2M270 -40 to 125 ℃ ● Storage temperature range : ERZHF2M220F -55 to 150 ℃, ERZHF2M220D/ERZHF2M270 -40 to 125 ℃ Varistor Maximum... -
Page 3: Performance Characteristics
SMD type / HF series Performance characteristics Characteristics Test methods Specifications Environmental conditions under which every measuring is done without doubt on the Standard test condition measuring results. Unless specially, specified, temperature, relative humidity are 5 ° C to 35 °C, 45 to 85% RH respectively. - Page 4 ■ The technical information contained in this catalog is intended to show only typical operation and application circuit examples of this product. This catalog does not guarantee that such information does not infringe upon the intellectual property rights of Panasonic or any third party, nor imply that the license of such rights has been granted.
- Page 5 Matters to Be Observed When Using This Product Matters to Be Observed When Using This Product (D-type : V series / SMD-type : HF・VF series) Safety measures An abnormal state for varistors (ZNR surge absorbers) of the D type/V series and SMD-Type/HF, VF Series (hereinafter the product or "the surge absorber") that results from a problem with service conditions (materials used, the surrounding environment, power conditions, circuit conditions, etc.) may cause a fire accident, electric shock accident, burn accident, or product failure.
- Page 6 Matters to Be Observed When Using This Product Use environments and cleaning conditions ■ Do not use the surge absorber in an outdoor environment where the surge absorber is exposed to sunlight. ■ Do not use the surge absorber in which direct sunlight hits the surge absorber or near a heating element where the temperature of the surge absorber would rise above its working temperature.
- Page 7 * Use the rated voltage of the current fuse that corresponds to the circuit voltage of a circuit including the current fuse. * For the HF series surge absorber, select the rated current of the fuse after confirming the way the fuse handles a load dump surge and the protective coordination action it makes when the surge absorber is destroyed.
- Page 8 Matters to Be Observed When Using This Product Table 1 Application example of the product (ordinary application example) Surge absorber placed between lines Surge absorber placed between a line and the ground Single-phase AC Single-phase AC Current fuse ZNR1 ZNR1 Current fuse Protected device...
- Page 9 Matters to Be Observed When Using This Product Mounting and storage conditions ■ When soldering the surge absorber, follow recommended soldering conditions shown in the following table so that solder or the insulation material making up the surge absorber is not melted. ■...
