Lenovo 30A0 Hardware Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

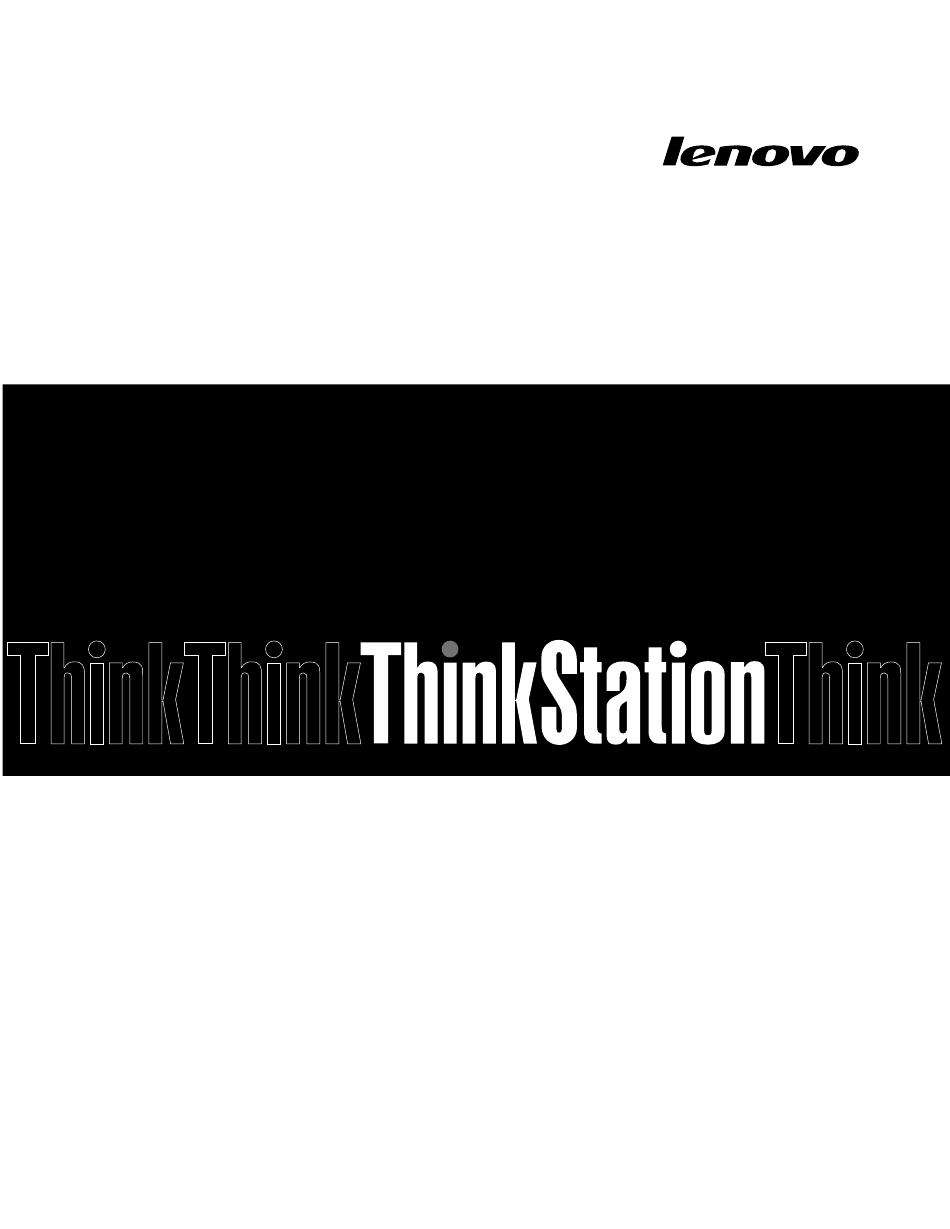

ThinkStation E32
Hardware Maintenance Manual
Machine Types: 30A0, 30A1, 30A2, and 30A3

Advertisement

Table of Contents
loading

Related Manuals for Lenovo 30A0

Summary of Contents for Lenovo 30A0

  • Page 1 ThinkStation E32 Hardware Maintenance Manual Machine Types: 30A0, 30A1, 30A2, and 30A3...
  • Page 2 “Safety information” on page 3 and Appendix B “Notices” on page 225. Third Edition (June 2014) © Copyright Lenovo 2013, 2014. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software are delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.

  • Page 3: Table Of Contents

    ..Enabling ErP LPS compliance mode ..Lenovo Support Web site ..ICE performance mode ...
  • Page 4 Chapter 10. Replacing FRUs (machine Replacing the hard disk drive ..types: 30A0 and 30A1) ..85 Installing or replacing the secondary hard disk Handling static-sensitive devices ..
  • Page 5 Appendix A. System memory Index....speed ....© Copyright Lenovo 2013, 2014...
  • Page 6 ThinkStation E32 Hardware Maintenance Manual...

  • Page 7: Chapter 1. About This Manual

    This manual is intended only for trained service personnel who are familiar with Lenovo computer products. Before servicing a Lenovo computer product, be sure to read “Important safety information” on page 1. Chapter 8 “Symptom-to-FRU Index” on page 63 and Chapter 12 “Additional service information” on page 219 are not specific to any machine type and are applicable to all ThinkStation computers.
  • Page 8 ThinkStation E32 Hardware Maintenance Manual...

  • Page 9: Chapter 2. Safety Information

    Electrical current from power, telephone, and communication cables can be hazardous. To avoid personal injury or equipment damage, disconnect the attached power cords, telecommunication systems, networks, and modems before you open the computer covers, unless instructed otherwise in the installation and configuration procedures. © Copyright Lenovo 2013, 2014...
  • Page 10 Observe the following rules when working on electrical equipment. Important: Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges.

  • Page 11: Safety Inspection Guide

    – Send another person to get medical aid. Safety inspection guide The intent of this inspection guide is to assist you in identifying potentially unsafe conditions on these products. Each machine, as it was designed and built, had required safety items installed to protect users and service personnel from injury.

  • Page 12: Grounding Requirements

    • Avoid contact with other people while handling the part. • Wear a grounded wrist strap against your skin to eliminate static on your body. • Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.
  • Page 13 • Connect all power cords to a properly wired and grounded electrical outlet. • Connect to properly wired outlets any equipment that will be attached to this product. • When possible, use one hand only to connect or disconnect signal cables. •...
  • Page 14 ≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs) CAUTION: Use safe practices when lifting. CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord.
  • Page 15 Chapter 2 Safety information...
  • Page 16 ≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs) PERIGO A corrente elétrica proveniente de cabos de alimentação, de telefone e de comunicações é perigosa. ThinkStation E32 Hardware Maintenance Manual...
  • Page 17 Para evitar risco de choque elétrico: • Não conecte nem desconecte nenhum cabo ou execute instalação, manutenção ou reconfiguração deste produto durante uma tempestade com raios. • Conecte todos os cabos de alimentação a tomadas elétricas corretamente instaladas e aterradas. •...
  • Page 18 • A utilização de controles ou ajustes ou a execução de procedimentos diferentes dos especificados aqui pode resultar em exposição prejudicial à radiação. PERIGO Alguns produtos a laser contêm diodo de laser integrado da Classe 3A ou da Classe 3B. Observe o seguinte: Radiação a laser quando aberto.
  • Page 19 Chapter 2 Safety information...
  • Page 20 ThinkStation E32 Hardware Maintenance Manual...
  • Page 21 Chapter 2 Safety information...
  • Page 22 DANGER Le courant électrique provenant de l'alimentation, du téléphone et des câbles de transmission peut présenter un danger. Pour éviter tout risque de choc électrique : • Ne manipulez aucun câble et n'effectuez aucune opération d'installation, d'entretien ou de reconfiguration de ce produit au cours d'un orage.
  • Page 23 ATTENTION: Si des produits à laser (tels que des unités de CD-ROM, de DVD-ROM, des unités à fibres optiques, ou des émetteurs) sont installés, prenez connaissance des informations suivantes : • Ne retirez pas le carter. En ouvrant l'unité de CD-ROM ou de DVD-ROM, vous vous exposez au rayonnement dangereux du laser.
  • Page 24 VORSICHT An Netz-, Telefon- und Datenleitungen können gefährliche Spannungen anliegen. Aus Sicherheitsgründen: • Bei Gewitter an diesem Gerät keine Kabel anschließen oder lösen. Ferner keine Installations-, Wartungs- oder Rekonfigurationsarbeiten durchführen. • Gerät nur an eine Schutzkontaktsteckdose mit ordnungsgemäß geerdetem Schutzkontakt anschließen.
  • Page 25 • über 100 C erhitzen. • reparieren oder zerlegen. Die örtlichen Bestimmungen für die Entsorgung von Sondermüll beachten. ACHTUNG: Bei der Installation von Lasergeräten (wie CD-ROM-Laufwerken, DVD- aufwerken, Einheiten mit Lichtwellenleitertechnik oder Sendern) Folgendes beachten: • Die Abdeckungen nicht entfernen. Durch Entfernen der Abdeckungen des Lasergeräts können gefährliche Laserstrahlungen freigesetzt werden.
  • Page 26 ThinkStation E32 Hardware Maintenance Manual...
  • Page 27 Chapter 2 Safety information...
  • Page 28 PERICOLO La corrente elettrica proveniente dai cavi di alimentazione, del telefono e di comunicazione può essere pericolosa. Per evitare il rischio di scosse elettriche: • Non collegare o scollegare qualsiasi cavo oppure effettuare l'installazione, la manutenzione o la riconfigurazione del prodotto durante un temporale. •...
  • Page 29 ATTENZIONE: Quando vengono installati prodotti laser (quali CD-ROM, unità DVD-ROM, unità a fibre ottiche o trasmittenti), tener presente quanto segue: • Non rimuovere gli sportelli. L'apertura di un'unità laser può determinare l'esposizione a radiazioni laser pericolose. All'interno dell'unità non vi sono parti su cui effettuare l'assistenza tecnica. •...
  • Page 30 ThinkStation E32 Hardware Maintenance Manual...
  • Page 31 PELIGRO La corriente eléctrica procedente de cables de alimentación, teléfonos y cables de comunicación puede ser peligrosa. Para evitar el riesgo de descarga eléctrica: • No conecte ni desconecte los cables ni realice ninguna tarea de instalación, mantenimiento o reconfiguración de este producto durante una tormenta eléctrica. •...
  • Page 32 • No encienda nunca un equipo cuando hay señales de fuego, agua o daños estructurales. • Desconecte los cables de alimentación, los sistemas de telecomunicaciones, las redes y los módems conectados antes de abrir las cubiertas de los dispositivos, a menos que se indique lo contrario en los procedimientos de instalación y configuración.
  • Page 33 Algunos productos láser tienen incorporado un diodo láser de clase 3A o clase 3B. Tenga en cuenta lo siguiente: Cuando se abre, queda expuesto a radiación láser. No mire directamente al rayo láser, ni siquiera con instrumentos ópticos, y evite exponerse directamente al rayo láser. ≥18 kg ≥32 kg ≥55 kg...
  • Page 34 ThinkStation E32 Hardware Maintenance Manual...

  • Page 35: Chapter 3. General Information

    This chapter provides general information that applies to all machine types supported by this publication. Specifications This section lists the physical specifications for your computer. For machine types: 30A0 and 30A1 Dimensions Width: 175 mm (6.89 inches) Height: 425 mm (16.73 inches) Depth: 431 mm (16.97 inches)

  • Page 36: For Machine Types: 30A2 And 30A3

    Control Panel. The icon name displayed in the search result or Control Panel might be different from the program name. You can find the program by its program name or icon name as shown in the Lenovo programs available on the Windows 7 operating system table.

  • Page 37: Accessing Lenovo Programs On The Windows 8 Or Windows 8.1 Operating System

    • On the Windows 8.1 operating system, press the Windows key to go to the Start screen. Click a Lenovo program to launch it. If you cannot find the program you need, click the arrow icon in the bottom-left corner of the screen to go to the Apps screen. Find the desired program in the apps list or search for it in the search box in the top-right corner of the screen.

  • Page 38: Lenovo Support Web Site

    Lenovo Support Web site Technical support information is available on the Lenovo Support Web site at: http://www.lenovo.com/support This Web site is updated with the latest support information such as the following: • Drivers and software • Diagnostic solutions • Product and service warranty •...

  • Page 39: Chapter 4. General Checkout

    Service Support and Engineering functions. • Machine type and model • Processor or hard disk drive upgrades • Failure symptom – Do diagnostics indicate a failure? – What, when, where, single, or multiple systems? – Is the failure repeatable? © Copyright Lenovo 2013, 2014...
  • Page 40 – Has this configuration ever worked? – If it has been working, what changes were made prior to it failing? – Is this the original reported failure? • Diagnostics version – Type and version level • Hardware configuration – Print (print screen) configuration currently in use –...

  • Page 41: Chapter 5. Troubleshooting And Diagnostics

    Chapter 5. Troubleshooting and diagnostics This chapter provides information about diagnosing and troubleshooting computer problems. If your computer problem is not described here, see “Lenovo Support Web site” on page 32 for additional troubleshooting resources. Basic troubleshooting The following table provides information to help you troubleshoot your computer problems.

  • Page 42: Accessing Control Panel On The Windows 8 Or Windows 8.1 Operating System

    Symptom Action The operating system does not Verify that: start. • The startup sequence includes the device where the operating system resides. Usually, the operating system is on the hard disk drive. For more information, see “Selecting a startup device” on page 57. The computer beeps multiple Verify that no keys are stuck.

  • Page 43: Troubleshooting

    • If the diagnostic program detects a hardware failure, contact the Lenovo Customer Support Center. See “Lenovo Support Web site” on page 32 for more information. • If you are unable to run the diagnostic program, contact the Lenovo Customer Support Center. See “Lenovo Support Web site” on page 32 for more information.
  • Page 44 • Verify that the audio device drivers are correctly installed. See Microsoft Windows help system for more information. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 45: Cd Problems

    Refer to the documentation that comes with the application or game for instructions on setting sound-card settings. • If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 46: Dvd Problems

    Note that on some models the startup sequence is permanently set and cannot be changed. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 47: Intermittent Problems

    • Use the DVD menu for the video to select a different audio track. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 48: Keyboard, Mouse, Or Pointing Device Problems

    Note: In rare cases, the hard disk drive with the operating system might get corrupted or damaged. In such cases, you might need to replace the hard disk drive. For computer models 30A0 and 30A1, refer to “Replacing the primary hard disk drive” on page 123. For computer models 30A2 and 30A3, refer to “Replacing the hard disk drive”...
  • Page 49 • If you are using a USB keyboard or mouse, verify that the USB connectors are enabled in the BIOS settings. See “Enabling or disabling a device” on page 57. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 50: Monitor Problems

    b. If there is debris in the lens, gently blow the debris away from the area. 4. Check the surface on which you are using the mouse. If you have a very intricate picture or pattern beneath the mouse, it may be difficult for the digital signal processor (DSP) to determine changes in the mouse position.
  • Page 51 If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 52: Networking Problems

    • See your operating system documentation or help for further information on monitor settings. If these actions do not correct the problem, your monitor might need service. See “Lenovo Support Web site” on page 32 for details.
  • Page 53 The network cable must be securely connected to both the Ethernet connector of your computer and the RJ45 connector of the hub. The maximum allowable distance from the computer to hub is 100 meters. If the cable is connected and the distance is within acceptable limits but the problem persists, try a different cable.
  • Page 54 Actions: • Use Category 5 wiring and ensure that the network cable is securely connected. • Connect to a 1000 BASE-T hub/switch (not 1000 BASE-X). If your computer is a Gigabit Ethernet model, it cannot connect to the network at 1000 Mbps. Instead, it connects at 100 Mbps Symptom: If your computer is a Gigabit Ethernet model, it cannot connect to the network at 1000 Mbps.

  • Page 55: Option Problems

    See the documentation supplied with the adapter (as well as the documentation for any other installed adapters) to determine the resources required for each adapter. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.
  • Page 56 Insufficient free hard disk drive space Symptom: Insufficient free hard disk drive space The Windows operating system will slow down and might produce errors if the hard disk drive gets too full. To check the amount of free space on the Windows 7 operating system, do the following: 1.

  • Page 57: Printer Problems

    32. For step-by-step instructions on installing memory, see “Installing or replacing a memory module” on page 91. If these actions do not correct the problem, run the diagnostic programs (see “Lenovo Solution Center” on page 54 for instructions). If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 58: Serial Port Problems

    • Ensure that the serial-port adapter, if you added one, is properly installed and firmly seated. If these actions do not correct the problem, run the Lenovo Solution Center program. If you need technical assistance, see “Lenovo Support Web site” on page 32.

  • Page 59: Usb Problems

    • Reset the device by detaching and reattaching the USB connector. If these actions do not correct the problem, run the Lenovo Solution Center program to test the USB connector. If the USB device came with its own diagnostics, run those diagnostics against the USB device.

  • Page 60: Lenovo Solution Center

    Note: If you are unable to isolate and repair the problem yourself after running the program, save and print the log files. You will need the log files when you speak to a Lenovo technical support representative. UEFI diagnostic program A UEFI diagnostic program is preinstalled on the computer.

  • Page 61: Chapter 6. Using The Setup Utility Program

    Using passwords By using the Setup Utility program, you can set passwords to prevent unauthorized access to your computer and data. The following types of passwords are available: • Power-On Password © Copyright Lenovo 2013, 2014...

  • Page 62: Password Considerations

    • Administrator Password • Hard Disk Password You do not have to set any passwords to use your computer. However, using passwords improves computing security. If you decide to set any passwords, read the following sections. Password considerations A password can be any combination of up to 64 alphabetic and numeric characters. For security reasons, it is recommended to use a strong password that cannot be easily compromised.

  • Page 63: Enabling Or Disabling A Device

    To erase a lost or forgotten password, do the following: 1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2.

  • Page 64: Selecting Or Changing The Startup Device Sequence

    60. Enabling ErP LPS compliance mode Lenovo computers meet the eco-design requirements of the ErP Lot 3 regulation. For more information, go http://www.lenovo.com/ecodeclaration You can enable the energy-related products directive (ErP) lowest power state (LPS) compliance mode in the Setup Utility program to reduce the consumption of electricity when your computer is in sleep or off mode.

  • Page 65: Ice Performance Mode

    2. From the Setup Utility program main menu, select Power ➙ After Power Loss, and press Enter. 3. Select Power On and press Enter. 4. Press F10 to save changes and exit the Setup Utility program. Press Enter when prompted to confirm the exit.

  • Page 66: Changing The Bios Settings Before Installing A New Operating System

    Changing the BIOS settings before installing a new operating system BIOS settings vary by operating system. Change the BIOS settings before installing a new operating system. To change the BIOS settings, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 55. 2.

  • Page 67: Chapter 7. Configuring Raid

    5. If appropriate, use the arrow keys to select a Stripe Size in the Stripe Size field and press Tab. 6. Type a volume size in the Capacity field and press Tab. 7. Press Enter to initiate volume creation. © Copyright Lenovo 2013, 2014...

  • Page 68: Deleting Raid Volumes

    8. When prompted, press Y to accept the warning message and create the volume. 9. Return to step 2 to create additional RAID volumes, or select Exit and press Enter. 10. Press Y when prompted to confirm the exit. Deleting RAID volumes This section describes how to use the Intel Matrix Storage Manager option ROM configuration utility to delete RAID volumes.

  • Page 69: Chapter 8. Symptom-To-Fru Index

    Check the power cord for continuity. Power cord Check the power-on switch for continuity. Power-on switch Beep symptoms Beep symptoms are tones or a series of tones separated by pauses (intervals without sound) during POST. © Copyright Lenovo 2013, 2014...

  • Page 70: Post Error Codes

    The following table describes the beep symptoms. Beep symptom FRU/Action Perform the following actions in order. 2 short beeps CMOS setting error 1. Start the Setup Utility program and press F10 to Save and exit. See Chapter 6 “Using the Setup Utility program”...
  • Page 71 POST Error code POST Error message Description/Action 1762 This error message is displayed when a hard disk SATA device configuration change has occurred drive or optical drive change has been made. Press F1 to enter the Setup Utility program. Then press F10 to save and exit the Setup Utility program.

  • Page 72: Miscellaneous Error Conditions

    Miscellaneous error conditions Message/Symptom FRU/Action Changing display colors Display/Monitor Computer will not power-off. See “Hard disk drive boot 1. Power Switch error” on page 63. 2. System Board 3. Riser card, if installed. Computer will not RPL from server 1. Ensure that network is in startup sequence as first device or first device after diskette.

  • Page 73: Undetermined Problems

    Message/Symptom FRU/Action Non-system disk or disk error-type message with a 1. Diskette Drive known-good diagnostic diskette. 2. System Board 3. Diskette Drive Cable 1. Display Other display symptoms not listed above (including blank or illegible display) 2. System Board Power-on indicator or hard disk drive in-use light not on, 1.
  • Page 74 d. Extended video memory e. External Cache f. External Cache RAM g. Hard disk drive h. Diskette drive 3. Power-on the computer to re-test the system. 4. Repeat steps 1 through 3 until you find the failing device or adapter. If all devices and adapters have been removed, and the problem continues, replace the system board.

  • Page 75: Chapter 9. Locations

    Chapter 9. Locations This chapter introduces the locations of the computer hardware components. For machine types: 30A0 and 30A1 This section describes the locations for computer types 30A0 and 30A1. Locating connectors, controls, and indicators on the front of your computer Figure 1 “Front connector, control, and indicator locations”...

  • Page 76: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer Figure 2 “Rear connector locations” on page 70 shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer.

  • Page 77: Locating Major Frus And Crus

    Connector Description DisplayPort connector Used to attach a high-performance monitor, a direct-drive monitor, or other devices that use a DisplayPort connector. Note: The DisplayPort connector is not applicable on some models. If your computer has a graphics card installed, be sure to use a monitor connector on the graphics card.
  • Page 78 Figure 3. Locating major FRUs and CRUs The following table lists the major FRUs shown in Figure 3 “Locating major FRUs and CRUs” on page 72 and identifies which FRUs also are self-service CRUs or optional-service CRUs. Notes: • Self-service CRUs: These CRUs unplug or are secured by no more than two screws. Examples of these types of CRUs include the keyboard, the mouse, any USB device, and the power cord.

  • Page 79: Looking Up Fru Information

    Rear Wi-Fi antenna (available in some models) Cover presence switch (also called intrusion switch) Rear fan assembly Keyboard Mouse Looking up FRU information For detailed FRU information, such as the FRU part numbers and supported computer models, go to: http:/www.lenovo.com/serviceparts-lookup Chapter 9 Locations...

  • Page 80: Locating Parts On The System Board

    Locating parts on the system board Figure 4 “System board part locations” on page 74 shows the locations of the parts on the system board. Figure 4. System board part locations ThinkStation E32 Hardware Maintenance Manual...
  • Page 81 PS/2 keyboard and mouse connector 4-pin power connector Battery Microprocessor Microprocessor fan connector Memory slot 1 (DIMM1) Memory slot 2 (DIMM2) Memory slot 3 (DIMM3) Memory slot 4 (DIMM4) Thermal sensor connector Hard disk drive fan connector 4-pin power connectors (2) 14-pin power connector eSATA connector SATA connectors 1 to 4 (SATA 3.0 connector)

  • Page 82: Locating Internal Drives

    Locating internal drives Internal drives are devices that your computer uses to read and store data. You can add drives to your computer to increase storage capacity and enable your computer to read other types of media. Internal drives are installed in bays. When installing or replacing an internal drive, it is important to note the type and size of the drive that you can install or replace in each bay and correctly connect the cables to the drive installed.

  • Page 83: Locating Connectors, Controls, And Indicators On The Front Of Your Computer

    Locating connectors, controls, and indicators on the front of your computer Figure 6 “Front connector, control, and indicator locations” on page 77 shows the locations of the connectors, controls, and indicators on the front of your computer. Figure 6. Front connector, control, and indicator locations Optical drive eject/close button Power switch Hard disk drive activity indicator...

  • Page 84: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer Figure 7 “Rear connector locations” on page 78 shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer.

  • Page 85: Locating Major Frus And Crus

    Connector Description DisplayPort connector Used to attach a high-performance monitor, a direct-drive monitor, or other devices that use a DisplayPort connector. Note: The DisplayPort connector is not applicable on some models. If your computer has a graphics card installed, be sure to use a monitor connector on the graphics card.
  • Page 86 Figure 8. Locating major FRUs and CRUs The following table lists the major FRUs shown in Figure 8 “Locating major FRUs and CRUs” on page 80 and identifies which FRUs also are self-service CRUs or optional-service CRUs. Notes: • Self-service CRUs: These CRUs unplug or are secured by no more than two screws. Examples of these types of CRUs include the keyboard, the mouse, any USB device, and the power cord.

  • Page 87: Looking Up Fru Information

    Rear Wi-Fi antenna (available in some models) PCI card (available in some models) System board Battery Microprocessor Keyboard Mouse Looking up FRU information For detailed FRU information, such as the FRU part numbers and supported computer models, go to: http:/www.lenovo.com/serviceparts-lookup Chapter 9 Locations...

  • Page 88: Locating Parts On The System Board

    Locating parts on the system board Figure 9 “System board part locations” on page 82 shows the locations of the parts on the system board. Figure 9. System board part locations ThinkStation E32 Hardware Maintenance Manual...
  • Page 89 PS/2 keyboard and mouse connector 4-pin power connector Battery Microprocessor Microprocessor fan connector Memory slot 1 (DIMM1) Memory slot 2 (DIMM2) Memory slot 3 (DIMM3) Memory slot 4 (DIMM4) Thermal sensor connector Hard disk drive fan connector 4-pin power connectors (2) 14-pin power connector eSATA connector SATA connectors 1 to 4 (SATA 3.0 connector)

  • Page 90: Locating Internal Drives

    Locating internal drives Internal drives are devices that your computer uses to read and store data. You can add drives to your computer to increase storage capacity and enable your computer to read other types of media. Internal drives are installed in bays. When installing or replacing an internal drive, it is important to note the type and size of the drive that you can install or replace in each bay and correctly connect the cables to the drive installed.

  • Page 91: Chapter 10. Replacing Frus (Machine Types: 30A0 And 30A1)

    Chapter 10. Replacing FRUs (machine types: 30A0 and 30A1) This chapter provides information about the FRU replacement instructions. Not all FRUs are documented. Important: Ensure that you read and understand Chapter 2 “Safety information” on page 3 before replacing any FRU. These precautions and guidelines will help you work safely.

  • Page 92: Removing The Computer Cover

    required connector. Then, use the instructions that come with the option to help you make the connection and install any software or device drivers that are required for the option. Removing the computer cover Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1.

  • Page 93: Removing And Reinstalling The Front Bezel

    To remove and reinstall the front bezel, do the following: 1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 86. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 94: Installing Or Replacing A Pci Card

    3. Remove the front bezel by releasing the three plastic tabs on the left side and Figure 12. Removing the front bezel 4. To reinstall the front bezel, align the three plastic tabs on the right side of the front bezel with the corresponding holes in the chassis, then pivot the front bezel inwards until it snaps into position on the left side.
  • Page 95 • If you are installing a PCI card, remove the appropriate metal slot cover. • If you are replacing an old PCI card, grasp the old card that is currently installed and gently pull it out of the slot. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 96 Figure 14. Removing a PCI card Notes: a. The card fits tightly into the card slot. If necessary, alternate moving each side of the card a small amount until it is removed from the card slot. b. If the card is held in place by a retaining latch, disengage the card retaining latch on the PCI card slot.

  • Page 97: Installing Or Replacing A Memory Module

    The numbers 1, 2, 3, and 4 indicate the installation sequence. To locate the memory module slots, see “Locating parts on the system board” on page 74. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 98 UDIMM DIMM 1 DIMM 2 DIMM 3 DIMM 4 One UDIMM Two UDIMMs X, 1 X, 2 Three UDIMMs X, 3 X, 1 X, 2 Four UDIMMs X, 3 X, 1 X, 4 X, 2 To install or replace a memory module, do the following: 1.

  • Page 99: Installing Or Replacing The Optical Drive

    Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to install or replace the optical drive. To install or replace an optical drive, do the following: Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 100 1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 86. 3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 87. 4.

  • Page 101: Installing Or Replacing The Card Reader

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 147. Installing or replacing the card reader Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 102 This section provides instructions on how to install or replace the card reader. Note: The card reader is only available in some models. For new installation, see “Installing the card reader” on page 96. For replacement, see “Replacing the card reader” on page 98. Installing the card reader To install the card reader, do the following: 1.
  • Page 103 Figure 27. Removing the card reader cover 10. Reinstall the front bezel. See “Removing and reinstalling the front bezel” on page 87. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 104 What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 147. Replacing the card reader To replace the card reader, do the following: 1.

  • Page 105: Replacing The Front Audio And Usb Assembly

    4. Locate the front audio and USB assembly. See “Locating major FRUs and CRUs” on page 71. 5. Note the cable routing and connection. Then, disconnect the front audio and USB assembly cables from the system board. See “Locating parts on the system board” on page 74. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 106 6. Remove the screw that secures the front audio and USB assembly. Then, remove the front audio and USB assembly from the chassis. Figure 31. Removing the front audio and USB assembly ThinkStation E32 Hardware Maintenance Manual...
  • Page 107 7. Route the cables of the new front audio and USB assembly through the corresponding square hole in the front of the chassis. Then position the new front audio and USB assembly on the chassis as shown. Figure 32. Installing the front audio and USB assembly Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 108: Replacing The Battery

    8. Install the screw to secure the new front audio and USB assembly in place. Figure 33. Installing the screw to secure the front audio and USB assembly 9. Connect the cables of the new front audio and USB assembly cables to the front audio connector and the front USB connector on the system board.

  • Page 109: Replacing The Power Supply Assembly

    This section provides instructions on how to replace the power supply assembly. Although there are no moving parts in your computer after the power cord has been disconnected, the following warnings are required for your safety and proper Underwriters Laboratories (UL) certification. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 110 CAUTION: Hazardous moving parts. Keep fingers and other body parts away. CAUTION: Never remove the cover on a power supply or any part that has the following label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached.

  • Page 111: Replacing The Heat Sink And Fan Assembly

    This section provides instructions on how to replace the heat sink and fan assembly. CAUTION: The heat sink and fan assembly might be very hot. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 112 To replace the heat sink and fan assembly, do the following: 1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 86. 3. Lay the computer on its side for easier access to the system board. 4.

  • Page 113: Installing The Solid-State Drive

    1. Install the solid-state drive into the storage converter. Then, install the four screws to secure the solid-state drive to the storage converter. Figure 38. Installing the solid-state drive into the storage converter Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 114: Installing Or Replacing The Msata Solid-State Drive

    2. To install the solid-state drive with the storage converter into the 3.5-inch hard disk drive bracket, flex the bracket and align pin , pin , pin , and pin on the bracket with the corresponding holes in the storage converter. Figure 39.
  • Page 115 Figure 40. Installing the mSATA solid-state drive into the storage converter 2. Install the two screws to secure the mSATA solid-state drive to the storage converter. Figure 41. Installing the screws that secure the mSATA solid-state drive Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 116 3. Slide the mSATA solid-state drive storage converter into the card reader drive bay until it snaps into position. Figure 42. Installing the mSATA solid-state drive 4. Connect the signal cable and the power cable to the mSATA solid-state drive. What to do next: •...
  • Page 117 Figure 43. Removing the mSATA solid-state drive storage converter 7. Remove the two screws that secure the mSATA solid-state drive from the storage converter. Figure 44. Removing the screws that secure the mSATA solid-state drive Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 118 8. Pull the mSATA solid-state drive from the mini PCI Express slot on the storage converter. Figure 45. Removing the mSATA solid-state drive 9. To install a new mSATA solid-state drive, insert the mSATA solid-state drive into the mini PCI Express slot on the storage converter, and then press the mSATA solid-state drive downward.
  • Page 119 What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 147. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 120: Replacing The Internal Speaker

    Replacing the internal speaker Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to replace the internal speaker. Note: The internal speaker is only available in some models. To replace the internal speaker, do the following: 1.

  • Page 121: Replacing The Thermal Sensor

    4. Locate the thermal sensor. See “Locating major FRUs and CRUs” on page 71. 5. Disconnect the thermal sensor cable from the thermal sensor connector on the system board. See “Locating parts on the system board” on page 74. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 122 6. From inside the chassis, pivot the upper retaining clip that secures the plastic holder of the thermal sensor downward and then push the clip outward to release the clip. Then disengage the plastic holder holding the thermal sensor from the chassis. Figure 51.

  • Page 123: Replacing The Front Fan Assembly

    3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 87. 4. Disconnect the front fan assembly cable from the power fan connector on the system board. See “Locating parts on the system board” on page 74. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 124 5. The front fan assembly is attached to the chassis by four rubber mounts. Remove the front fan assembly by breaking or cutting the rubber mounts and gently pulling the front fan assembly out of the chassis. Note: The new front fan assembly will have four new rubber mounts attached. Figure 53.

  • Page 125: Replacing The Rear Fan Assembly

    3. Locate the rear fan assembly. See “Locating major FRUs and CRUs” on page 71. 4. Disconnect the rear fan assembly cable from the system fan connector on the system board. See “Locating parts on the system board” on page 74. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 126 5. The rear fan assembly is attached to the chassis by four rubber mounts. Remove the rear fan assembly by breaking or cutting the rubber mounts and gently pulling the rear fan assembly out of the chassis. Note: The new rear fan assembly will have four new rubber mounts attached. Figure 55.

  • Page 127: Replacing The Cover Presence Switch

    2. Remove the computer cover. See “Removing the computer cover” on page 86. 3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 87. 4. Locate the cover presence switch. See “Locating major FRUs and CRUs” on page 71. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 128 5. Disconnect the cover presence switch cable from the cover presence switch connector on the system board. See “Locating parts on the system board” on page 74. 6. Remove the screw that secures the cover presence switch and remove the cover presence switch from the chassis.

  • Page 129: Replacing The Primary Hard Disk Drive

    2. Remove the computer cover. See “Removing the computer cover” on page 86. 3. Locate the primary hard disk drive. See “Locating internal drives” on page 76. 4. Disconnect the signal cable and the power cable from the hard disk drive. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 130 5. Pull the blue handle to release and remove the hard disk drive from the drive cage. Figure 59. Removing the primary hard disk drive 6. Flex the sides of the blue bracket to remove the hard disk drive from the bracket. 7.

  • Page 131: Replacing The Secondary Hard Disk Drive

    2. Remove the computer cover. See “Removing the computer cover” on page 86. 3. Locate the secondary hard disk drive. See “Locating internal drives” on page 76. 4. Disconnect the signal cable and the power cable from the hard disk drive. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 132 5. Pull the blue handle to release and remove the hard disk drive from the hard disk drive cage. Figure 62. Removing the secondary hard disk drive 6. Flex the sides of the blue bracket to remove the hard disk drive from the bracket. 7.

  • Page 133: Installing The Tertiary Hard Disk Drive

    4. Remove the plastic panel in the front bezel for the drive bay you want to use. If there is a metal static shield installed in the drive bay, remove the metal static shield. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 134 5. Depending on whether you are installing a tertiary 3.5-inch hard disk drive or a 2.5-inch solid state drive, do one of the following: • Install the hard disk drive into the 5.25-inch optical drive bracket. Then, fully tighten the four screws to secure the hard disk drive to the 5.25-inch optical drive bracket.
  • Page 135 Then, fully tighten the four screws to secure the solid state drive with the storage converter to the 5.25-inch optical drive bracket. Figure 67. Installing the solid-state drive with the storage converter Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 136 6. Install the optical drive retainer on the side of the optical drive bracket. Figure 68. Installing the optical drive retainer 7. Slide the optical drive bracket into the secondary optical drive bay from the front of the computer until the optical drive bracket snaps into position. Figure 69.

  • Page 137: Replacing The Microprocessor

    5. Remove the heat sink and fan assembly. See “Replacing the heat sink and fan assembly” on page 105. Note: Place the heat sink and fan assembly on its side so that the thermal grease on the bottom of it does not get in contact with anything. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 138 6. Lift the small handle and open the retainer to access the microprocessor Figure 71. Accessing the microprocessor 7. Lift the microprocessor straight up and out of the microprocessor socket. Notes: • Your microprocessor and socket might look different from the one illustrated. •...

  • Page 139: Replacing The System Board

    This section provides instructions on how to replace the system board. CAUTION: The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 140 To replace the system board, do the following: 1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2.
  • Page 141 1. After you have removed the microprocessor from the failing system board, close the microprocessor retainer and then put the lever to the locked position to secure the retainer in place. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 142: Replacing The Wi-Fi Units

    2. Note the orientation of the socket cover, and install one side of the socket cover into the microprocessor socket. Carefully press the other side of the socket cover downward until the socket cover snaps into position. Note: Your microprocessor socket and cover might look slightly different from the illustration. Figure 76.
  • Page 143 Figure 77. Disconnecting the Bluetooth cable Note: The Bluetooth cable connects the Bluetooth connector on the Wi-Fi adapter card to the front USB connector on the system board to support the Bluetooth function. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 144 4. At the rear of the computer, press the release button to open the PCI card latch Figure 78. Opening the PCI card latch ThinkStation E32 Hardware Maintenance Manual...
  • Page 145 1. Remove the Wi-Fi adapter card from the computer, and then disconnect the front and rear Wi-Fi antenna cables from the Wi-Fi card module. Figure 80. Removing the Wi-Fi antenna cables Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 146 2. Remove the two screws that secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 81. Removing the screws that secure the Wi-Fi card module 3. Pull the Wi-Fi card module out of the mini PCI Express slot to remove it from the Wi-Fi adapter card. Figure 82.
  • Page 147 1. Insert the Wi-Fi card module into the mini PCI Express slot, and then install the two screws to secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 83. Installing the Wi-Fi card module Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 148 2. Connect the front antenna cable and rear antenna cable to the Wi-Fi card module. Figure 84. Installing the Wi-Fi antenna cables 3. Install the Wi-Fi adapter card into the PCI Express x1 slot on the system board. See “Locating parts on the system board”...

  • Page 149: Installing Or Removing The Rear Wi-Fi Antenna

    • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 147. Removing the rear Wi-Fi antenna To remove the rear Wi-Fi antenna, do the following: Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 150: Installing Or Removing The Front Wi-Fi Antenna

    1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Straighten the rear Wi-Fi antenna so that it can be more easily twisted. 3. Hold the thicker end of the rear Wi-Fi antenna and unscrew the Wi-Fi antenna from the rear of the computer.
  • Page 151 5. Stick the front antenna to the front panel as shown. Then insert the front antenna cable through the hole in the front panel. Figure 89. Installing the front Wi-Fi antenna 6. Connect the front antenna cable to the Wi-Fi card module. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)

  • Page 152: Replacing The Keyboard Or Mouse

    What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 147. Removing the front Wi-Fi antenna To remove the front Wi-Fi antenna, do the following: 1.

  • Page 153: Completing The Parts Replacement

    3. Ensure that the cables are routed correctly before reinstalling the computer cover. Keep cables clear of the hinges and sides of the computer chassis to avoid interference with reinstalling the computer cover. Chapter 10 Replacing FRUs (machine types: 30A0 and 30A1)
  • Page 154 9. To update your configuration, refer to Chapter 6 “Using the Setup Utility program” on page 55. Note: In most areas of the world, Lenovo requires the return of the defective Field Replaceable Units (FRUs). Information about this will come with the new FRUs or will come a few days after you receive the new FRUs.

  • Page 155: Chapter 11. Replacing Frus (Machine Types: 30A2 And 30A3)

    Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. Notes: 1. Use only computer parts provided by Lenovo. 2. When installing or replacing an option, use the appropriate instructions in this section along with the instructions that come with the option.

  • Page 156: Removing The Computer Cover

    required connector. Then, use the instructions that come with the option to help you make the connection and install any software or device drivers that are required for the option. Removing the computer cover Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1.

  • Page 157: Removing And Reinstalling The Front Bezel

    Removing and reinstalling the front bezel Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to remove and reinstall the front bezel. To remove and reinstall the front bezel, do the following: 1.

  • Page 158: Accessing The System Board Components And Drives

    4. To reinstall the front bezel, align the other three plastic tabs on the bottom of the front bezel with the corresponding holes in the chassis, then pivot the front bezel inward until it snaps into position. Figure 95. Reinstalling the front bezel What to do next: •...
  • Page 159 Your computer has four slots for installing or replacing DDR3 UDIMMs that provide up to a maximum of 32 GB system memory. When installing or replacing a memory module, use 2 GB, 4 GB, or 8 GB DDR3 UDIMMs in any combination up to a maximum of 32 GB. The following table provides information about the memory module installation rules that you should consider when installing or removing a memory module.

  • Page 160: Installing Or Replacing A Pci Card

    • If you are installing a memory module, open the retaining clips of the memory slot into which you want to install the memory module. Figure 97. Opening the retaining clips 7. Position the new memory module over the memory slot. Ensure that the notch on the memory module aligns correctly with the slot key on the system board.
  • Page 161 To install or replace a PCI card, do the following: 1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 150. 3. Rotate the PCI card retainer to the open position. 4.

  • Page 162: Installing Or Replacing The Card Reader

    6. Install the new card into the appropriate card slot on the system board and rotate the card retainer to the closed position. See “Locating parts on the system board” on page 82. Figure 101. Installing a PCI card Note: If you are installing a PCI Express x16 graphics card, ensure that the memory slot retaining clips are closed before you install the graphics card.
  • Page 163 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 102. Pivoting the drive bay assembly upward 6. Install the new card reader into the card reader bracket. Then install the two screws to secure the card reader to the bracket.
  • Page 164 8. Install the screw to secure the card reader bracket to the chassis. Figure 104. Installing the screw that secures the card reader 9. Connect the card reader cable to Front USB connectors on the system board. See “Locating parts on the system board”...
  • Page 165 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 105. Pivoting the drive bay assembly upward 6. Disconnect the card reader cable from the USB connector on the system board. See “Locating parts on the system board”...
  • Page 166 10. Install the card reader bracket to the chassis. Then push the bracket to the left to align the screw hole in the bracket with the corresponding hole in the chassis. Figure 107. Installing the card reader 11. Install the screw to secure the card reader bracket to the chassis. Figure 108.

  • Page 167: Replacing The Battery

    Replacing the battery Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as parallel-port assignments (configuration).

  • Page 168: Installing The Solid-State Drive

    Note: When the computer is turned on for the first time after replacing the battery, an error message might be displayed. This is normal after replacing the battery. 10. Turn on the computer and all attached devices. 11. Use the Setup Utility program to set the date, time, and any passwords. See Chapter 6 “Using the Setup Utility program”...

  • Page 169: Installing Or Replacing The Msata Solid-State Drive

    2. To install the solid-state drive with the storage converter into the 3.5-inch hard disk drive bracket, flex the bracket and align pin , pin , pin , and pin on the bracket with the corresponding holes in the storage converter. Figure 112.
  • Page 170 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 113. Pivoting the drive bay assembly upward 6. Insert the mSATA solid-state drive into the mini PCI Express slot on the storage converter, and then press the mSATA solid-state drive downward.
  • Page 171 8. Insert the mSATA solid-state drive storage converter to the chassis and push the converter to the left to align the screw hole in the converter with the corresponding hole in the chassis. Then install the screw to secure the mSATA solid-state drive storage converter to the chassis. Figure 116.
  • Page 172 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 117. Pivoting the drive bay assembly upward 6. Disconnect the card reader cable from the USB connector on the system board. See “Locating parts on the system board”...
  • Page 173 9. Remove the two screws that secure the mSATA solid-state drive from the storage converter. Figure 119. Removing the screws that secure the mSATA solid state drive 10. Remove the mSATA solid-state drive from the mini PCI Express slot on the storage converter. Figure 120.
  • Page 174 12. Install the two screws to secure the mSATA solid-state drive to the storage converter. Figure 122. Installing the screws that secure the mSATA solid state drive 13. Insert the mSATA solid-state drive storage converter to the chassis and push the converter to the left to align the screw hole in the converter with the corresponding hole in the chassis.

  • Page 175: Replacing The Hard Disk Drive

    Replacing the hard disk drive Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to replace the primary hard disk drive. Note: This section also applies to computer models with a 2.5-inch solid-state drive. To replace the primary hard disk drive, do the following: 1.
  • Page 176 6. Pull the blue handle to slide the hard disk drive out of the drive cage. Figure 125. Removing the hard disk drive 7. Flex the sides of the blue bracket to remove the hard disk drive from the bracket. 8.

  • Page 177: Installing Or Replacing The Secondary Hard Disk Drive

    9. Slide the new hard disk drive into the drive cage until it snaps into position. Figure 127. Installing the hard disk drive 10. Connect the signal cable and the power cable to the new hard disk drive. What to do next: •...
  • Page 178 Figure 128. Pivoting the drive bay assembly upward 5. Remove the cable clip on the bottom of the primary hard disk drive bay as shown. Figure 129. Removing the cable clip ThinkStation E32 Hardware Maintenance Manual...
  • Page 179 6. Align the four holes in the secondary hard disk drive bracket with the corresponding four tabs on the bottom of the primary hard disk drive bay as shown. Then, position the bracket onto the bottom of the primary hard disk drive bay so that the tabs on the bay pass through the holes in the bracket. Figure 130.
  • Page 180 8. Install the screw to secure the secondary hard disk drive bracket to the chassis. Figure 132. Installing the screw to secure the secondary hard disk drive bracket 9. To install a new hard disk drive into the blue bracket, flex the bracket and align pin , pin , pin and pin...
  • Page 181 10. Slide the new secondary hard disk drive into the bracket until it snaps into position. Figure 134. Installing the secondary hard disk drive 11. Connect the signal cable and the power cable to the new secondary hard disk drive. What to do next: •...
  • Page 182 Figure 135. Pivoting the drive bay assembly upward 5. Locate the secondary hard disk drive bay. See “Locating internal drives” on page 84. 6. Disconnect the signal cable and the power cable from the primary hard disk drive and secondary hard disk drive.
  • Page 183 8. To install a new hard disk drive into the blue bracket, flex the bracket and align pin , pin , pin and pin on the bracket with the corresponding holes in the hard disk drive. Do not touch the circuit board on the bottom of the hard disk drive.

  • Page 184: Replacing The Wi-Fi Units

    Replacing the Wi-Fi units Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to replace the Wi-Fi units. The Wi-Fi units include a Wi-Fi adapter card, a Wi-Fi card module, and a rear Wi-Fi antenna cable.
  • Page 185 5. Grasp the Wi-Fi adapter card that is currently installed and gently pull it out of the slot. Figure 140. Removing the Wi-Fi adapter card Note: The card fits tightly into the card slot. If necessary, alternate moving each side of the card a small amount until it is removed from the card slot.
  • Page 186 2. Remove the two screws that secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 142. Removing the screws that secure the Wi-Fi card module 3. Pull the Wi-Fi card module out of the mini PCI Express slot to remove it from the Wi-Fi adapter card. Figure 143.
  • Page 187 1. Insert the Wi-Fi card module into the mini PCI Express slot, and then install the two screws to secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 144. Installing the Wi-Fi card module Chapter 11 Replacing FRUs (machine types: 30A2 and 30A3)
  • Page 188 2. Connect the front antenna cable and rear antenna cable to the Wi-Fi card module. Figure 145. Installing the Wi-Fi antenna cables 3. Install the Wi-Fi adapter card into the PCI Express x1 slot on the system board. See “Locating parts on the system board”...

  • Page 189: Installing Or Removing The Rear Wi-Fi Antenna

    Installing or removing the rear Wi-Fi antenna Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to install or remove the rear Wi-Fi antenna. Installing the rear Wi-Fi antenna To install the rear Wi-Fi antenna, do the following: 1.

  • Page 190: Installing Or Removing The Front Wi-Fi Antenna

    3. Hold the thicker end of the rear Wi-Fi antenna and unscrew the Wi-Fi antenna from the rear of the computer. Figure 148. Removing the rear Wi-Fi antenna What to do next: • To work with another piece of hardware, go to the appropriate section. •...
  • Page 191 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 149. Pivoting the drive bay assembly upward 5. Peel off the paper that protects the sticker on the front antenna. Figure 150. Peeling off the paper that protects the sticker 6.
  • Page 192 Figure 151. Installing the front Wi-Fi antenna 7. Connect the front antenna cable to the Wi-Fi card module. What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 216. Removing the front Wi-Fi antenna To remove the front Wi-Fi antenna, do the following: 1.

  • Page 193: Replacing The Optical Drive

    5. Disconnect the front antenna cable from the Wi-Fi card module. 6. Remove the front antenna and cable from the front of the computer. Figure 153. Removing the front Wi-Fi antenna What to do next: • To work with another piece of hardware, go to the appropriate section. •...
  • Page 194 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 154. Pivoting the drive bay assembly upward 5. Disconnect the signal cable and the power cable from the rear of the optical drive. 6. Press the optical drive lock on the right side of the drive bay assembly and slide the optical drive out of the rear of the bay.

  • Page 195: Replacing The Heat Sink And Fan Assembly

    7. Install the optical drive retainer on the side of the new optical drive. Figure 156. Installing the optical drive retainer 8. Slide the new optical drive into the drive bay until it snaps into position. Figure 157. Installing the optical drive 9.
  • Page 196 2. Remove the computer cover. See “Removing the computer cover” on page 150. 3. Disconnect the heat sink and fan assembly cable from the microprocessor fan connector on the system board. See “Locating parts on the system board” on page 82. 4.
  • Page 197 6. Pivot the two plastic retaining clips that secure the heat sink fan duct outward. Then remove the heat sink fan duct from the failing heat sink and fan assembly. Figure 159. Removing the heat sink fan duct 7. Place the new heat sink and fan assembly on the system board so that the four screws are aligned with the corresponding holes in the system board.

  • Page 198: Replacing The Power Supply Assembly

    What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 216. Replacing the power supply assembly Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1.
  • Page 199 4. Gently pivot the two plastic retaining clips that secure the heat sink fan duct outward, and then lift the heat sink fan duct out of the chassis. Figure 161. Removing the heat sink fan duct 5. Press the release tab as shown and pivot the drive bay assembly upward.
  • Page 200 6. Record the cable routing and cable connections. Then, disconnect the power supply assembly cables from all drives and from power connectors , and on the system board. Figure 163. Power connectors on the system board 7. Release the power supply assembly cables from any cable clips or ties that secure the cables to the chassis.
  • Page 201 Then, install the three screws to secure the new power supply assembly in place. Note: Use only screws provided by Lenovo. Figure 165. Installing the power supply assembly 11.
  • Page 202 Figure 166. Pivoting the drive bay assembly downward 13. Position the heat sink fan duct on the top of the heat sink as shown. Then, press the heat sink fan duct straight down until it snaps into position. Figure 167. Installing the heat sink fan duct What to do next: •...

  • Page 203: Replacing The Microprocessor

    Replacing the microprocessor Attention: Do not open your computer or attempt any repair before reading and understanding the “Important safety information” on page 1. This section provides instructions on how to replace the microprocessor. CAUTION: The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool.
  • Page 204 7. Lift the small handle and open the retainer to access the microprocessor Figure 169. Accessing the microprocessor 8. Carefully lift the microprocessor straight up and out of the microprocessor socket. Notes: • Your microprocessor and socket might look different from the one illustrated. •...
  • Page 205 11. Note the orientation of the new microprocessor. Hold the new microprocessor by its edges and align the notches on it with the tabs in the microprocessor socket. Then, carefully lower the new microprocessor straight down into the microprocessor socket. Note: The small triangle on one corner of the new microprocessor is the microprocessor orientation indicator.

  • Page 206: Replacing The Cover Presence Switch

    Figure 172. Reinstalling the heat sink and fan assembly with the fan duct 14. Reconnect all cables that were disconnected from the system board. What to do next: • To work with another piece of hardware, go to the appropriate section. •...
  • Page 207 6. Press the clip as shown and lift the cover presence switch up to remove it from the chassis. Figure 173. Removing the cover presence switch Chapter 11 Replacing FRUs (machine types: 30A2 and 30A3)

  • Page 208: Replacing The Internal Speaker

    7. Put the new cover presence switch into the hole and press it down until it snaps into position. Note: Note the orientation of the cover presence switch. Figure 174. Installing the cover presence switch 8. Reconnect the cover presence switch cable to the cover presence switch connector on the system board.
  • Page 209 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 175. Pivoting the drive bay assembly upward 5. Disconnect the internal speaker cable from the system board. 6. Push the tab from inside and slide the internal speaker to the left to remove it from the chassis. Figure 176.

  • Page 210: Replacing The Front Audio And Usb Assembly

    7. Align the new internal speaker with the four metal clips on the inner side of chassis, and then slide the speaker to the right until it snaps into position. Figure 177. Installing the internal speaker 8. Connect the internal speaker cable to the internal speaker connector on the system board. See “Locating parts on the system board”...
  • Page 211 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 178. Pivoting the drive bay assembly upward 5. Disconnect the front audio and USB assembly cables from the system board and note the cables routing. See “Locating parts on the system board” on page 82. 6.

  • Page 212: Replacing The System Fan

    11. Reconnect the front USB and front audio cables to the system board. See “Locating parts on the system board” on page 82. 12. Reinstall the front bezel. See “Removing and reinstalling the front bezel” on page 151. What to do next: •...
  • Page 213 6. The system fan is attached to the chassis by four rubber mounts. Remove the system fan by cutting the rubber mounts and lifting the system fan out of the chassis. Note: The new front fan assembly will have four new rubber mounts attached. Figure 181.

  • Page 214: Replacing The Thermal Sensor

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 216. Replacing the thermal sensor Attention: Do not open your computer or attempt any repair before reading and understanding “Important safety information” on page 1. This section provides instructions on how to replace the thermal sensor.
  • Page 215 7. From inside the chassis, pivot the left retaining clip that secures the plastic holder of the thermal sensor and then push the clip outward to release the clip. Then disengage the plastic holder holding the thermal sensor from the chassis. Figure 184.

  • Page 216: Replacing The Power Switch

    9. Insert the connector and cable of the new thermal sensor into the left hole in the chassis. Then align the two tabs on the plastic holder holding the thermal sensor with the two holes in the chassis, and press the plastic holder until it snaps into position. Figure 185.
  • Page 217 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 186. Pivoting the drive bay assembly upward 6. Disconnect the power switch cable from the power switch connector on the system board. See “Locating parts on the system board” on page 82. 7.

  • Page 218: Replacing The System Board

    8. Insert the two plastic tabs in the new power switch through the hole on the chassis, and then press the power switch as shown until it snaps into position. Figure 188. Installing the new power switch 9. Reconnect the power switch cable to the system board. See “Locating parts on the system board” on page 82.
  • Page 219 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 189. Pivoting the drive bay assembly upward 6. Remove all memory modules and PCI cards that are currently installed. See “Installing or replacing a memory module” on page 152 and “Installing or replacing a PCI card” on page 154. 7.
  • Page 220 9. Remove the eight screws that secure the system board by following the sequence shown in the following illustration. Figure 190. Removing the eight screws that secure the system board 10. Slide the system board to the front of the computer and then carefully lift the system board out of the chassis.
  • Page 221 12. Install the new system board into the chassis by aligning the eight screw holes in the new system board with the corresponding mounting studs on the chassis. Then, install the eight screws to secure the system board by following the sequence shown in the following illustration. Figure 191.

  • Page 222: Replacing The Keyboard Or Mouse

    2. Note the orientation of the socket cover, and install one side of the socket cover into the microprocessor socket. Carefully press the other side of the socket cover downward until the socket cover snaps into position. Note: Your microprocessor socket and cover might look slightly different from the illustration. Figure 192.
  • Page 223 1. Ensure that all components have been reassembled correctly and that no tools or loose screws are left inside your computer. See “Locating major FRUs and CRUs” on page 79 for the locations of various components in your computer. 2. If you have removed the front bezel, reinstall it. To reinstall the front bezel, align the three tabs on the front bezel with the corresponding holes in the chassis and pivot the front bezel inwards until it snaps into position.
  • Page 224 9. To update your configuration, refer to Chapter 6 “Using the Setup Utility program” on page 55. Note: In most areas of the world, Lenovo requires the return of the defective Field Replaceable Units (FRUs). Information about this will come with the new FRUs or will come a few days after you receive the new FRUs.

  • Page 225: Chapter 12. Additional Service Information

    – Start the Setup Utility. – Select Standard CMOS Features. • Sources for obtaining the latest level BIOS available 1. Lenovo support web site: http://www.lenovo.com/support/ 2. Lenovo Customer Support Center 3. Levels 1 and 2 Support To update (flash) the BIOS, see “Flash update procedures” on page 219.

  • Page 226: Updating (Flashing) The Bios From A Disc

    Note: You can download a self-starting bootable disc image (known as an ISO image) with the system program updates to create a system-program-update disc. Go to http://www.lenovo.com/support. To update (flash) the BIOS from a disc on the Windows 8 (64-bit) or Windows 8.1 (64-bit) operating system, do the following: 1.

  • Page 227: Updating (Flashing) The Bios From Your Operating System

    2. Remove the computer cover. For computer models 30A0 and 30A1, refer to “Removing the computer cover” on page 86. For computer models 30A2 and 30A3, refer to “Removing the computer cover” on page 150.

  • Page 228: Power Management

    Power management Power management reduces the power consumption of certain components of the computer such as the system power supply, processor, hard disk drives, and some monitors. Advanced configuration and power interface (ACPI) BIOS Being an ACPI BIOS system, the operating system is allowed to control the power management features of the computer and the setting for Advanced Power Management (APM) BIOS mode is ignored.

  • Page 229: Appendix A. System Memory Speed

    Memory frequency Intel Xeon E3-1280V3, Intel Xeon E3-1270V3, Intel Xeon E3-1240V3, Intel Xeon E3-1230V3, Intel Xeon E3-1220V3, Intel Xeon E3-1275V3, 1.5 V 1600 MHz Intel Xeon E3-1245V3, Intel Xeon E3-1225V3, Intel i7-4770, Intel i5-4670, Intel i5-4570 © Copyright Lenovo 2013, 2014...
