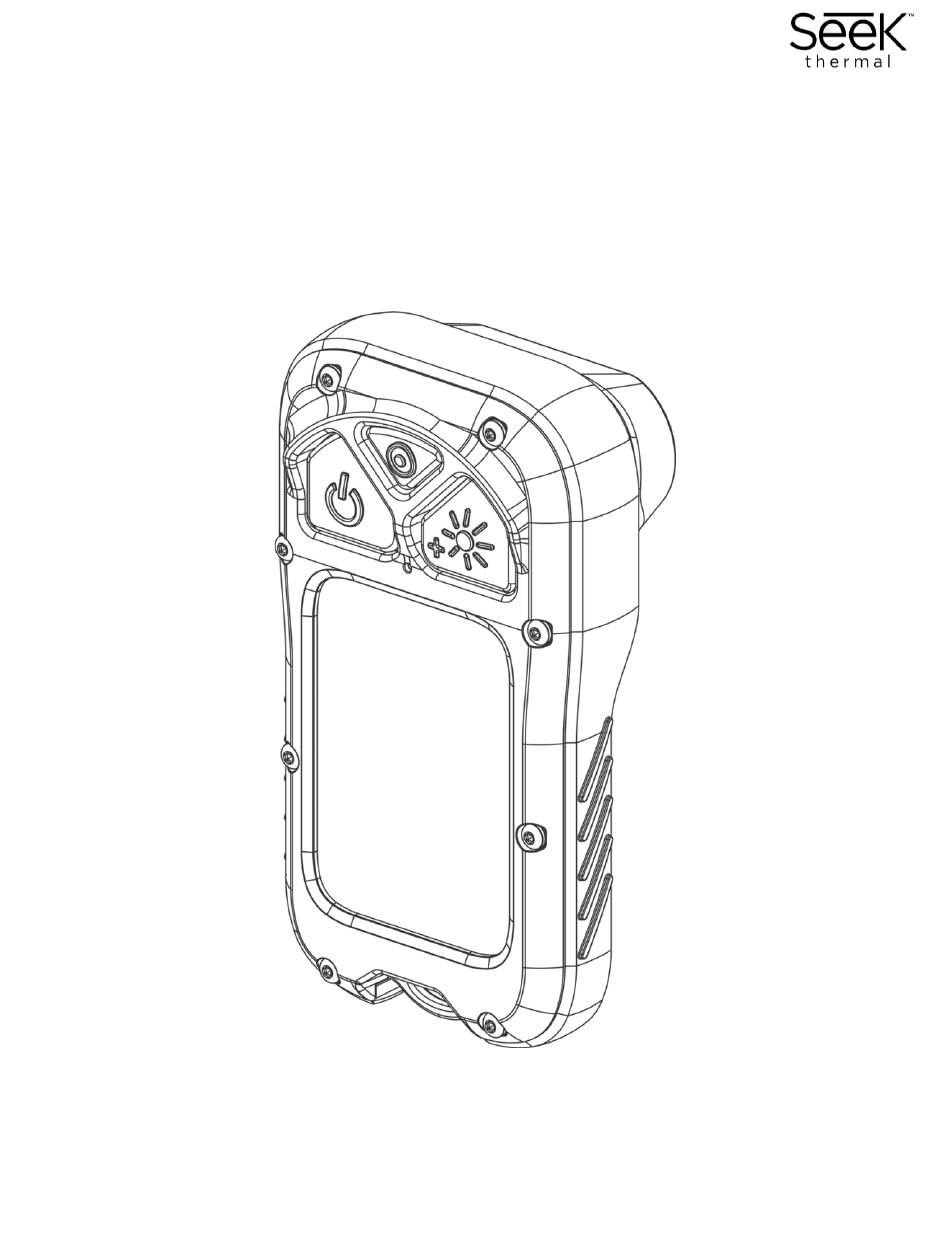

- Page 1 User Manual FirePRO 300 Thermal Imaging Camera May 2023 REV 1...
-
Page 2: Table Of Contents
INTRODUCTION ......................3 QUICK START GUIDE ....................5 GETTING TO KNOW YOUR FIREPRO 300 .............. 6 OPERATION AND USE ....................2 MAINTENANCE AND CLEANING ................6 TRAINING ........................7 CUSTOMER AND PRODUCT SUPPORT ............... 10 LEGAL AND WARRANTY..................11... -
Page 3: Introduction
Seek Thermal is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with this user manual. In such cases, the warranty will be voided. - Page 4 1.2 Intended use and reasonably foreseeable misuse This product is intended to be used as a personal safety aid. Never become wholly dependent on the thermal imager for personal navigation. It is not a substitute for proper safety training. Always maintain awareness of location and escape routes when using this device.
-
Page 5: Quick Start Guide
2 Quick Start Guide Please refer to the following to start using the product right away: 1. Before first time use, charge the FirePRO 300 using the supplied charging dock for 3.5 hours or until the charge screen indicates full battery. -
Page 6: Getting To Know Your Firepro 300
3 Getting To Know Your FirePRO 300 3.1 What’s included in the box • Thermal imaging Camera • Charging dock • USB-C to USB-A cable • Hook and loop retaining strap • Durable Quick Start Guide • Safety information booklet 3.2 Equipment ratings... - Page 7 3.3 Camera elements 1. Power On / Off 2. Image and Video capture 3. Flashlight / Mode selection 4. F to C unit change button 5. 320 x 240 LCD display Figure 1 – Front camera view 1. LED flashlight 2.
- Page 8 3.4 Screen elements reticle location (when TI BASIC+ or Survey mode 1. Over temperature indicator; provides a visual warning that the thermal imaging camera is are enabled) close overheating internal 6. TI BASIC+ icon, indicates that the extra components. Move the camera to a cooler features of TI BASIC+ are enabled;...
- Page 9 3.5 Battery status indicator (operational)
-
Page 10: Operation And Use
4 Operation and Use 4.1 Charging the device 1. Place the charging dock on suitable stable surface. 2. Plug the USB cable into a safe power block (not provided) or computer USB port. 3. Place the FirePRO with the screen facing upwards and the charging contacts facing downwards into the dock. - Page 11 4.2 Camera modes The camera has 3 thermal imaging modes. 1. TI Basic 2. TI Basic+ 3. Survey TI Basic TI Basic+ Survey TI Basic and TI Basic+ mode are dedicated firefighting modes. Colorization begins at 300F (150C). Survey mode is optimized for overhaul and size-up applications. Colorization begins at 150F (65C).
- Page 12 4.3 Image capture To save an image to the camera’s internal memory: Press and release the Media Capture button. A white flash will appear on the screen, notifying the user that an image has been saved. NOTICE The number of images is that can be captured is dependent on the combined total size of videos and images saved.
- Page 13 Copy and paste videos / images to the folder of your choice on your computer. Eject the FirePRO from the computer. 4.6 Updating your camera Periodically, Seek Thermal will release product improvements or enhancement in the form of firmware updates. Visit thermal.com/firepro-300 to check for the latest firmware version.
-
Page 14: Maintenance And Cleaning
Contaminants include: chemical fire extinguishing compounds, radioactivity, biohazardous materials, and residues from chemical fires • Seek Thermal reserves the right to charge the full cost for the decontamination and disinfection of cameras that are shipped to our service department. -
Page 15: Training
6 Training Basic familiarity and fire service use case examples are provided on the Seek Thermal website at www.thermal.com For additional training resources, please visit the following: Instructor Andy Starnes - www.insighttrainingllc.com Max Fire Box fire dynamics - www.maxfirebox.com NOTICE Read and understand this entire manual. - Page 16 Before entering a potentially hazardous situation, turn on and test the thermal imager to confirm it is operating properly. Failure to confirm the thermal imager is operating properly may place the user at higher risk in dangerous situations which could result in serious injury or death.
- Page 17 o When viewing a source of high temperature through a clear window with a thermal imager, the thermal imager display will only show a reflection of the user holding the thermal imager and not the source of high temperature behind the window. o When viewing a hole filled with water, the thermal imager display will show a reflection of any heat sources above and away from the water surface.
-
Page 18: Customer And Product Support
7.1 Quality Assurance The Quality Management System under which this product was developed and manufactured complies to the ISO 9001 Standard. Seek Thermal Incorporated reserves the right to make changes and improvements on any of the products without prior notice. -
Page 19: Legal And Warranty
The technology utilized in Seek Thermal imagers may be subject to export control regulation by the governments of the USA. Where an export license applies, once obtained by Seek Thermal on behalf of the customer, all parties must strictly adhere to the terms and conditions pertaining to that license. - Page 20 If the Item is lost, stolen, or destroyed, or unauthorized people have access to it, this must be reported to Seek Thermal within 21 days. The report must include a description of the incident, to include as appropriate: • Who had physical possession of the item •...
