Summary of Contents for Kemppi SA 60

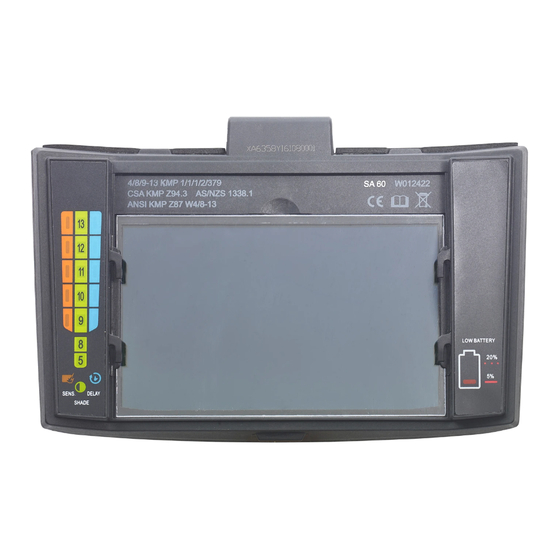

- Page 1 AUTO DARKENING WELDING FILTER SA 60 XA 74...
- Page 2 LIC40175 SA 60, XA 74: EN 379:2003+A1:2009 Kemppi Oy Authorized representative (UKCA) PL 13, Kempinkatu 1 Kemppi UK 15801 LAHTI Martti Kemppi Building, FINLAND Priory Business Park, Fraser Road, MK44 3WH Bedford, UK SA 60, XA 74...
- Page 3 Inspect the ADF, check the batteries and change if necessary. If this does not help, contact a Kemppi representative or your supervisor. • The ADF is not water-proof or water resistant. Do not immerse it in water. Protect the filter from contact with liquids and dirt.
- Page 4 • Operating temperature is too low. Do not use at temperatures below -5ºC (23ºF). • Add sensitivity. Poor vision • Protective lens and/or the ADF is soiled. Change the lens. • There is insufficient ambient light. SA 60, XA 74...
-
Page 5: Technical Data
TIG rated Power supply, Solar cell, 1 x CR2450 Solar Cell, 1 x CR2450, replaceable PAPR battery Certification CE, ANSI, CSA, AS/NZS, CE, ANSI, CSA, UKCA AS/NZS, UKCA Compatible with Gamma 100A, GTH3 SFA Gamma GTH3 XFA © Kemppi Oy 2023... - Page 6 Eg. CE 4/5, 8/9-13 KMP 1/1/1/2/379 CE marking (European Conformity) UKCA UKCA marking (UK Conformity) Light state scale number Lightest dark state scale number Darkest state scale number (SA 60) Darkest state scale number (XA 74) Manufacturer identification Optical class Diffusion of light class...
-
Page 7: Ordering Codes
Before use • Make sure the protective lens is clean. Remove the protective film. • Make sure the sensors on the front of the ADF are clean. © Kemppi Oy 2023... - Page 8 4. Shade: Shades 5/8, 9-13. Select shade 5/8 with a long press of the button. 5. Delay: 5 levels. 6. Low battery indicator. • Blinking slowly: the battery charge level is 20%. • Blinking rapidly: the battery charge level is 5% SA 60, XA 74...
- Page 9 SA 60 © Kemppi Oy 2023...
- Page 10 • Blower status: normal or high blower speed. • Filter status: When illuminated, change the filter. • Low battery indicator. • Blinking slowly: the battery charge level is 20%. • Blinking rapidly: the battery charge level is 5%. SA 60, XA 74...
- Page 11 XA 74 LOW BATTERY © Kemppi Oy 2023...
-
Page 12: Maintenance
If the ADF is not to be used for a prolonged period of time, remove the battery. Disposal of the product Do not dispose of the product with household waste. Follow the local laws and regulations on safe and ecological disposal of electronic devices. SA 60, XA 74... - Page 13 Konformitäts-erklärungen – Declaraciones de conformidad – Vaatimustenmukaisuusvakuutuksia – Déclarations de conformité – Dichiarazioni di conformità – Verklaringen van overeenstemming – Samsvarserklæringer – Deklaracje zgodności – Declarações de conformidade – Заявления о соответствии – Försäkran om överensstämmelse – 符合性声明 © Kemppi Oy 2023...
- Page 14 20 A 30 A 40 A 60 A 80 A 100 A 125 A 150 A 175 A 200 A 225 A 250 A 275 A 300 A 350 A 400 A 450 A 500 A SA 60, XA 74...
- Page 15 Carbon arc Plasma SELECTING SHADE LEVEL Select the required shade gouging cutting level according to the welding process. Refer to the “Shade guide table”. © Kemppi Oy 2023...
- Page 16 SA 60, XA 74...
