INSTALLATION AND MAINTENANCE INSTRUCTIONS
63-1052, 63-1053, and 63-1057
Intelligent Photoelectric Smoke Detectors

SPECIFICATIONS

Normal Operating Voltage:
Standby Current:
Alarm Current:
Humidity Range:
Temperature Range:
Heat Detector:
Height:
Diameter:
Weight:

BEFORE INSTALLING

This detector must be installed in compliance with the control panel system
installation manual. The installation must meet the requirements of the Au-
thority Having Jurisdiction (AHJ). Detectors offer maximum performance
when installed in compliance with the National Fire Protection Association
(NFPA); see NFPA 72.

GENERAL DESCRIPTION

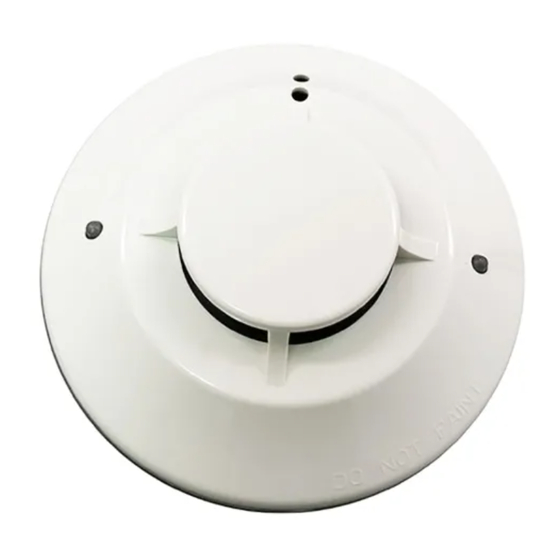

Models 63-1052, 63-1053 and 63-1057 are intelligent photoelectric, spot-
type smoke detectors utilizing sensing chambers that are designed to re-
spond rapidly to a broad range of fires. The sensing chamber employs
features that minimize the effects of settled dust on performance. Model
63-1053 uses a thermistor based, 135°F heat detection circuit in addition to the
photoelectric sensing chamber. The 63-1053 also transmits an alarm signal due
to heat (135°F fixed) per UL 521. 63-1057 is designed for use inside the DN-
RECL duct housing only. 63-1057 should not be used in open area applications.
The detector is designed with tri-color LEDs to indicate detector status. The
detector can be programmed to make the LEDs blink or be steady green, am-
ber or red. The detector remote output can be configured to follow the LED
or be independently controlled. A remote LED annunciator is available as an
accessory (RA400Z/RA100Z).
The 63-1052, 63-1053 and 63-1057 require compatible addressable commu-
nications to function properly. Connect these detectors to listed-compatible
control panels only.

SPACING

System Sensor recommends spacing detectors in compliance with NFPA 72. In
low air flow applications with smooth ceilings, the detectors should be spaced
30 feet apart. For specific information regarding detector spacing, placement,
and special applications, refer to NFPA 72 or the System Smoke Detector Appli-
cation Guide, available from Fike. When using the 63-1053 as a heat detector
in FM3210 compliant applications, space detectors 20 feet apart.
Duct Applications: 63-1052 and 63-1053 are listed for use in ducts. See Duct
Applications Guide HVAG53 (formerly A05-1004) for details on pendant
mount applications.
Note: 63-1057 is listed for use inside DNRECL duct smoke detectors.

WIRING GUIDE

All wiring must be installed in compliance with the National Electrical Code,
applicable local codes, and any special requirements of the Authority Having
Jurisdiction (AHJ). Proper wire gauges should be used. The installation wires
should be color-coded to limit wiring mistakes and simplify system trouble-
shooting. Improper connections will prevent a system from responding prop-
erly in the event of a fire.
1. Wire the detector base (supplied separately) per the wiring diagram, Figure 1.
2. Install the detector into the base. Push the detector into the base while
turning it clockwise to secure it in place.
3. Set the desired address using the IR configuration tool (model no. EA–CT).
NOTE: Maximum range for the EA–CT is 30 ft. (9 m).
4. Test the detector(s) as described in the TESTING section of this manual.
15 to 30 VDC
481µA max. @ 24 VDC (continuous broadcasts)
2 mA max. @ 24 VDC (LEDs on)
10% to 93% Relative Humidity, Non-condensing
32°F to 120°F (0°C to 49°C ); 63-1052 and 63-1057; 32°F to 100°F (0°C to 38°C); 63-1053
135°F Fixed Temperature Electronic Thermistor
2.1˝ (51 mm) installed in EBFI or EBI Base
6.1˝ (155 mm) installed in EBFI Base; 4.1˝ (104 mm) installed in EBI Base
5.2 oz. (147 g)
FIGURE 1. WIRING DIAGRAM
OPTIONAL
REMOTE
ANNUNCIATOR
–
+
–
–
OPTIONAL RETURN LOOP
+
NOTE: 63-1057 requires a 5-volt zener diode only when connected to an
RA400Z or RA100Z remote LED annunciator.
Dust covers provide limited protection against airborne dust particles during
shipping. Dust covers must be removed before the detectors can sense smoke.
Remove detectors prior to heavy remodeling or construction.

TAMPER-RESISTANCE

Models 63-1052 and 63-1053 include a tamper-resistant capability that pre-
vents their removal from the base without the use of a tool. Refer to the base
manual for details on making use of this capability.

TESTING

Before testing, notify the proper authorities that the system is undergoing
maintenance, and will temporarily be out of service. Disable the system to
prevent unwanted alarms.
All detectors must be tested after installation and periodically thereafter. Test-
ing methods must satisfy the Authority Having Jurisdiction (AHJ). Detectors
offer maximum performance when tested and maintained in compliance with
NFPA 72.
The detector can be tested in the following ways:
A. Functional
This detector can be functionally tested by using the EA–CT. Follow-
ing the instructions, initiate the detector test sequence. The detector will
then send a test alarm message to the panel. Refer to the control panel
technical documentation for further information.
B. Smoke Entry
The GEMINI model 501 aerosol generator can be used for smoke entry
testing. Set the generator to represent 4%/ft to 5%/ft obscuration as de-
scribed in the GEMINI 501 manual. Using the bowl shaped applicator,
apply aerosol until the panel alarms.
1
704 S. 10th Street
Blue Springs, MO 64015
Phone: 816.229.3405; Fax: 816.228.9277
www.fike.com
CAUTION: DO NOT LOOP
WIRE UNDER TERMINAL
1, 2 OR 3. BREAK WIRE
RUN TO PROVIDE
SUPERVISION OF
+
CONNECTIONS.
CAUTION
I56-2475-010
R
C0113-01
3/25/2020
