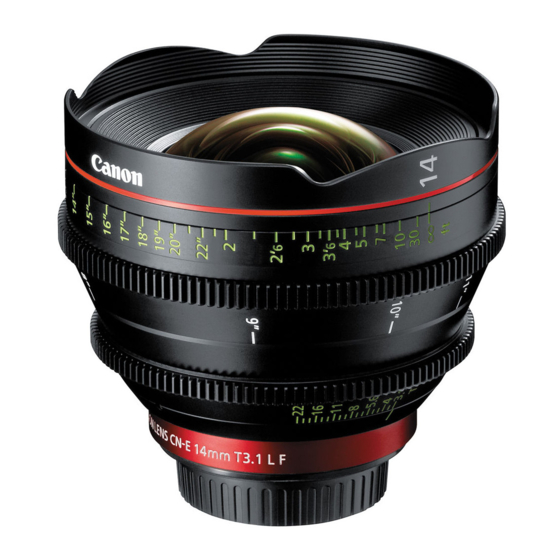

- Page 1 Digital Cinema Lens CN-E14mm T3.1 L F CN-E14mm T3.1 FP X CN-E20mm T1.5 L F CN-E20mm T1.5 FP X CN-E24mm T1.5 L F CN-E24mm T1.5 FP X CN-E35mm T1.5 L F CN-E35mm T1.5 FP X CN-E50mm T1.3 L F CN-E50mm T1.3 FP X CN-E85mm T1.3 L F...
- Page 2 NOTE This lens is a full manual lens for shooting movies. When used to shoot still images or when manual operations are performed in AE or other Auto modes, the lens may not operate properly or the indications may not be correct.
-
Page 3: Table Of Contents
ENGLISH GENERAL SAFETY INFORMATION ....E2 Product List ............E6 Names of Parts ..........E7 Mounting and Detaching the Lens .....E8 Available Accessories ........E10 Dimensions of Parts ......... E11 Specifications ...........E13 Appendix External view ........apx. 2... -
Page 4: General Safety Information
GENERAL SAFETY CAUTION INFORMATION This indicates a potentially hazardous situation which, if The safety warnings and cautions provided on the not heeded, may result in a minor injury to you or others, or damage to property. product or in this operation manual must be observed. Failure to observe these warnings and cautions may NOTE result in injury or accident.Read this operation manual... - Page 5 2. Inspect mountings regularly (about every six months dismount the lens from the camera and contact your to one year) to ensure they are securely tightened. Canon sales representative or dealer. If a mounting becomes loose, parts may fall off and • Smoke, fumes, or unusual noises cause injury.
- Page 6 MAINTENANCE AND INSPECTION STORAGE NOTE CAUTION 1. Clean off any dust on the lens surface using a Always attach the lens cap, hood cap, dust cap or covers lens blower or a soft lens brush. In case of getting before storage. Storing the lens without the caps or fingerprints or stains on the lens, use a clean cotton covers attached poses a risk of fire if the lens concentrate cloth moistened with commercial lens cleaning fluid,...
- Page 7 1. Canon shall bear no responsibility for damage resulting from improper operation of this product by the customer. 2. Canon shall make no guarantees about the product quality, functions, or operation manual and its marketability and suitability for the customer’s purpose.
-
Page 8: Product List
PRODUCT LIST Make sure all of the following items are included in the packing box. ⑤ If you find any item missing, please contact your dealer. ④ ①Lens body ②Lens cap ③Rear lens cap ② ④ O peration Manual "Before Using The Product" ⑤Operation Manual "Regulations"... -
Page 9: Names Of Parts
NAMES OF PARTS Focus drive gear Iris drive gear Mount... -
Page 10: Mounting And Detaching The Lens
MOUNTING AND DETACHING THE LENS See your camera’s instructions for details on mounting and detaching the lens. Mounting the lens Remove the rear lens cap. Mount the lens on the camera. - Page 11 Detaching the lens Detach the lens from the camera. Attach the rear lens cap to the detached lens. • After detaching the lens, place the lens with the rear end up to prevent the lens surface and NOTE contacts from getting scratched. •...
-
Page 12: Available Accessories
AVAILABLE ACCESSORIES A variety of professional camera accessories are available. Be sure to check the mounted condition before use. Attach the lens to the camera tightly so that both mounting surfaces are in complete contact. Refer to the operation manual for the respective camera for the detailed information. -
Page 13: Dimensions Of Parts
1. 5 2. 8 5 . 6 2 x M3 2 x M3 (4.1) 30° 42.2 * CN-E14mm T3.1 L F cannot be used with a filter. 44.3 60° Spur gear specifications Focus drive gear Iris drive gear Number of teeth Module P.C.D. - Page 14 DIMENSIONS OF PARTS PL mount Unit: mm 2 x M3 2×M3 30° (4.1) 34.1 * CN-E14mm T3.1 FP X cannot be used 36.2 with a filter. 60° Spur gear specifications Focus drive gear Iris drive gear Number of teeth Module P.C.D.
-
Page 15: Specifications
SPECIFICATIONS CN-E14mm CN-E20mm CN-E24mm CN-E35mm CN-E50mm T3.1 L F T1.5 L F T1.5 L F T1.5 L F T1.3 L F Lens Mount Focal Length 35 mm 14 mm 20 mm 24 mm 50 mm Maximum T-stop 1:3.1 1:1.5 1:1.3 Iris Blades 11 pieces 35mm full size... - Page 16 CN-E85mm CN-E135mm T1.3 L F T2.2 L F Lens Mount Focal Length 85 mm 135 mm Maximum T-stop 1:1.3 1:2.2 Iris Blades 11 pieces 35mm full size Coverage φ43.3 mm / 36.0 x 24.0 mm Image Circle / H x V (1.5:1) 23.9°...
- Page 17 CN-E14mm CN-E20mm CN-E24mm CN-E35mm CN-E50mm T3.1 FP X T1.5 FP X T1.5 FP X T1.5 FP X T1.3 FP X Lens Mount Focal Length 35 mm 14 mm 20 mm 24 mm 50 mm Maximum T-stop 1:3.1 1:1.5 1:1.3 Iris Blades 11 pieces 35mm full size Coverage...
- Page 18 CN-E85mm CN-E135mm T1.3 L F T2.2 L F Lens Mount Focal Length 85 mm 135 mm Maximum T-stop 1:1.3 1:2.2 Iris Blades 11 pieces 35mm full size Coverage φ43.3 mm / 36.0 x 24.0 mm Image Circle / H x V (1.5:1) 23.9°...
- Page 19 Reference Information This lens is a full manual lens for shooting movies. • EF Cinema lenses were developed primarily for movie production, and have a color balance typical for movies. This means that the color reproduction is warmer (shifted toward yellow in the CCI coordinate system) than that of EF lenses which are basically used to shoot still images.
- Page 20 memo...
-
Page 21: Appendix
APPENDIX External view CN-E14mm T3.1 L F ........apx. 2 CN-E20mm T1.5 L F ........apx. 3 CN-E24mm T1.5 L F ........apx. 4 CN-E35mm T1.5 L F ........apx. 5 CN-E50mm T1.3 L F ........apx. 6 CN-E85mm T1.3 L F ........apx. 7 CN-E135mm T2.2 L F ......... -
Page 22: External View
External view CN-E14mm T3.1 L F Feet Meter View A 55.8 55.8 26.8 26.8 F.B.=44 F.B.=44 in air in air 2xM3 30ﾟ 2xM3 2xM3 （4.1） （4.1） 60ﾟ 42.2 42.2 44.3 44.3 (Unit: mm) apx. 2... -
Page 23: Cn-E20Mm T1.5 L F
CN-E20mm T1.5 L F Feet Meter View A 101.5 101.5 55.8 55.8 F.B. = 44 F.B. = 44 26.8 in air 26.8 in air 2 x M3 2 x M3 2 x M3 (4.1) (4.1) 30° 42.2 42.2 44.3 44.3 60°... -
Page 24: Cn-E24Mm T1.5 L F
CN-E24mm T1.5 L F Feet Meter 12" View A 101.5 101.5 55.8 55.8 26.8 26.8 F.B. = 44 F.B. = 44 in air in air ∞ ∞ 1. 5 1. 5 2. 8 2. 8 5. 6 5. 6 2 x M3 2 x M3 2 x M3 30°... -
Page 25: Cn-E35Mm T1.5 L F
CN-E35mm T1.5 L F Feet Meter 12" View A 101.5 101.5 55.8 55.8 26.8 26.8 F.B.=44 F.B.=44 in air in air ∞ ∞ 2×M3 2xM3 2xM3 30ﾟ （4.1） （4.1） 60ﾟ 42.2 42.2 44.3 44.3 (Unit: mm) apx. 5... -
Page 26: Cn-E50Mm T1.3 L F
CN-E50mm T1.3 L F Feet Meter 101.5 101.5 View A 55.8 55.8 26.8 26.8 F.B＝44 F.B＝44 in air in air ∞ ∞ 2×M3 2×M3 2×M3 30ﾟ （4.1） （4.1） 60ﾟ 42.2 42.2 44.3 44.3 (Unit: mm) apx. 6... -
Page 27: Cn-E85Mm T1.3 L F
CN-E85mm T1.3 L F Feet Meter 101.5 101.5 View A 55.8 55.8 26.8 26.8 F.B.=44 F.B.=44 in air in air ∞ ∞ 2xM3 2xM3 2xM3 30ﾟ (4.1) (4.1) 60ﾟ 42.2 42.2 44.3 44.3 (Unit: mm) apx. 7... -
Page 28: Cn-E135Mm T2.2 L F
CN-E135mm T2.2 L F Feet Meter VIEW A 115.6 115.6 55.8 55.8 26.8 26.8 F.B.＝44 F.B.＝44 in air in air ∞ ∞ 2×M3 2×M3 2×M3 30ﾟ （4.1） （4.1） 60ﾟ 42.2 42.2 44.3 44.3 (Unit: mm) apx. 8... -
Page 29: Cn-E14Mm T3.1 Fp X
CN-E14mm T3.1 FP X Feet Meter 47.4 47.4 19.7 19.7 F.B.=52 F.B.=52 in air in air 14.5 14.5 13.6 13.6 2×M3 2×M3 (4.1) (4.1) 33.8 33.8 30ﾟ 35.9 35.9 2×M3 60ﾟ (Unit: mm) apx. 9... -
Page 30: Cn-E20Mm T1.5 Fp X
CN-E20mm T1.5 FP X Feet Meter View A 93.5 93.5 47.7 47.7 F.B.=52 F.B.=52 in air in air 14.5 14.5 13.6 13.6 2×M3 (4.1) 2×M3 30ﾟ (4.1) 34.1 34.1 2×M3 60ﾟ 36.2 36.2 (Unit: mm) apx. 10... -
Page 31: Cn-E24Mm T1.5 Fp X
CN-E24mm T1.5 FP X Feet Meter View A 93.5 93.5 47.7 47.7 F.B.=52 F.B.=52 in air in air 14.5 14.5 13.6 13.6 2×M3 (4.1) 2×M3 30° (4.1) 34.1 (2xM3) 34.1 60° 36.2 36.2 (Unit: mm) apx. 11... -
Page 32: Cn-E35Mm T1.5 Fp X
CN-E35mm T1.5 FP X Feet Meter View A 93.5 93.5 47.9 47.9 20.2 20.2 F.B.=52 F.B.=52 in air in air 14.5 14.5 13.6 13.6 2xM3 (4.1) (4.1) 2xM3 30° (2xM3) 60° 34.3 34.3 36.4 36.4 (Unit: mm) apx. 12... -
Page 33: Cn-E50Mm T1.3 Fp X
CN-E50mm T1.3 FP X Feet Meter View A 93.5 93.5 47.8 47.8 20.1 20.1 F.B.=52 F.B.=52 in air in air 13.8 13.8 13.6 13.6 2xM3 2xM3 (4.1) (4.1) 30° 34.2 34.2 (2xM3) 60° 36.3 36.3 (Unit: mm) apx. 13... -
Page 34: Cn-E85Mm T1.3 Fp X
CN-E85mm T1.3 FP X Feet Meter 93.5 93.5 47.8 47.8 F.B.=52 F.B.=52 20.1 in air 20.1 in air 14.5 14.5 13.6 13.6 2×M3 2×M3 2×M3 (4.1) (4.1) 34.2 34.2 30ﾟ 36.3 36.3 60ﾟ (Unit: mm) apx. 14... -
Page 35: Cn-E135Mm T2.2 Fp X
CN-E135mm T2.2 FP X Feet Meter 107.6 107.6 47.8 47.8 20.1 20.1 F.B.=52 F.B.=52 in air in air 14.5 14.5 13.6 13.6 2×M3 (4.1) (4.1) 2×M3 2×M3 34.2 34.2 30ﾟ 36.3 36.3 60ﾟ (Unit: mm) apx. 15... - Page 36 CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan BT1-D012-A-ENG ©2022.10 CANON INC.
