Sealey GSA6002.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMP P OR R TA TANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
TH H E P P RO O DUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PE E RS S ON N AL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
Follow all workshop safety rules, regulations, and conditions when using wrench.

WARNING! Disconnect from air supply before changing accessories or servicing.

Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts

may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 114psi.

Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are

secure.
Only use impact sockets which are specifi cally designed for use with an impact wrench.

Wear approved safety eye/face shield, ear defenders and hand protection.

WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we

recommend you wear suitable respiratory protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

Keep children and non essential persons away from the working area.

DO NOT use the wrench for a task it is not designed to perform.

WARNING! DO NOT use wrench if damaged or thought to be faulty. Contact Service Agent.

DO NOT use wrench unless you have been instructed in its use by a qualified person.

DO NOT carry the wrench by the air hose, or yank the hose from the air supply.

DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.

DO NOT direct air from the air hose at yourself or others.

When not in use disconnect from air supply and store in a safe, dry, childproof location.

2. INTRODUCTION
Combination of composite materials, alloyed metals and twin hammer design result in a lightweight, durable and powerful air impact wrench.
Soft grip handle, with downward facing exhaust, makes this wrench comfortable on the hands and ears and limits the circulation of brake
dust on wheel applications. Fingertip control of power and direction via lever on rear of wrench. Suitable for professional garage use.
3. SPECIFICATION
Air consumption: ....................................................... 17.6cfm
Breakaway torque: ........................................650lb.ft(880Nm)
Drive: .......................................................................... 1/2"Sq
Free speed: .............................................................. 8000rpm
Inlet size: ...................................................................1/4"BSP
Maximum torque: ..........................................590lb.ft(800Nm)
Noise power: ........................................................... 105dB(A)
Noise pressure: .......................................................94dBB(A)
Operating pressure: .....................................................114psi
Vibration: .................................................................... 8.5m/s²
Uncertainty: ................................................................ 1.5m/s²
4. PREPARATION
WARNING! Ensure the air supply is clean and does not exceed 114psi while operating the wrench. Too high an air pressure and/or

unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1. AIR SUPPLY
4.1.1.
Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
4.1.2. You will require an air pressure of 114psi, and an air flow according to specification.
4.1.3. Drain the compressor air tank daily. Water in the air line will damage the wrench.
4.1.4. Clean compressor air inlet filter weekly. Recommended hook-up procedure is shown in fig.1.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should
be 1/4" I.D. and fittings must have the same inside dimensions.
© Jack Sealey Limited

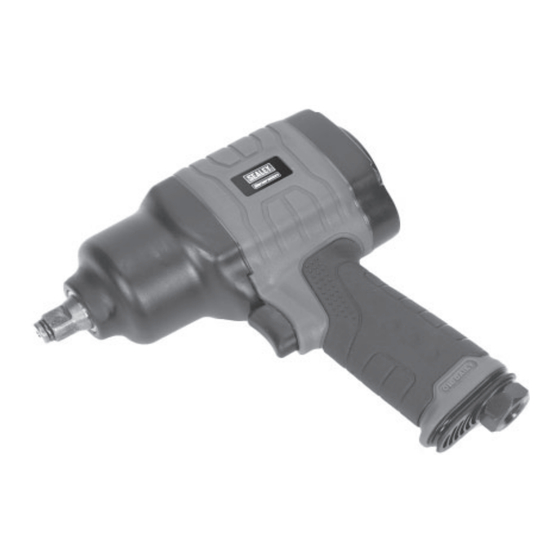

1/2"SQ DRIVE COMPOSITE AIR IMPACT
WRENCH - TWIN HAMMER
GSA6002.V2
MODEL NO:
Wear ear Wear a mask
protection
Original Language Version
Wear protective
gloves
GSA6002.V2 Issue 2 02/07/21
