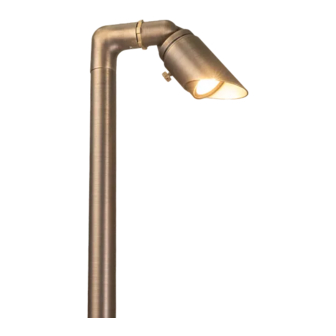

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT® Top Dog Innovator Mini Path Light ITEM: VPL-398 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Mini Dog Innovator Mini Path Light- VPL-398 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PRODUCT DIMENSIONS 3 1/4” 3.37”- 4.72” 1.65” 23” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT® Mini Dog Innovator Mini Path Light- VPL-398 INSTALL LAMP Insert the lamp (sold separately), with the correct wattage and type as marked on the luminaire label. CAUTION: Do not exceed maximum watt- age marked on luminaire label.
- Page 5 Install Luminaire to Stake Clear away an area in the ground at the wireway slot on top of the stake. Lay the luminaire pigtail into the wireway slot and screw the Stem stem onto the stake. Wireway Slot If the assembly does not look straight, adjust by pushing or Stake Pigtail...
